A Dynamic Damage Model for Uniaxial Compressive Response of AD90 Alumina

Abstract:

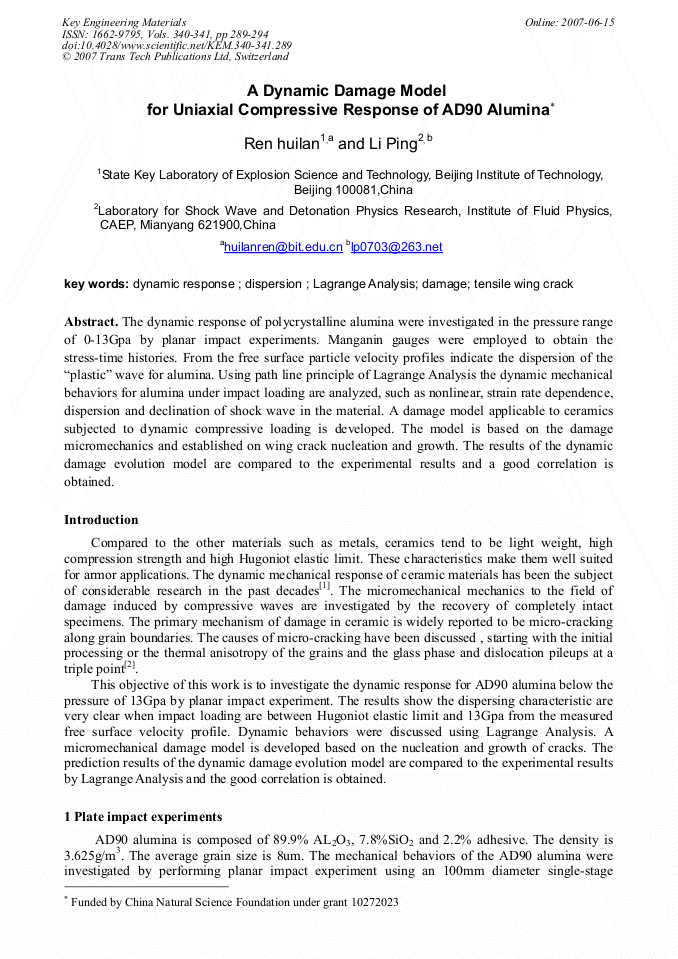

Article Preview

The dynamic response of polycrystalline alumina were investigated in the pressure range of 0-13Gpa by planar impact experiments. Manganin gauges were employed to obtain the stress-time histories. From the free surface particle velocity profiles indicate the dispersion of the “plastic” wave for alumina. Using path line principle of Lagrange Analysis the dynamic mechanical behaviors for alumina under impact loading are analyzed, such as nonlinear, strain rate dependence, dispersion and declination of shock wave in the material. A damage model applicable to ceramics subjected to dynamic compressive loading is developed. The model is based on the damage micromechanics and established on wing crack nucleation and growth. The results of the dynamic damage evolution model are compared to the experimental results and a good correlation is obtained.

Info:

Periodical:

Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara

Pages:

289-294

Citation:

H. L. Ren and P. Li, "A Dynamic Damage Model for Uniaxial Compressive Response of AD90 Alumina", Key Engineering Materials, Vols. 340-341, pp. 289-294, 2007

Online since:

June 2007

Authors:

Export:

Price:

$38.00

[1] A. M. Rajendran, W. H. Cook, AD-A203477, (1989).

[2] H.D. Espinosa,G. Raiser:J. Hard materials, Vol. 3(1992), p.285.

[3] S. Nemat-nasser and H. Horri: Journal of Geophysical research, Vol. B4(1985), p.3105.

[4] Ning Jianguo, Huang Zhuping: Progress in Natural Science , Vol. 8(1998), p.473.

[5] G. Ravichandran and G. Subhash: Int.J. Solides Structures, Vol. 32(1995), p.2627.

[6] Ning Jianguo, Song Weidong and Yang Guitong: International Journal of Impact Engineering, Vol. 32(2006), p.1464.

[7] Ning Jianguo, Huang Zhuping and Hao Jiufeng: Key Engineering Materials, Vol. 177-180 (2000), p.381.
