EBSD-AFM Hybrid Analysis of Crack Initiation in Stainless Steel under Fatigue Loading

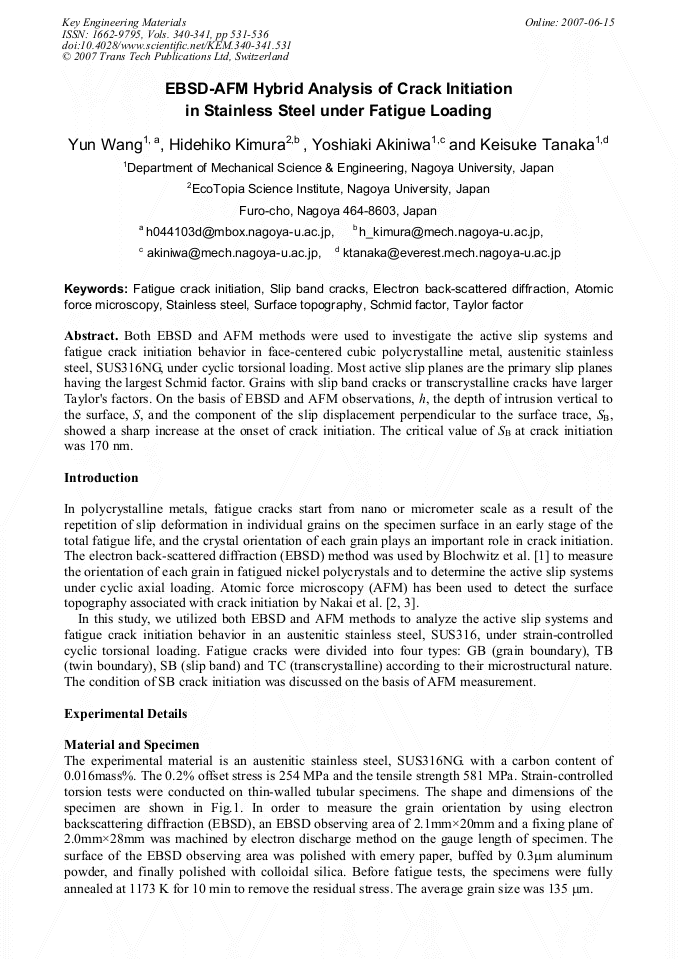

Article Preview

Both EBSD and AFM methods were used to investigate the active slip systems and fatigue crack initiation behavior in face-centered cubic polycrystalline metal, austenitic stainless steel, SUS316NG, under cyclic torsional loading. Most active slip planes are the primary slip planes having the largest Schmid factor. Grains with slip band cracks or transcrystalline cracks have larger Taylor's factors. On the basis of EBSD and AFM observations, h, the depth of intrusion vertical to the surface, S, and the component of the slip displacement perpendicular to the surface trace, SB, showed a sharp increase at the onset of crack initiation. The critical value of SB at crack initiation was 170 nm.



Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara




Y. Wang et al., "EBSD-AFM Hybrid Analysis of Crack Initiation in Stainless Steel under Fatigue Loading", Key Engineering Materials, Vols. 340-341, pp. 531-536, 2007

Online since:

June 2007




[1] Blochwitz, C. and Tirschler, W., Influence of texture on twin boundary cracks in fatigue austenitic stainless steel, Material Science and Engineering, Vol. A339 (2003), pp.318-327.

DOI: https://doi.org/10.1016/s0921-5093(02)00126-0

[2] Nakai, Y., Evaluation of fatigue damage and fatigue crack initiation process by means of atomic-force microscopy, Material Science Research International, Vol. 7, No. 2 (2001), pp.73-81.

[3] Nakai, Y. and Maeda, K., Observation of fatigue slip-band growth and crack initiation in a-brass under cyclic shear stresses by means of atomic-force microscopy, J. Materials Science, Japan, Vol. 52, No. 6 (2003), pp.625-630.

DOI: https://doi.org/10.2472/jsms.52.625

[4] Taylor, G. I., Plastic strain in metals, J. Inst. Metals, 62, (1938) pp.307-324. Fig. 8. Analysis on SB and TC cracking with Taylor factor. (N=7800).
