Numerical and Experimental Approach for Rectangular Cup of Li-Ion Battery Container with Extreme Aspect Ratio

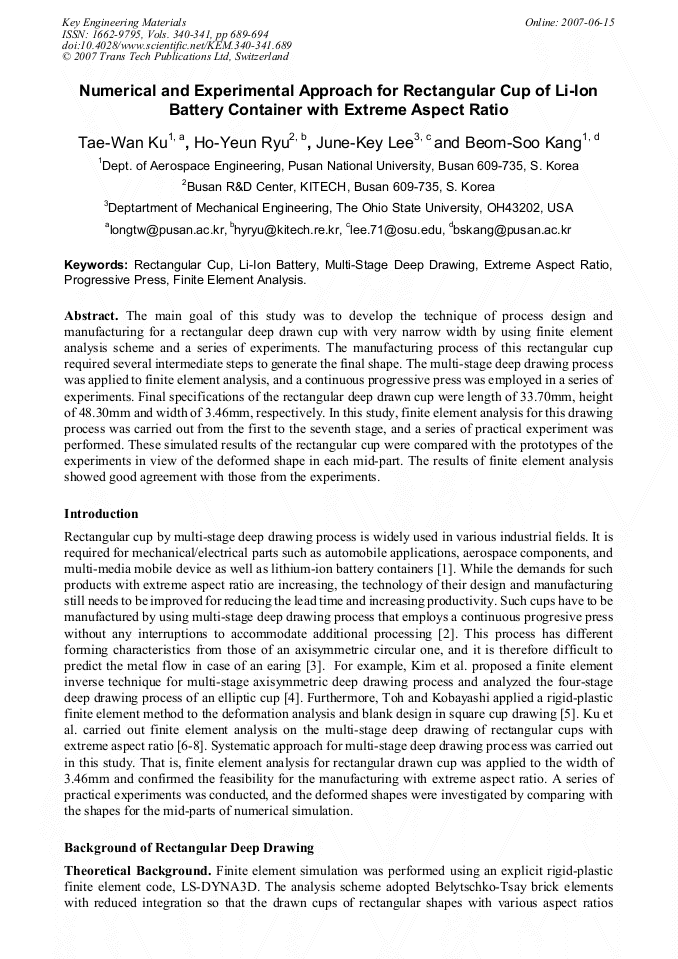

Article Preview

The main goal of this study was to develop the technique of process design and manufacturing for a rectangular deep drawn cup with very narrow width by using finite element analysis scheme and a series of experiments. The manufacturing process of this rectangular cup required several intermediate steps to generate the final shape. The multi-stage deep drawing process was applied to finite element analysis, and a continuous progressive press was employed in a series of experiments. Final specifications of the rectangular deep drawn cup were length of 33.70mm, height of 48.30mm and width of 3.46mm, respectively. In this study, finite element analysis for this drawing process was carried out from the first to the seventh stage, and a series of practical experiment was performed. These simulated results of the rectangular cup were compared with the prototypes of the experiments in view of the deformed shape in each mid-part. The results of finite element analysis showed good agreement with those from the experiments.



Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara




T. W. Ku et al., "Numerical and Experimental Approach for Rectangular Cup of Li-Ion Battery Container with Extreme Aspect Ratio", Key Engineering Materials, Vols. 340-341, pp. 689-694, 2007

Online since:

June 2007




[1] S.K. Esche, M.A. Ahmetoglu, G.L. Kinzel and T. Altan: Numerical and Experimental Investigation of Redrawing of Sheet Metals, J. Mater. Proc. Tech., Vol. 98(2000), 17-24.

DOI: 10.1016/s0924-0136(99)00301-5

[2] L.F. Menezes and C. Teodosiu: Three-Dimensional Numerical Simulation of the Deep-Drawing Process using Solid Finite Elements, J. Mater. Proc. Tech., Vol. 97(2000), pp.100-106.

DOI: 10.1016/s0924-0136(99)00345-3

[3] S.D. Kim, M.H. Park, S.J. Kim and D.G. Seo: Blank Design and Formability for Non-Circular Deep Drawing Processes by the Finite-Element Method, J. Mater. Proc. Tech., Vol. 75(1998), pp.94-99.

DOI: 10.1016/s0924-0136(97)00297-5

[4] S.H. Kim, S.H. Kim and H. Huh: Finite Element Inverse Analysis for the Design of Intermediate Dies in Multi-Stage Deep-Drawing Processes with Large Aspect Ratio, J. Mater. Proc. Tech., Vol. 113(2001), pp.779-785.

DOI: 10.1016/s0924-0136(01)00660-4

[5] C.H. Toh and S. Kobayashi: Deformation Analysis and Blank Design in Square Cup Drawing, Int. J. Mach. Tool Des. Res., Vol. 25(1985), pp.15-32.

DOI: 10.1016/0020-7357(85)90054-x

[6] T.W. Ku, B.K. Ha, W.J. Song, B.S. Kang and S.M. Hwang: Finite Element Analysis of Multi-Stage Deep Drawing Process for High-Precision Rectangular Case with Extreme Aspect Ratio, J. Mater. Proc. Tech., Vol. 130-131(2002), pp.128-134.

DOI: 10.1016/s0924-0136(02)00737-9

[7] T.W. Ku and B.S. Kang: Process Design and FE Analysis of Multi-Stage Rectangular Deep Drawing with Extreme Aspect Ratio, Key Eng. Mater., Vol. 274-276(2004), pp.427-432.

DOI: 10.4028/

[8] C.S. Park, T.W. Ku, B.S. Kang and S.M. Hwang: Process Design and Blank Modification in the Multistage Rectangular Deep Drawing of an Extreme Aspect Ratio, J. Mater. Proc. Tech., Vol. 153-154(2004), pp.778-784.

DOI: 10.1016/j.jmatprotec.2004.04.306

[9] D.P. Flanagan and T. Belytschko: A Uniform Strain Hexahedron and Quadrilateral with Orthogonal Hourglass Control, Int. J. Num. Meth. Eng., Vol. 17(1981), pp.679-706.

DOI: 10.1002/nme.1620170504
