The 3D Modeling of Dies Based on UG and Numerical Simulation of the Heat Rheological Forming of Titanium Alloy Vane Disk

Abstract:

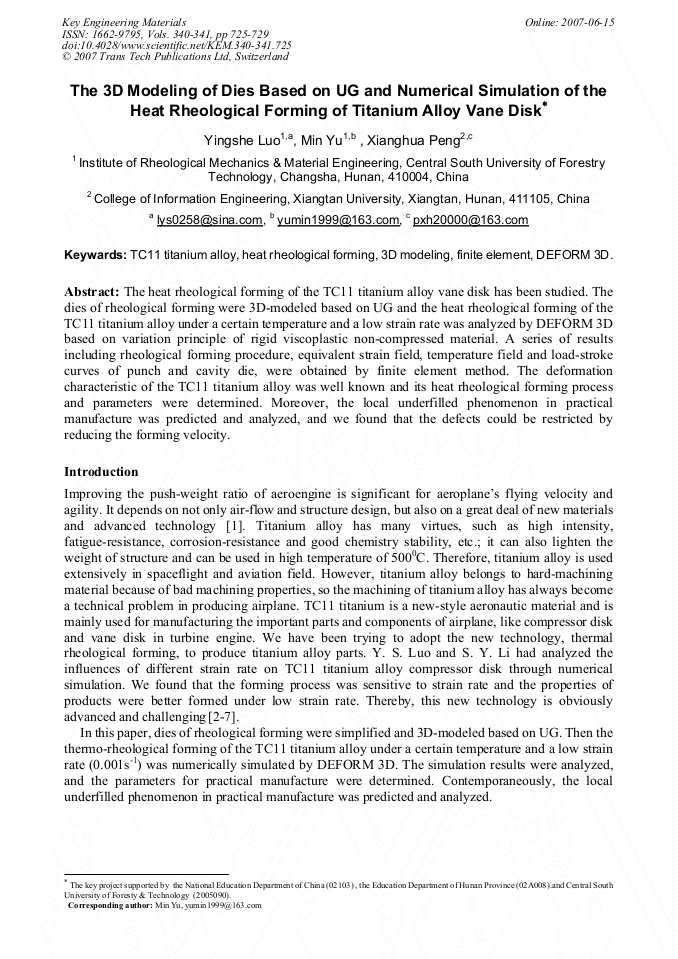

Article Preview

The heat rheological forming of the TC11 titanium alloy vane disk has been studied. The dies of rheological forming were 3D-modeled based on UG and the heat rheological forming of the TC11 titanium alloy under a certain temperature and a low strain rate was analyzed by DEFORM 3D based on variation principle of rigid viscoplastic non-compressed material. A series of results including rheological forming procedure, equivalent strain field, temperature field and load-stroke curves of punch and cavity die, were obtained by finite element method. The deformation characteristic of the TC11 titanium alloy was well known and its heat rheological forming process and parameters were determined. Moreover, the local underfilled phenomenon in practical manufacture was predicted and analyzed, and we found that the defects could be restricted by reducing the forming velocity.

Info:

Periodical:

Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara

Pages:

725-729

Citation:

Y. S. Luo et al., "The 3D Modeling of Dies Based on UG and Numerical Simulation of the Heat Rheological Forming of Titanium Alloy Vane Disk", Key Engineering Materials, Vols. 340-341, pp. 725-729, 2007

Online since:

June 2007

Export:

Price:

$38.00

[1] Y. G. Hu, Y. S. Luo, et al., Numercal simulation of rheological warm extrusion molding of missile shell. Forging technology, Vol. 25(1) (2000), pp.10-12.

[2] S. Y. Li, Y. S. Luo, S.W. Li, X. H. Xu, J. L. Zhou: The numerical simulation and its application on the rheological forming of the TC11 titanium alloy disk, Hot working technology, No. 1 (2001), pp.22-25.

[3] Y. S. Luo, K.W. Luo, Y. G. Hu, Theory and practice on metal's rheological forming. Forging technology, Vol. 22(4) (1997), pp.11-13.

[4] Y.S. Luo, X. G. Guo, Y. F. Mei, Y. G. Hu. Dislocation evolution with rheological forming of metal. Trans Nonferrous Met. Soc. China, Vol. 9(3) (1999), pp.623-628.

[5] Y. S. Luo, The survey in researching and prospect on metal processing rheology, Proc. of XШth international congress of rheology, Cambridge, UK, Vol. 3 (2000), pp.406-408.

[6] Y. S. Luo, K. Dohda and Z. Wang, Experimental Solution for Viscosity Coefficient of Solid Alloy Material, Int. J. of Applied Mechanics and Engineering, Vol. 8 (2003), pp.271-276.

[7] Y. S. Luo, F. Liu and Y. Liu, et al., The Numerical Simulation and Mechanics Analysis for Deep-Draw Thermal-rheological Forming of One Ti Alloy Rectification Internal Hood, Key Engineering Material, Vols. 274-276(2004) pp.721-726.

DOI: https://doi.org/10.4028/www.scientific.net/kem.274-276.721

[8] J. S. Liu, H. Q. Chen, X. X. Guo, The Finite Element Simulation technology of Metal' Plastic Process and Its Application, Metallurgy Industry Press, Beijing, (2003).

[9] G. C. Wang, G. Q. Zhao, S. S. Xie, Y. G. Luan, Numerical and experimental study on new cole precision forging technique of spur gears, Trans. Nonferrous Met. Soc., vol. 13(2003), pp.798-802.
