An Anisotropic Constitutive Model for a Directionally Solidified Superalloy

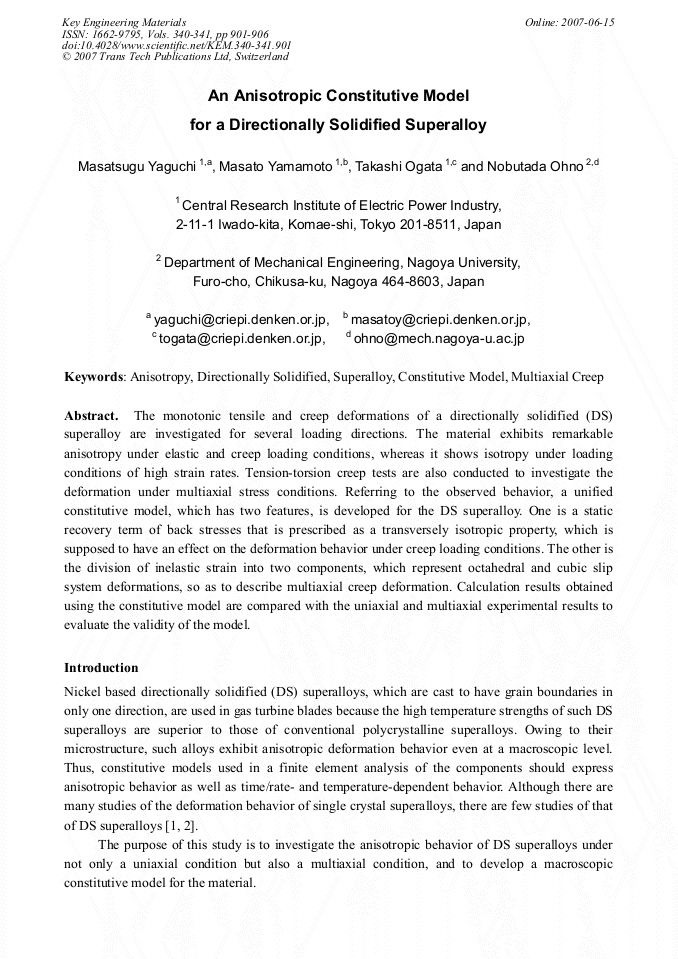

Article Preview

The monotonic tensile and creep deformations of a directionally solidified (DS) superalloy are investigated for several loading directions. The material exhibits remarkable anisotropy under elastic and creep loading conditions, whereas it shows isotropy under loading conditions of high strain rates. Tension-torsion creep tests are also conducted to investigate the deformation under multiaxial stress conditions. Referring to the observed behavior, a unified constitutive model, which has two features, is developed for the DS superalloy. One is a static recovery term of back stresses that is prescribed as a transversely isotropic property, which is supposed to have an effect on the deformation behavior under creep loading conditions. The other is the division of inelastic strain into two components, which represent octahedral and cubic slip system deformations, so as to describe multiaxial creep deformation. Calculation results obtained using the constitutive model are compared with the uniaxial and multiaxial experimental results to evaluate the validity of the model.



Key Engineering Materials (Volumes 340-341)

Edited by:

N. Ohno and T. Uehara




M. Yaguchi et al., "An Anisotropic Constitutive Model for a Directionally Solidified Superalloy", Key Engineering Materials, Vols. 340-341, pp. 901-906, 2007

Online since:

June 2007




[1] T. Hasebe, M. Sakane and M. Ohnami, Trans. ASME, JEMT Vol. 114, pp.141-146, (1992).

[2] N. Ohno, T. Mizuno, H. Kawaji and I. Okada, Acta metall. mater., Vol. 40, pp.559-567, (1992).

[3] M. Yaguchi and T. Ogata, CRIEPI Report, Q05009, (2006).

[4] M. Yaguchi and E. P. Busso, Int. J. Solids Struct., Vol. 42, pp.1073-1089, (2005).

[5] J. L. Chaboche, in Unified Constitutive Laws of Plastic Deformation, edited by Krausz and Krausz, Academic Press, pp.1-68, (1996).
