Microstructure and Biocompatibility of Gradient Bioceramic Composite Coating Fabricated by Wide-Band Laser Cladding

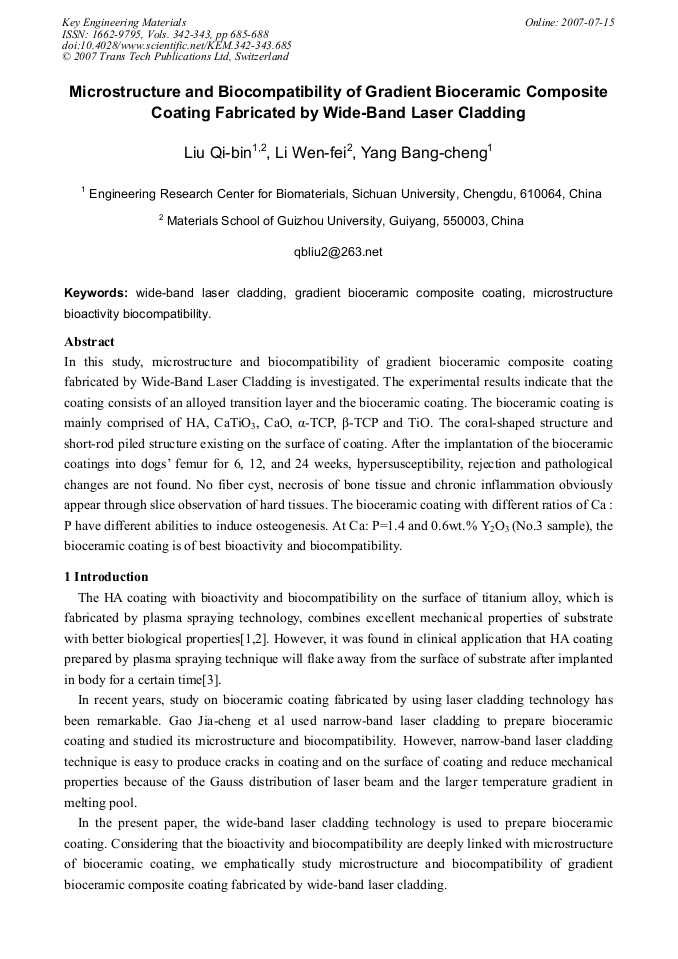

Article Preview

In this study, microstructure and biocompatibility of gradient bioceramic composite coating fabricated by Wide-Band Laser Cladding is investigated. The experimental results indicate that the coating consists of an alloyed transition layer and the bioceramic coating. The bioceramic coating is mainly comprised of HA, CaTiO3, CaO, α-TCP, β-TCP and TiO. The coral-shaped structure and short-rod piled structure existing on the surface of coating. After the implantation of the bioceramic coatings into dogs’ femur for 6, 12, and 24 weeks, hypersusceptibility, rejection and pathological changes are not found. No fiber cyst, necrosis of bone tissue and chronic inflammation obviously appear through slice observation of hard tissues. The bioceramic coating with different ratios of Ca : P have different abilities to induce osteogenesis. At Ca: P=1.4 and 0.6wt.% Y2O3 (No.3 sample), the bioceramic coating is of best bioactivity and biocompatibility.



Key Engineering Materials (Volumes 342-343)

Edited by:

Young-Ha Kim, Chong-Su Cho, Inn-Kyu Kang, Suk Young Kim and Oh Hyeong Kwon






Q. B. Liu et al., "Microstructure and Biocompatibility of Gradient Bioceramic Composite Coating Fabricated by Wide-Band Laser Cladding", Key Engineering Materials, Vols. 342-343, pp. 685-688, 2007

Online since:

July 2007




[1] Zheng Xuebin, Ding Chuanxian (2000)Journal of inorganic Materials(In Chinese), 15: 897-902.

[2] Wang Yingjun, Ling Chengyun, Chen Kai, et al (1998) Journal of inorganic materials (In Chinese), 13: 529-533.

[3] Zhang Yapin, Gao Jiacheng, Wen Jing (1998) Metal Heat Treatment (In Chinese), 10: 18-20.

[4] Liu Qibin, Zou Longjiang, Dong Chuang, et al (2005) Rare Earths, 23: 446-450.
