Acoustic and Optical Monitoring of High-Power CO2 Laser Cutting


Article Preview

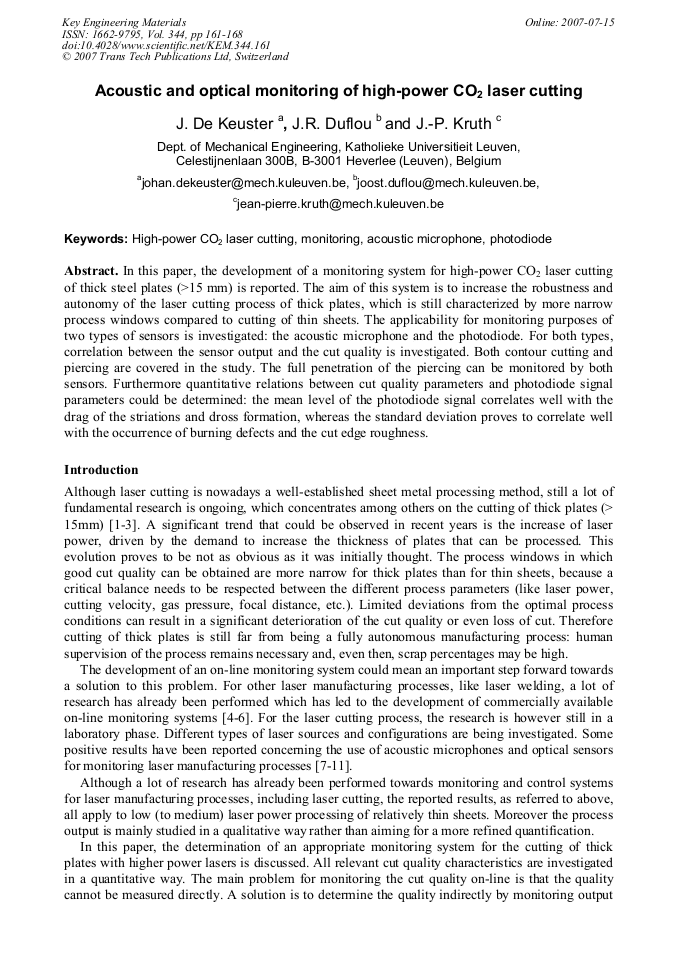

In this paper, the development of a monitoring system for high-power CO2 laser cutting of thick steel plates (>15 mm) is reported. The aim of this system is to increase the robustness and autonomy of the laser cutting process of thick plates, which is still characterized by more narrow process windows compared to cutting of thin sheets. The applicability for monitoring purposes of two types of sensors is investigated: the acoustic microphone and the photodiode. For both types, correlation between the sensor output and the cut quality is investigated. Both contour cutting and piercing are covered in the study. The full penetration of the piercing can be monitored by both sensors. Furthermore quantitative relations between cut quality parameters and photodiode signal parameters could be determined: the mean level of the photodiode signal correlates well with the drag of the striations and dross formation, whereas the standard deviation proves to correlate well with the occurrence of burning defects and the cut edge roughness.



Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini




J. De Keuster et al., "Acoustic and Optical Monitoring of High-Power CO2 Laser Cutting", Key Engineering Materials, Vol. 344, pp. 161-168, 2007

Online since:

July 2007
