Computer Aided Modeling of Deep-Drawing

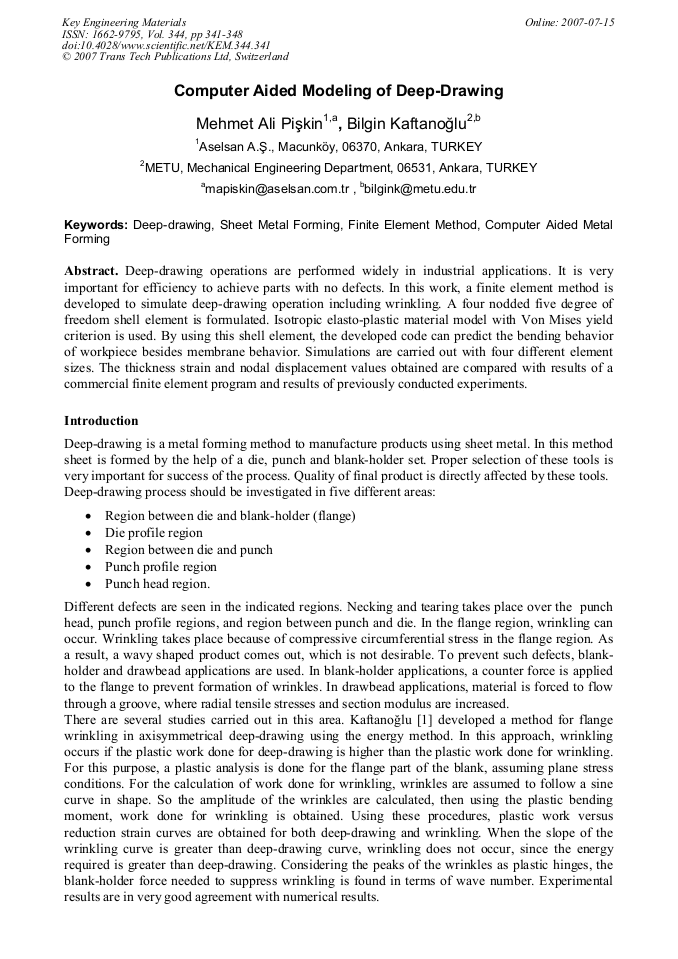

Article Preview

Deep-drawing operations are performed widely in industrial applications. It is very important for efficiency to achieve parts with no defects. In this work, a finite element method is developed to simulate deep-drawing operation including wrinkling. A four nodded five degree of freedom shell element is formulated. Isotropic elasto-plastic material model with Von Mises yield criterion is used. By using this shell element, the developed code can predict the bending behavior of workpiece besides membrane behavior. Simulations are carried out with four different element sizes. The thickness strain and nodal displacement values obtained are compared with results of a commercial finite element program and results of previously conducted experiments.



Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini




M. A. Pişkin and B. Kaftanoğlu, "Computer Aided Modeling of Deep-Drawing", Key Engineering Materials, Vol. 344, pp. 341-348, 2007

Online since:

July 2007




[1] Kaftanoğlu B.: Proceedings of the 21st International Machine Tool Design and Research Conference (1980), pp.21-28.

[2] . Darendeliler H., Kaftanoğlu B.: Annals of the CIRP, Vol. 40/1/1991 (1991), pp.281-284.

[3] Ramaekers J.A.H., de Winter A., Kessels M.W.H.: IDDRG'94 (1994), pp.403-412.

[4] Cao J.: Journal of Applied Mechanics, Vol. 66 (September 1999), pp.646-652.

[5] Cao J., Boyce M.C.: Transactions of the ASME, Vol. 119 (October 1997), pp.354-365.

[6] Bathe K.J.: Finite Element Procedures in Engineering Analysis (Prentice-Hall Inc., 1982).

[7] Johnson W., Mellor P.B.: Engineering Plasticity (Ellis Horwood Ltd., 1983).

[8] Şenalp A. Z: Computer-Aided Wrinkling Analysis of Non-Axisymmetric Parts in Sheet Metal Forming, (Ph. D Thesis, Middle East Technical University, Mechanical Engineering Department, Ankara, May 1998).

[9] Kawka M., Olejnik L., Rosochowski A., Sunaga H., Makinouchi A.: Journal of Materials Processing Technology, Vol. 109 (2001), pp.283-289.

DOI: 10.1016/s0924-0136(00)00813-x

[10] Lejeune A., Boudeau N., Gelin J.C.: Proceedings of the 5th International Conference and Workshop on Numerical Simulation of 3D Sheet Forming Processes, Vol. 1 (2002), pp.549-555.

[11] Weili X., Huibao W., Yuying Y., Wang Z.R.: Journal of Materials Processing Technology, Vol. 121 (2002), pp.19-22.

[12] Chu E., Xu Y.: International Journal of Mechanical Sciences, Vol. 43 (2001), pp.1421-1440.

[13] Nordlund P., Häggblad B.: International Journal for Numerical Methods in Engineering, Vol. 40 (1997), pp.4079-4095.

[14] Lee C., Cao J.: International Journal for Numerical Methods in Engineering, Vol. 50 (2001), pp.681-706.
