Multi Shape Sheet Hydroforming Tooling Design

Abstract:

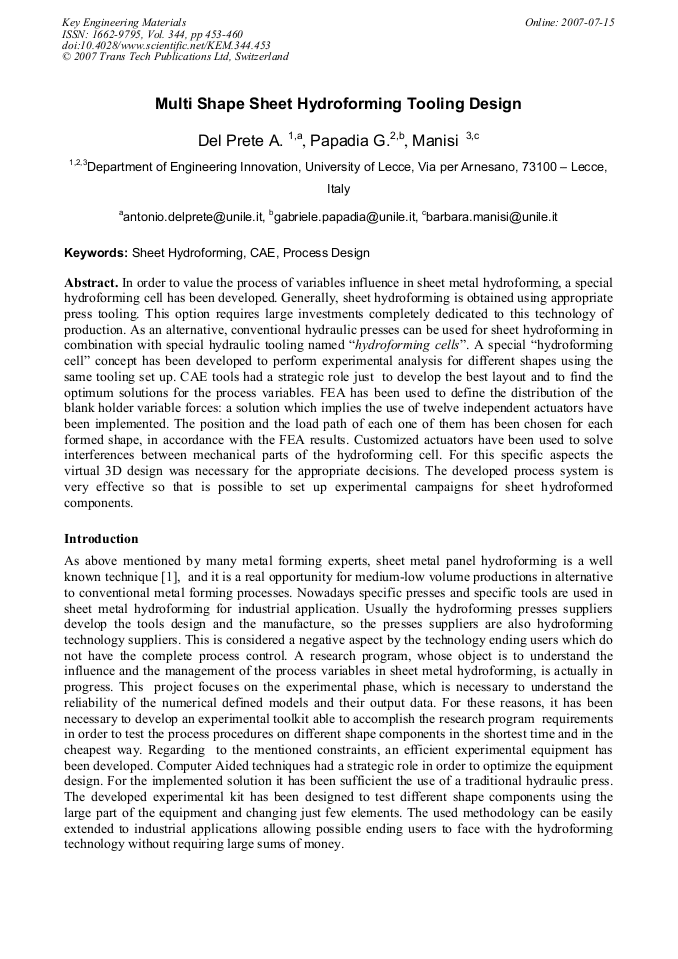

Article Preview

In order to value the process of variables influence in sheet metal hydroforming, a special hydroforming cell has been developed. Generally, sheet hydroforming is obtained using appropriate press tooling. This option requires large investments completely dedicated to this technology of production. As an alternative, conventional hydraulic presses can be used for sheet hydroforming in combination with special hydraulic tooling named “hydroforming cells”. A special “hydroforming cell” concept has been developed to perform experimental analysis for different shapes using the same tooling set up. CAE tools had a strategic role just to develop the best layout and to find the optimum solutions for the process variables. FEA has been used to define the distribution of the blank holder variable forces: a solution which implies the use of twelve independent actuators have been implemented. The position and the load path of each one of them has been chosen for each formed shape, in accordance with the FEA results. Customized actuators have been used to solve interferences between mechanical parts of the hydroforming cell. For this specific aspects the virtual 3D design was necessary for the appropriate decisions. The developed process system is very effective so that is possible to set up experimental campaigns for sheet hydroformed components.

Info:

Periodical:

Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini

Pages:

453-460

Citation:

A. del Prete et al., "Multi Shape Sheet Hydroforming Tooling Design", Key Engineering Materials, Vol. 344, pp. 453-460, 2007

Online since:

July 2007

Export:

Price:

$38.00

[1] K. Siegert, M. Häussermann, B. Lösch, R. Rieger: Recents developments in hydroforming technology, Journal of Materials Processing Technology 98 (2000), pp.251-258.

DOI: https://doi.org/10.1016/s0924-0136(99)00206-x

[2] Siegert, Aust et al: New 20. 000 kN Sheet Hydroforming Press at the IFU, Hydroforming of Tubes, Extrusions and Sheet Metals - Volume 2 (2001), pp.107-133.

[3] Kleiner, Homberg: New 100. 000 kN Press for Sheet Metal Hydroforming, Hydroforming of Tubes, Extrusions and Sheet Metals - Volume 2 (2001), pp.351-362.

[4] Rösen, Schawarz, Birkert, Schneider: Hydroforming for the Automobile Industry, Hydroforming of Tubes, Extrusions and Sheet Metals - Volume 2 (2001), pp.135-157.

[5] L. Shulkin, R. Posteraro, M. Ahmetoglu, G. Kinzel, T. Altan: Blank holder force (BHF) control in viscous pressure forming (VPF) of sheet metal, Journal of Materials Processing Technology 98 (2000), pp.7-16.

DOI: https://doi.org/10.1016/s0924-0136(99)00300-3

[6] M. Geiger, P. Hein: Prediction and Control of the Draw-in of Hydroformed Sheet Metal Pairs, Annals of the German Academic Society for Production Engineering, ed., German Academic Society for Production Engineering, volume VI/1, 33 - 38, (1999).

[7] http: /www. icosystems. it/cilindri. htm.

[8] M. Kleiner, W. Homberg, and A. Brosius: Processes and Control of Sheet Metal Hydroforming, in proceedings from the 6th ICTP, Nürnberg, Sept. 19-24 (1999), pp.1243-1252.

[9] R. Deventer, H. Niemann, M. Celeghini: Control of a Hydroforming Press with Bayesian Method, European Conference on Artificial Intelligence2004, IOS Press (2004), pp.251-255.
