Experimental Evidences Concerning Geometrical Accuracy after Unclamping and Trimming Incrementally Formed Components

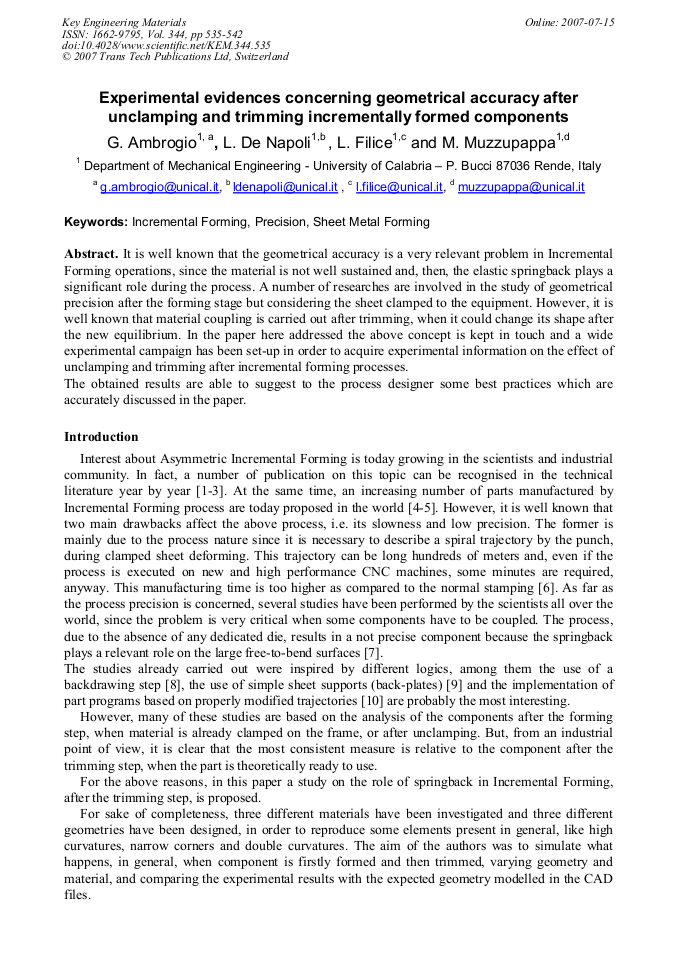

Article Preview

It is well known that the geometrical accuracy is a very relevant problem in Incremental Forming operations, since the material is not well sustained and, then, the elastic springback plays a significant role during the process. A number of researches are involved in the study of geometrical precision after the forming stage but considering the sheet clamped to the equipment. However, it is well known that material coupling is carried out after trimming, when it could change its shape after the new equilibrium. In the paper here addressed the above concept is kept in touch and a wide experimental campaign has been set-up in order to acquire experimental information on the effect of unclamping and trimming after incremental forming processes. The obtained results are able to suggest to the process designer some best practices which are accurately discussed in the paper.



Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini




G. Ambrogio et al., "Experimental Evidences Concerning Geometrical Accuracy after Unclamping and Trimming Incrementally Formed Components", Key Engineering Materials, Vol. 344, pp. 535-542, 2007

Online since:

July 2007




[1] T. J. Kim, D. Y. Yang, Improvement of formability for the incremental sheet metal forming process, Int. J. of Mechanical Science, vol. 42, 2000, 1271-1286.

DOI: https://doi.org/10.1016/s0020-7403(99)00047-8

[2] G. Hirt,J. Ames, M. Bambach, R. Kopp, Forming Strategies and Process Modelling for CNC incremental Sheet Forming, Annals of CIRP 52-1, 2004, 203-206.

DOI: https://doi.org/10.1016/s0007-8506(07)60679-9

[3] J. Jeswiet, F. Micari, G. Hirt, A. Bramley, J. Duflou, J. Allwood, Asymmetric Single Point Incremental Forming of Sheet Metal, Annals of the CIRP, 54/1, 2005, 623-649.

DOI: https://doi.org/10.1016/s0007-8506(07)60021-3

[4] J. Jeswiet, E. Hagan, Rapid Proto-typing of a Headlight with Sheet Metal, in Proc. of Shemet, 2001, 165-170.

[5] G. Ambrogio, L. De Napoli, L. Filice, F. Gagliardi, M. Muzzupappa, Application of Incremental Forming process for high customised medical product manufacturing, International Journal of Materials Procesind Technology, vol. 162-163, 2005, 156-162.

DOI: https://doi.org/10.1016/j.jmatprotec.2005.02.148

[6] G. Ambrogio, R. Di Lorenzo, F. Micari, Analysis of the economical effectiveness of the Incremental Forming Processes: an industrial case study, Proc. of 6th A.I. Te.M. Conference, 2003, 8-10 September 2003, Gaeta (Italy). Proceedings on a CD.

[7] G. Hirt, S. Junk, N. Witulski, Incremental sheet forming: quality evaluation and process simulation, Proc. of 7th ICTP, 2002, October 27 th - November 1st, Yokohama (Japan), 925-930.

[8] G. Ambrogio, L. De Napoli, L. Filice and M. Muzzupappa, Rapid prototyping of a steering wheel by using backdrawing incremental forming technique, Proc. of AMPT Conference, 2006, Jul 30-Aug 3, Las Vegas (USA). Proceedings on a CD.

[9] M. Bambach, G. Hirt, J. Ames, Modeling of optimization strategies in the incremental CNC sheet metal forming, Proc. of 8th NUMIFORM Conference, 2004, June 13-17, Columbus/Ohio (USA). Proceeding on a CD.

DOI: https://doi.org/10.1063/1.1766822

[10] G. Ambrogio, L. Filice, L. De Napoli and M. Muzzupappa, A simple approach for reducing profile diverting in a single point incremental forming process, Journal of Engineering Manufacture - Part B, vol. 219, 2004, 823 - 830.

DOI: https://doi.org/10.1243/095440505x32797

[11] A. Forcellese, L. Fratini, F. Gabrielli, F. Micari, The evaluation of springback in 3D and coining processes, J. of Materials Processing Technology, vol. 80-81, 1998, 108-112.

DOI: https://doi.org/10.1016/s0924-0136(98)00136-8

[12] T. Varady, R. Martin, J. Cox, Reverse engineering of geometric models - an introduction, Computer-Aided Design, vol. 29/4, 1997, 255-268.

DOI: https://doi.org/10.1016/s0010-4485(96)00054-1
