Study of New Joining Technique: Flat Clinching

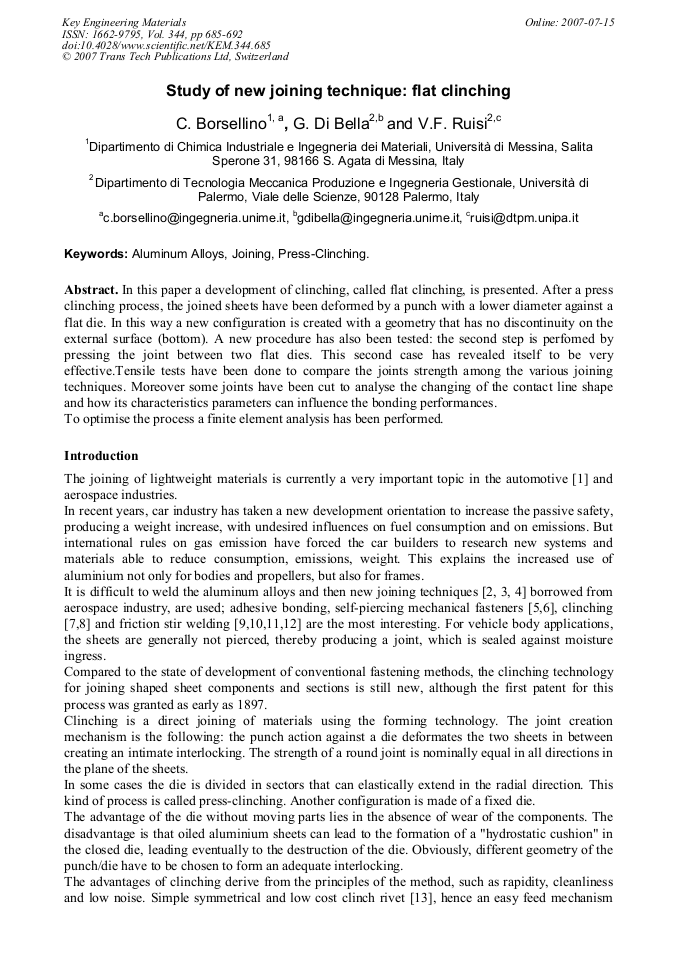

Article Preview

In this paper a development of clinching, called flat clinching, is presented. After a press clinching process, the joined sheets have been deformed by a punch with a lower diameter against a flat die. In this way a new configuration is created with a geometry that has no discontinuity on the external surface (bottom). A new procedure has also been tested: the second step is perfomed by pressing the joint between two flat dies. This second case has revealed itself to be very effective.Tensile tests have been done to compare the joints strength among the various joining techniques. Moreover some joints have been cut to analyse the changing of the contact line shape and how its characteristics parameters can influence the bonding performances. To optimise the process a finite element analysis has been performed.



Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini




C. Borsellino et al., "Study of New Joining Technique: Flat Clinching", Key Engineering Materials, Vol. 344, pp. 685-692, 2007

Online since:

July 2007




[1] W.S. Miller, L. Zhuang, J. Bottega, A.J. Witterbrood, P. De Smet, A. Haszler, A. Vieregge: Materials Science and Engineering A280 (2000), pp.37-49.

[2] W. Voelkner: Journal of Materials Processing Technology 106 (2000), pp.236-242.

[3] T. A Barnes, Pashby: Journal of Material Processing Technology 99 (2000), pp.72-79.

[4] G. Blount, D. Carle, The suitability of aluminium as an alternative material for car bodies, Materials and Design 20 (1999), pp.267-272.

DOI: 10.1016/s0261-3069(99)00003-5

[5] C. Borsellino, G. Buffa, L. Fratini, V. F. Ruisi: Proc: ISOMA - World Automation Congress on Manufacturing with Applications (2004).

[6] C. Borsellino, E. Lo Valvo, M. Piacentini, V. F. Ruisi: Proc. 4th CIRP Inter. Seminary on Intelligence Computation on Manufactory Engineering - ICME'04 (2004), pp.311-315.

[7] J.P. Varis: Thin-Walled Structures 40 (2002), pp.225-238.

[8] C. Borsellino, G. Di Bella, E. Lo Valvo, M. Piacentini, V. F. Ruisi: LAMIERA (2003), 272-278.

[9] R. Lennon, R. Pedreschi, B.P. Sinh: Construction and Building Materials 13 (1999), pp.109-116.

[10] S.T. Riches, S.A. Westgate, E.D. Nicholas, H.J. Powell: Proc. Materials for Lean Weight Vehicles Conference (1995), pp.137-146.

[11] H.J. Liu, H. Fujii, M. Maeda, K. Nogi: Journal of Mat. Proc. Tech. 142 (2003), pp.692-696.

[12] L. Cederqvist, A. P. Reynolds: Proc. 2nd Int. Symposium on Friction Stir Welding (2000).

[13] J.K. Larsson: Proc. International Conference on Body Engineering, Advanced Technologies and Processes 10 (1994), pp.140-145.

[14] J. Varis: Journal of Materials Processing Technology 174 (2006), pp.277-285.

[15] V. Hamel, J.M. Roelandt, J.N. Gacel, F. Schmit: Computers and Structures 77 (2000), 185-200.

[16] C. Pietrapertosa, L. Zhang, A.M. Habraken, J.P. Jaspart: Proc. 6th Int. ESAFORM Conference on Material Forming (2003) pp.351-354.
