Investigation on the Residual Stress of AISI 4047 Low Alloy Steel Laser Welded

Abstract:

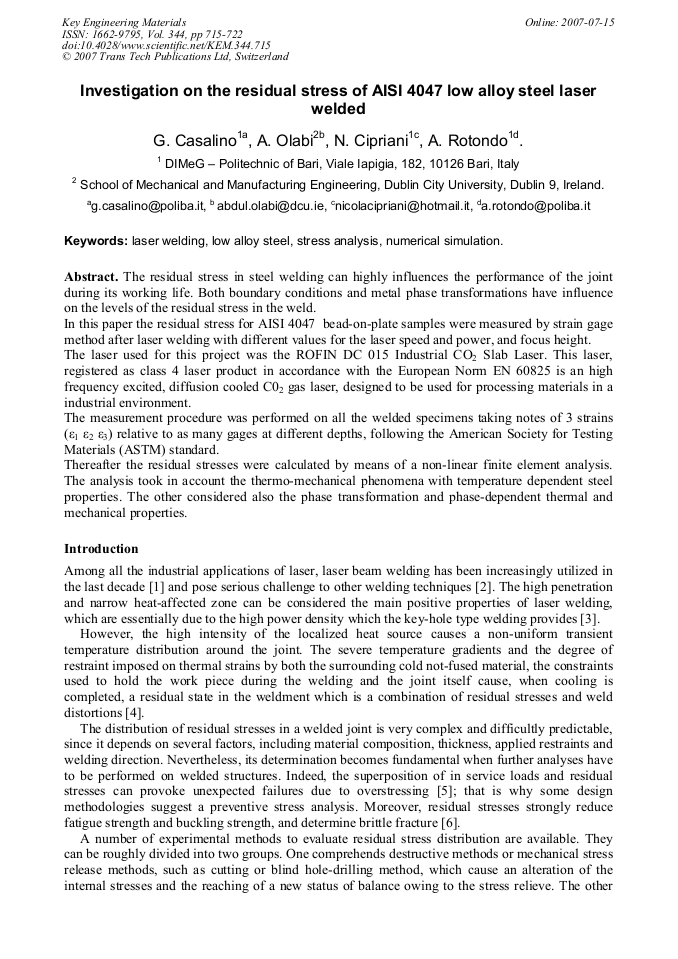

Article Preview

The residual stress in steel welding can highly influences the performance of the joint during its working life. Both boundary conditions and metal phase transformations have influence on the levels of the residual stress in the weld. In this paper the residual stress for AISI 4047 bead-on-plate samples were measured by strain gage method after laser welding with different values for the laser speed and power, and focus height. The laser used for this project was the ROFIN DC 015 Industrial CO2 Slab Laser. This laser, registered as class 4 laser product in accordance with the European Norm EN 60825 is an high frequency excited, diffusion cooled C02 gas laser, designed to be used for processing materials in a industrial environment. The measurement procedure was performed on all the welded specimens taking notes of 3 strains (ε1 ε2 ε3) relative to as many gages at different depths, following the American Society for Testing Materials (ASTM) standard. Thereafter the residual stresses were calculated by means of a non-linear finite element analysis. The analysis took in account the thermo-mechanical phenomena with temperature dependent steel properties. The other considered also the phase transformation and phase-dependent thermal and mechanical properties.

Info:

Periodical:

Main Theme:

Edited by:

F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini

Pages:

715-722

Citation:

G. Casalino et al., "Investigation on the Residual Stress of AISI 4047 Low Alloy Steel Laser Welded", Key Engineering Materials, Vol. 344, pp. 715-722, 2007

Online since:

July 2007

Export:

Price:

$38.00

[1] W. Steen, Laser material processing, 3 rd Edition (1996), LIA, Orlando, Fla.

[2] N.A. McPherson, K. Chi, T.N. Baker, Submerged arc welding of stainless steel and the challenge from the laser welding; Jour. of Mat. Processing Technology 134 (2003) 174-179.

DOI: https://doi.org/10.1016/s0924-0136(02)00466-1

[3] S.K. Cho, Y.S. Yang, K.J. Son, J.Y. Kim, Fatigue strength in laser welding of the lap joint, Finite Elements in Analysis and Design 40 (2004) 1059-1070.

DOI: https://doi.org/10.1016/j.finel.2003.08.010

[4] S. Sarkani, V. Tritchkov, G. Michaelov, An efficient approach for computing residual stresses in welded joints, Finite Elements in Analysis and Design 35 (2000) 247-268.

DOI: https://doi.org/10.1016/s0168-874x(99)00068-2

[5] S.A. Tsirkas, P. Papanikos, Th. Kermanidis, Numerical simulation of the laser welding process in buttjoint specimens; Journal of Materials Technology Processing 134 (2003) 59-69.

DOI: https://doi.org/10.1016/s0924-0136(02)00921-4

[6] J.R. Cho, B.Y. Lee, Y.H. Moon, C.J. Van Tyne, Investigation of residual stress and post weld treatment of multi-pass welds by finite element method and experiments, J. of Mat. Pr. Tech. (2004), 1690-1695.

DOI: https://doi.org/10.1016/j.jmatprotec.2004.04.325

[7] H. Ma, H.L. Deng, Nondestructive determination of welding residual stresses by boundary element method, Advances in Engineering Software, Vol. 29, No. 2, pp.85-95, (1998).

DOI: https://doi.org/10.1016/s0965-9978(98)00051-9

[8] M. Ya, P. Marquette, F. Belahcene, J. Lu, Residual stresses in laser welded aluminium plate by use of ultrasonic and optical methods, Material Science and Engineering A 382 (2004) 257-264.

DOI: https://doi.org/10.1016/j.msea.2004.05.020

[9] S. Fricke, E. Keim, J. Schmidt, Numerical weld modelling - a method for calculating weld-induced residual stresses, Nuclear Engineering and Design 206 (2001) 139-150.

DOI: https://doi.org/10.1016/s0029-5493(00)00414-3

[10] J.B. Calvert, Systems, Phases, Constituents and Variance, (2002).

[11] J.O. Milewsky, M.B. Barbe, Modeling and Analysis of Laser Melting within a Narrow Groove Weld Joint, Welding Research, Supplement to the Welding Journal, April (1999).

[12] Waine.E. Nickola, Practical Subface residual stresses evaluation by hole drilling method, form proceeding of 1986 SEM conference on EXP. Mechanics New Orleans, LA.

[13] T.G. Beckwith, R.D. Marangoni, J.H. Lienhard V, Mechanical Measurements, 5 th Ed. Add. -Wesly. (1995).

[14] J.B. Roelens, Determination of the residual stresses and comparison with experimental measurements, Welding in the World Vol. 35, No. 2, pp.110-112, (1995).

[15] EsiGroup, Analysis Reference Manual - SYSTUS (2003).
