A Study on Flexural Strength with the Spreading of the Negative Steel of Girder into the Adjoining Slab

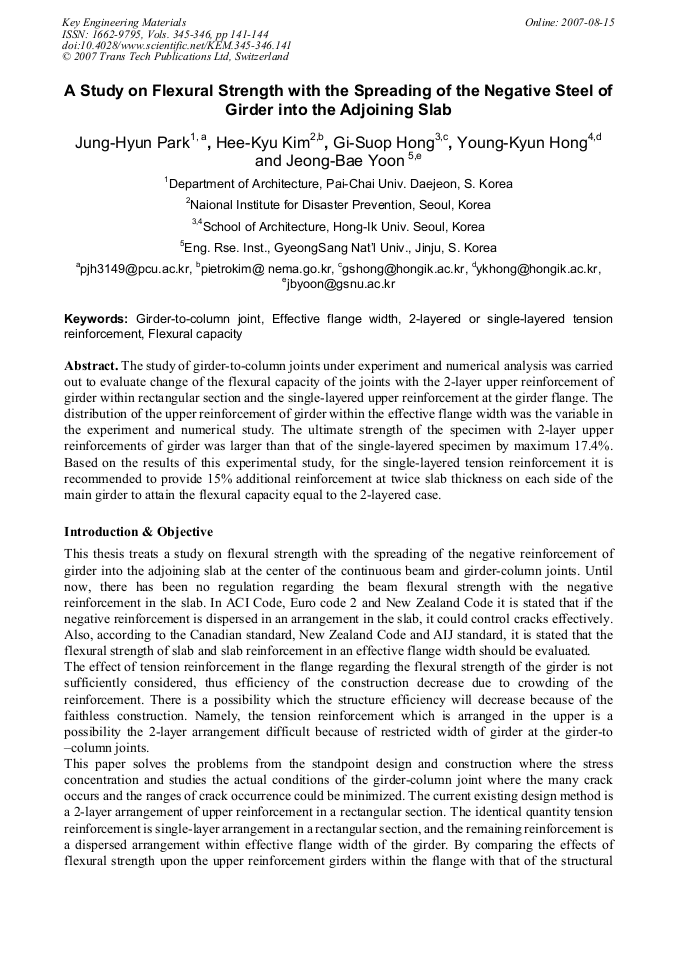

Article Preview

The study of girder-to-column joints under experiment and numerical analysis was carried out to evaluate change of the flexural capacity of the joints with the 2-layer upper reinforcement of girder within rectangular section and the single-layered upper reinforcement at the girder flange. The distribution of the upper reinforcement of girder within the effective flange width was the variable in the experiment and numerical study. The ultimate strength of the specimen with 2-layer upper reinforcements of girder was larger than that of the single-layered specimen by maximum 17.4%. Based on the results of this experimental study, for the single-layered tension reinforcement it is recommended to provide 15% additional reinforcement at twice slab thickness on each side of the main girder to attain the flexural capacity equal to the 2-layered case.



Key Engineering Materials (Volumes 345-346)

Edited by:

S.W. Nam, Y.W. Chang, S.B. Lee and N.J. Kim




J. H. Park et al., "A Study on Flexural Strength with the Spreading of the Negative Steel of Girder into the Adjoining Slab ", Key Engineering Materials, Vols. 345-346, pp. 141-144, 2007

Online since:

August 2007




[1] N. Suzuki, S. Otani, and H. Aoyama : The Effective Width of Slabs in Reinforced Concrete Structures, Trans. of JCI, Vol. 5 (1983), pp.309-316.

[2] M. R. Ehsani and J. K. Wight: Effect of Transverse Beam and Slab on the Behavior of R/C Beam-to-Column Connections, Struct. J., ACI, March-April(1985), pp.188-195.

[3] A. J. Durrani and H. E. Zerbe: Seismic Resistance of R/C Exterior Connections with Floor Slab, J. Struct. Div., ASCE, August (1987), pp.1850-1864.

DOI: 10.1061/(asce)0733-9445(1987)113:8(1850)

[4] R. S. Narayanan, S. B. Tietz and Partner: Concrete Structures : Eurocode EC2 and BS 8110 Compared, Section 6. 12. 2, Longman Scientific & Technical, England, (1994).

[5] Standards Association of New Zealand: Concrete Structures Standard, Part 1-The Design of Concrete Structures, NZS 3101: Part 1; (1995), Wellington, New Zealand.
