Numerical Simulation of Friction Stir Welding of AA6111-T4 Sheets

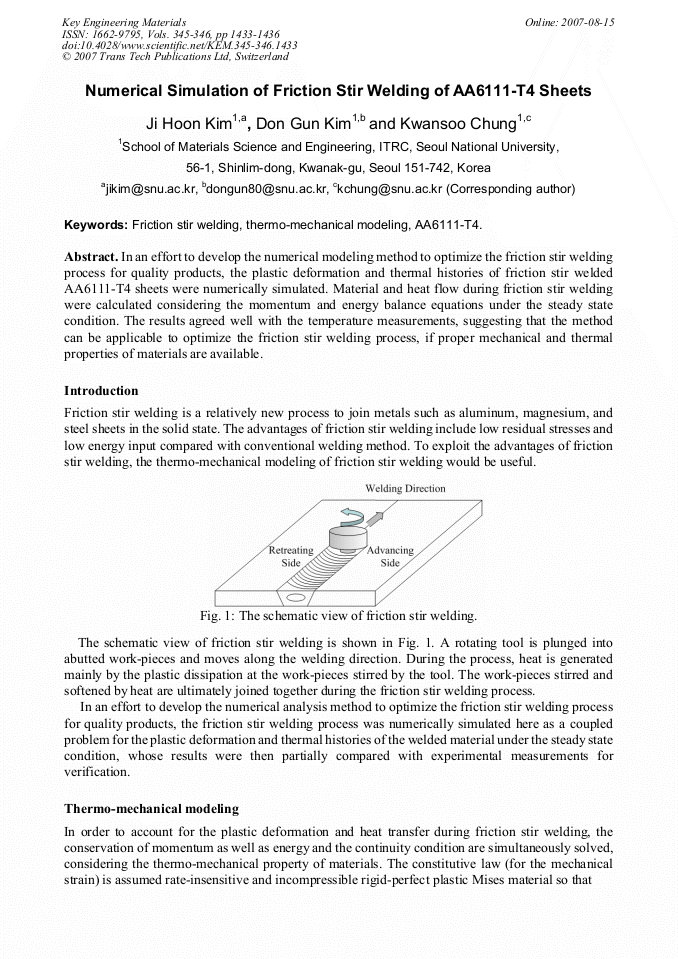

Article Preview

In an effort to develop the numerical modeling method to optimize the friction stir welding process for quality products, the plastic deformation and thermal histories of friction stir welded AA6111-T4 sheets were numerically simulated. Material and heat flow during friction stir welding were calculated considering the momentum and energy balance equations under the steady state condition. The results agreed well with the temperature measurements, suggesting that the method can be applicable to optimize the friction stir welding process, if proper mechanical and thermal properties of materials are available.



Key Engineering Materials (Volumes 345-346)

Edited by:

S.W. Nam, Y.W. Chang, S.B. Lee and N.J. Kim




J. H. Kim et al., "Numerical Simulation of Friction Stir Welding of AA6111-T4 Sheets", Key Engineering Materials, Vols. 345-346, pp. 1433-1436, 2007

Online since:

August 2007




[1] O.C. Zienkiewicz and R.L. Taylor: The finite element method, (McGraw-Hill, UK, 1991).

[2] Fluent Inc., User's guide for Fluent 6. 2 (2005).

[3] K.K. Sanjeev, X. Long, W.D. Porter, H. Wang, C.K. Liu, M. Radovic and E. Lara-Curzio: Science and Technology of Welding and Joining Vol. 10 (2005), p.82.

[4] Y.J. Chao, X. Qi and W. Tang: Transactions of the ASME Vol. 125 (2003), p.138.

[5] T. Hyoe, P.A. Colegrove and H.R. Shercliff, in: Friction Stir Welding and Processing II, edited by Jata et al. TMS Symposium Proceedings, A Publication of TMS, (2003).

[6] K. Okamoto, S. Hirano, M. Inagaki and T. Odakura: Friction stir welding of automotive alloy sheets for tailor welded blank, Hitachi Private, (2004).
