Bauschinger Effect’ Influence on the Componud Cylinder Containing an Autofrettaged Layer

Abstract:

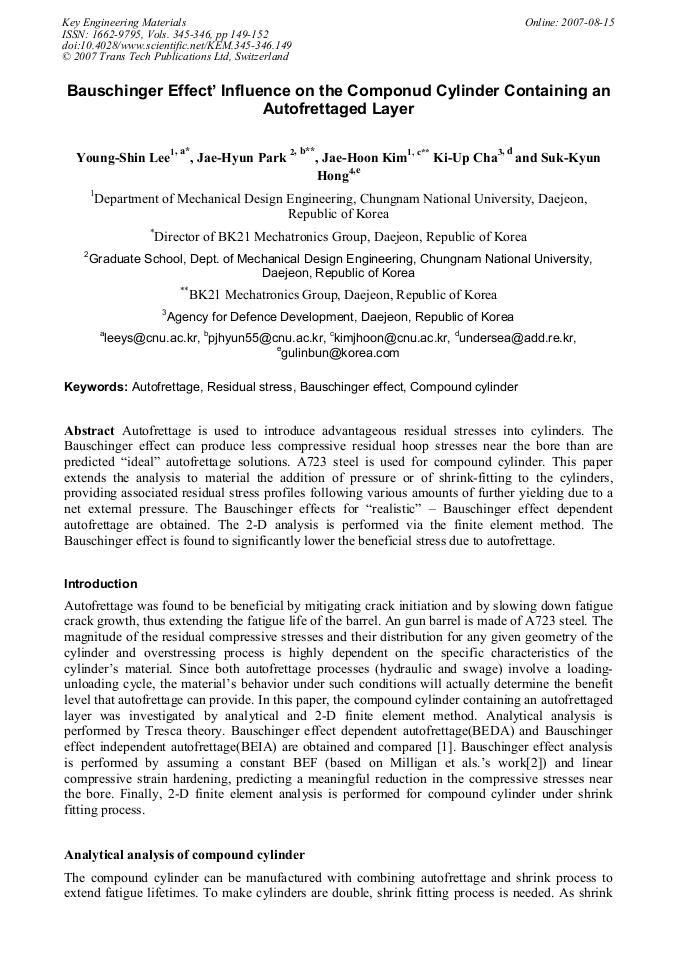

Article Preview

Autofrettage is used to introduce advantageous residual stresses into cylinders. The Bauschinger effect can produce less compressive residual hoop stresses near the bore than are predicted “ideal” autofrettage solutions. A723 steel is used for compound cylinder. This paper extends the analysis to material the addition of pressure or of shrink-fitting to the cylinders, providing associated residual stress profiles following various amounts of further yielding due to a net external pressure. The Bauschinger effects for “realistic” – Bauschinger effect dependent autofrettage are obtained. The 2-D analysis is performed via the finite element method. The Bauschinger effect is found to significantly lower the beneficial stress due to autofrettage.

Info:

Periodical:

Key Engineering Materials (Volumes 345-346)

Edited by:

S.W. Nam, Y.W. Chang, S.B. Lee and N.J. Kim

Pages:

149-152

Citation:

Y. S. Lee et al., "Bauschinger Effect’ Influence on the Componud Cylinder Containing an Autofrettaged Layer", Key Engineering Materials, Vols. 345-346, pp. 149-152, 2007

Online since:

August 2007

Export:

Price:

$38.00

[1] C. Levy, M. Perl, S, Kotagiri, The Bauschinger effect's influence on the SIFs of multiple longitudinal coplanar cracks in autofrettaged pressurized cylinders, Engineering Fracture Mechanics, Vol. 73, 2006, pp.1814-1825.

[2] R.V. Milligan, W.H. Koo, T.E. Davidson: J. Basic Engin., ASME, 1996, p.480.

[3] A. C. Ugural, S. K. Fenster, Advanced Strength and Applied Elasticity, Third Edition.

[4] Koh, S., K., Residual Stress Evaluation and Its Effects on the Fatigue Life of an Autofrettaged Tube, Key Engineering Materials, Vols. 321-323, 2006, pp.699-702.

[5] D.P. Kendall: ASME PVP Vol. 125, 1987, p.17.

[6] Koh, S.K., Na E.G., Fatigue crack growth life of thick-walled cylinders with an external radial crack, International Journal of Fatiugue, Vol. 21, 1999, pp.135-146.
