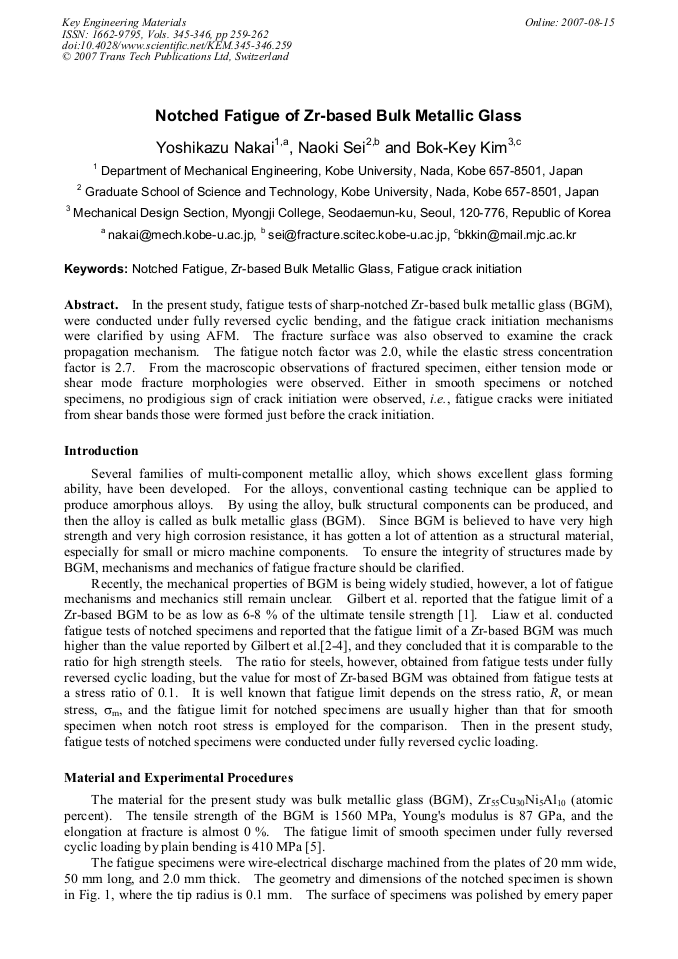

Notched Fatigue of Zr-Based Bulk Metallic Glass

Abstract:

In the present study, fatigue tests of sharp-notched Zr-based bulk metallic glass (BGM), were conducted under fully reversed cyclic bending, and the fatigue crack initiation mechanisms were clarified by using AFM. The fracture surface was also observed to examine the crack propagation mechanism. The fatigue notch factor was 2.0, while the elastic stress concentration factor is 2.7. From the macroscopic observations of fractured specimen, either tension mode or shear mode fracture morphologies were observed. Either in smooth specimens or notched specimens, no prodigious sign of crack initiation were observed, i.e., fatigue cracks were initiated from shear bands those were formed just before the crack initiation.

Info:

Periodical:

Key Engineering Materials (Volumes 345-346)

Main Theme:

The Mechanical Behavior of Materials X

Edited by:

S.W. Nam, Y.W. Chang, S.B. Lee and N.J. Kim

Pages:

259-262

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.345-346.259

Citation:

Y. Nakai et al., "Notched Fatigue of Zr-Based Bulk Metallic Glass", Key Engineering Materials, Vols. 345-346, pp. 259-262, 2007

Online since:

August 2007

Authors:

Yoshikazu Nakai, Naoki Sei, Bok Key Kim

Keywords:

Amorphous Alloy, Bulk Amorphous Alloy, Fatigue Crack Initiation, Notched Fatigue
