An Evaluation of Thermal Fatigue Cracking and Chemical Reaction in Die Casting Mould

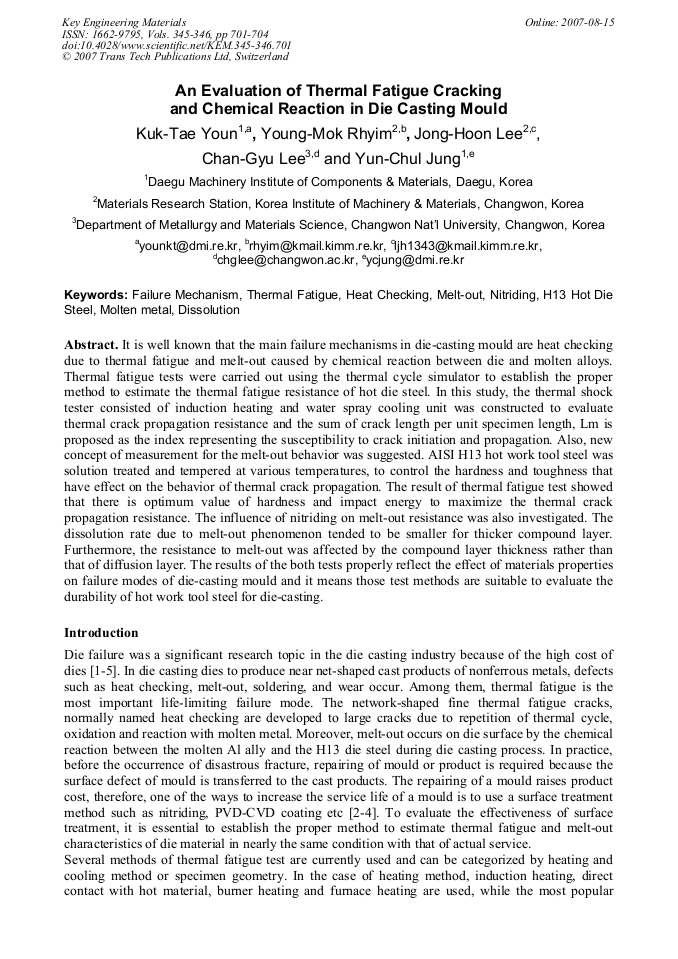

Article Preview

It is well known that the main failure mechanisms in die-casting mould are heat checking due to thermal fatigue and melt-out caused by chemical reaction between die and molten alloys. Thermal fatigue tests were carried out using the thermal cycle simulator to establish the proper method to estimate the thermal fatigue resistance of hot die steel. In this study, the thermal shock tester consisted of induction heating and water spray cooling unit was constructed to evaluate thermal crack propagation resistance and the sum of crack length per unit specimen length, Lm is proposed as the index representing the susceptibility to crack initiation and propagation. Also, new concept of measurement for the melt-out behavior was suggested. AISI H13 hot work tool steel was solution treated and tempered at various temperatures, to control the hardness and toughness that have effect on the behavior of thermal crack propagation. The result of thermal fatigue test showed that there is optimum value of hardness and impact energy to maximize the thermal crack propagation resistance. The influence of nitriding on melt-out resistance was also investigated. The dissolution rate due to melt-out phenomenon tended to be smaller for thicker compound layer. Furthermore, the resistance to melt-out was affected by the compound layer thickness rather than that of diffusion layer. The results of the both tests properly reflect the effect of materials properties on failure modes of die-casting mould and it means those test methods are suitable to evaluate the durability of hot work tool steel for die-casting.



Key Engineering Materials (Volumes 345-346)

Edited by:

S.W. Nam, Y.W. Chang, S.B. Lee and N.J. Kim




K. T. Youn et al., "An Evaluation of Thermal Fatigue Cracking and Chemical Reaction in Die Casting Mould", Key Engineering Materials, Vols. 345-346, pp. 701-704, 2007

Online since:

August 2007




[1] S.J. Noesen, H.A. Williams: Modern Casting (1967), p.119.

[2] M. Pelizzari, A. Molinari and G. Straffelini: Surface Engineering. Vol. 18, No. 4 (2002), p.289.

[3] C.M.D. Starling and J.R.T. Branco: Thin Solid Films Vol. 308-309 (1997), p.436.

[4] D. Heim, F. Holler and C. Mitterer: Surf. & Coat. Tech. Vol. 116-119 (1999), p.530.

[5] Z.W. Chen: Mater. Sci. & Eng. A. Vol. 397 (2005), p.356 Fig. 6. Variations of melt-out depth of immersion- tested specimens at 700 °C for 43 h. Fig. 7. Micrographs of melt-out surface of nitrided H13 hot die steel.
