Experimental Application of a Damage Localisation Technique Based on Smoothed Proper Orthogonal Modes

Abstract:

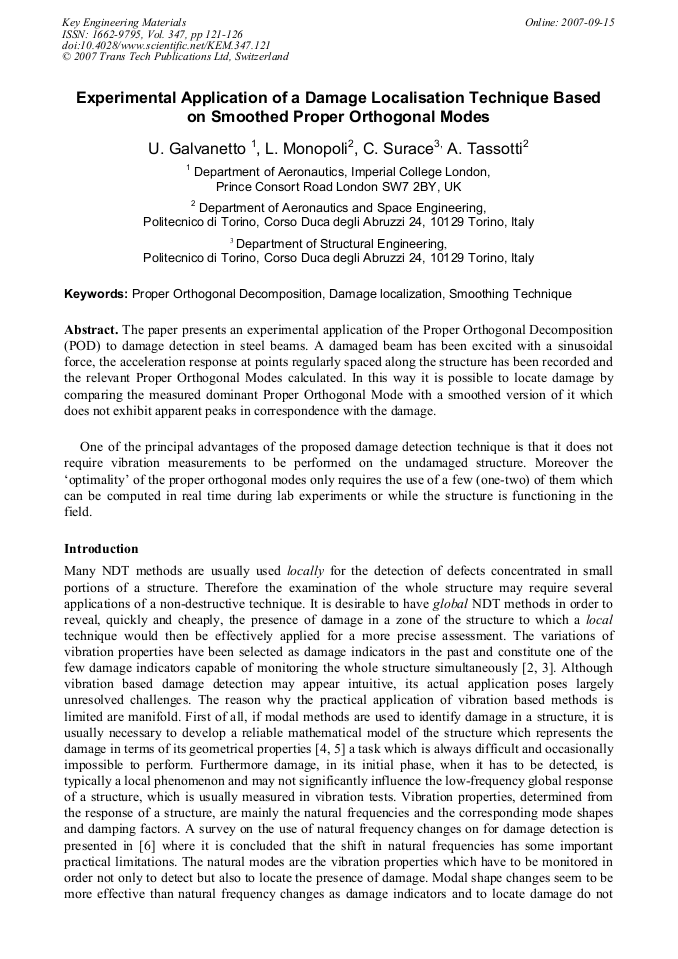

Article Preview

The paper presents an experimental application of the Proper Orthogonal Decomposition (POD) to damage detection in steel beams. A damaged beam has been excited with a sinusoidal force, the acceleration response at points regularly spaced along the structure has been recorded and the relevant Proper Orthogonal Modes calculated. In this way it is possible to locate damage by comparing the measured dominant Proper Orthogonal Mode with a smoothed version of it which does not exhibit apparent peaks in correspondence with the damage. One of the principal advantages of the proposed damage detection technique is that it does not require vibration measurements to be performed on the undamaged structure. Moreover the ‘optimality’ of the proper orthogonal modes only requires the use of a few (one-two) of them which can be computed in real time during lab experiments or while the structure is functioning in the field.

Info:

Periodical:

Edited by:

L. Garibaldi, C. Surace, K. Holford and W.M. Ostachowicz

Pages:

121-126

DOI:

10.4028/www.scientific.net/KEM.347.121

Citation:

U. Galvanetto et al., "Experimental Application of a Damage Localisation Technique Based on Smoothed Proper Orthogonal Modes ", Key Engineering Materials, Vol. 347, pp. 121-126, 2007

Online since:

September 2007

Export:

Price:

$35.00

[1] S. Ness and C.N. Sherlock: ASTN Nondestructive testing Handbook, Vol. 10 (1996).

[2] S.W. Doebling, C.R. Farrar, M.B. Prime: The shock and vibration digest, Vol. 30, No. 2 (1998), p.91.

[3] P. Cawley and R.D. Adams: J. Strain Anal., Vol. 14 (1979), p.49.

[4] C. Mares and C. Surace: J. of Sound and Vibration, Vol. 195 (2) (1996), p.195.

[5] R. Ruotolo and C. Surace: J. of Sound and Vibration, Vol. 206 (4) (1997), p.567.

[6] O.S. Salawu,: Vol. 19 (9), (1997), p.718.

[7] M. Gherlone, M. Mattone, C. Surace, A. Tassotti and A. Tessler: Key engineering Material, Vol. 293-294 (2005), p.289.

DOI: 10.4028/www.scientific.net/kem.293-294.289

[8] C. Surace and A. Tassotti: Third European Workshop on Structural Health Monitoring, (2006), Granada, Spain.

[9] C.P. Ratcliffe: J. of Sound and Vibration, Vol. 204 (3) (1997), p.505.

[10] K. Pandey, M. Biswas and M.M. Samman: J. of Sound and Vibration, Vol. 145 (1991), p.321.

[11] Y.K. Ho: PhD thesis (2000), Imperial College London.

[12] U. Galvanetto and G. Violaris: Mech. Sys. Sign. Proc. (2006), available in electronic form.

[13] P. Holmes, J.L. Lumley and G. Bekooz: Cambridge University Press (1996).

[14] J.L. Lumley: New York, Academic Press, (1970).

[15] L. Sirovich: Quart. Appl. Math., Vol. 45 (3) (1987), p.561.

[16] Kerschen and J.C. Golinval: J. of Sound and Vibration, Vol. 249 (2002), p.849.

[17] C.P. Ratcliffe: J. Vibration and Acoustics Vol. 122 (2000), p.324.

[18] M. Battipede R. Ruotolo and C. Surace: Key Engineering Materials Vol. 204-205 (2001), p.27.

[19] M. K. Yoon, D. Heider, J. W. Gillespie, Jr., C.P. Ratcliffe and R.M. Crane: 46th International SAMPE Symposium/Exhibition, Long Beach Convention Center, Long Beach, CA, Vol. 46 (2001) p.752.

[20] M.K. Yoon, D. Heider, J.W. Gillespie Jr., C.P. Ratcliffe and R.M. Crane: J. Sound & Vibration, Vol. 279 (2005) p.119.
