Dynamics of Structures with Piezoelectric Sensors and Actuators for Structural Health Monitoring


Article Preview

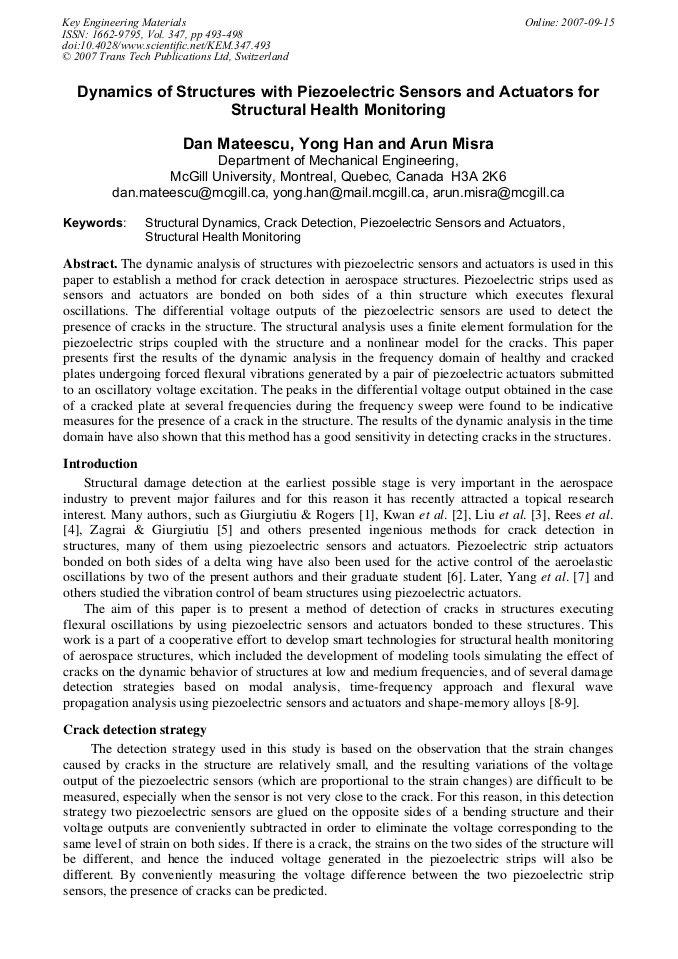

The dynamic analysis of structures with piezoelectric sensors and actuators is used in this paper to establish a method for crack detection in aerospace structures. Piezoelectric strips used as sensors and actuators are bonded on both sides of a thin structure which executes flexural oscillations. The differential voltage outputs of the piezoelectric sensors are used to detect the presence of cracks in the structure. The structural analysis uses a finite element formulation for the piezoelectric strips coupled with the structure and a nonlinear model for the cracks. This paper presents first the results of the dynamic analysis in the frequency domain of healthy and cracked plates undergoing forced flexural vibrations generated by a pair of piezoelectric actuators submitted to an oscillatory voltage excitation. The peaks in the differential voltage output obtained in the case of a cracked plate at several frequencies during the frequency sweep were found to be indicative measures for the presence of a crack in the structure. The results of the dynamic analysis in the time domain have also shown that this method has a good sensitivity in detecting cracks in the structures.
