Application of the Higher Modes to Crack Identification in a Cantilever Beam

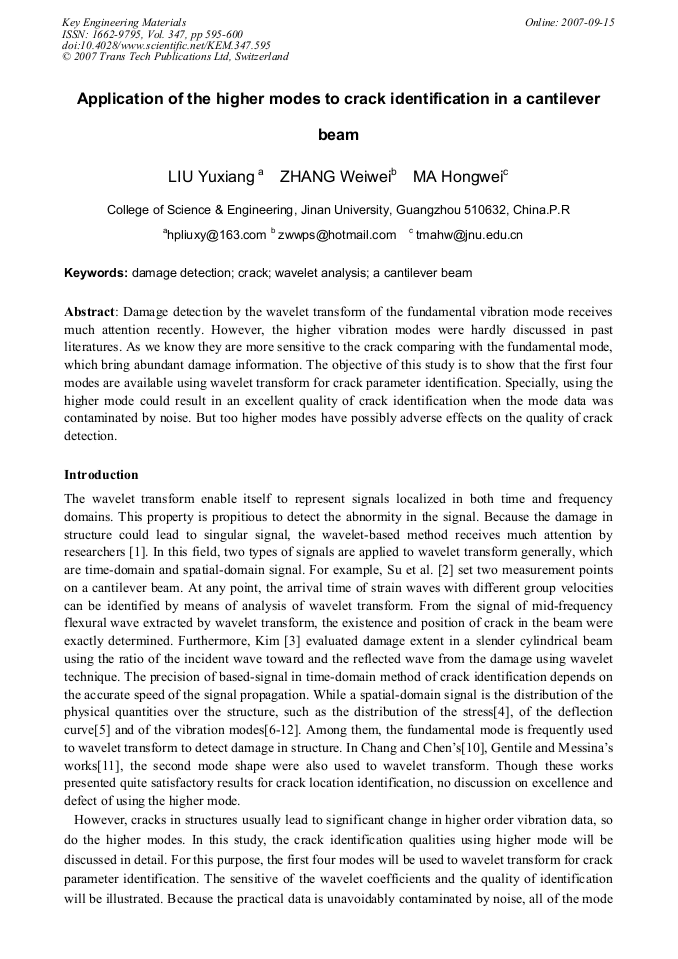

Article Preview

Damage detection by the wavelet transform of the fundamental vibration mode receives much attention recently. However, the higher vibration modes were hardly discussed in past literatures. As we know they are more sensitive to the crack comparing with the fundamental mode, which bring abundant damage information. The objective of this study is to show that the first four modes are available using wavelet transform for crack parameter identification. Specially, using the higher mode could result in an excellent quality of crack identification when the mode data was contaminated by noise. But too higher modes have possibly adverse effects on the quality of crack detection.



Edited by:

L. Garibaldi, C. Surace, K. Holford and W.M. Ostachowicz




Y. X. Liu et al., "Application of the Higher Modes to Crack Identification in a Cantilever Beam", Key Engineering Materials, Vol. 347, pp. 595-600, 2007

Online since:

September 2007




[1] H. N Li and H. M Sun: World earthquake engineering. 2003(2), p.16 (Chinese).

[2] J.Y. Tian, Z. Li and X.Y. Su: J. of Sound and Vibration, Vol. 261 (2003), p.715.

[3] I.K. Kim and Y. Y. Kim: J. of Sound and Vibration Vol. 287 (2005), p.707.

[4] W.W. Zhang, Z.H. Wang and H.W. Ma: ISTM/2005, Vol 4 (2005), p.3307.

[5] S.T. Quek, Q. Wang, L. Zhang and K.K. Ang: International J. of solids and structures. Vol. 43 (2001), p.2899.

[6] A.V. Ovanesova and L.E. Suarez: Engineering Structures: Vol. 26 (2004), p.39.

[7] E. Douka, S. Loutridis and A. Trochidis: Journal of Sound and Vibration. Vol. 277 (2004), p.1025.

[8] S. Loutridis, E. Douka and A. Trochidis: International J. of Solids and Structures. Vol. 40 (2003), p.3569.

[9] W. LIU, Q. LONG and G.B. LIU: Modern Radar. Vol. 6 (2002), p.56 (Chinese).

[10] C.C. Chang and L.W. Chen: Applied Acoustics Vol. 64 (2003), p.1217.

[11] A. Gentile and A. Messina: International J. of Solids and Structures. Vol. 40 (2003), p.295.

[12] J.C. Hong, Y.Y. Kim, H.C. Lee and Y.W. Lee: International J. of Solids and Structures Vol. 39 (2002), p.1803.

[13] A.P. Bovsunovsky and V.V. Matveev: J of Sound and Vibration Vol. 235(3) (2000), p.415.
