Progressive Failure Analysis of Composite Pressure Vessels by Finite Element Method

Abstract:

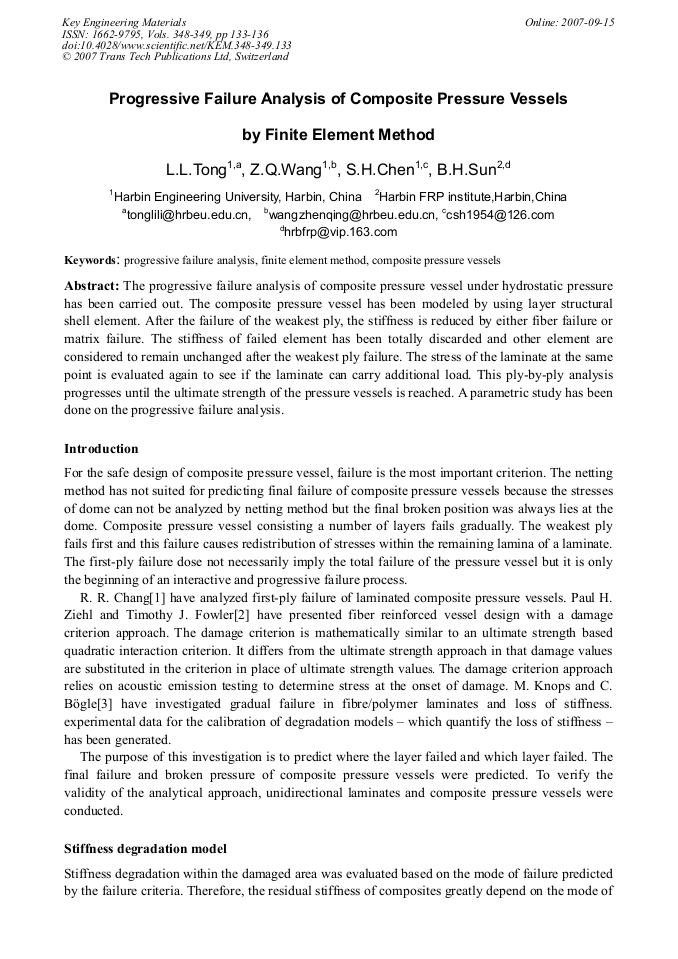

Article Preview

The progressive failure analysis of composite pressure vessel under hydrostatic pressure has been carried out. The composite pressure vessel has been modeled by using layer structural shell element. After the failure of the weakest ply, the stiffness is reduced by either fiber failure or matrix failure. The stiffness of failed element has been totally discarded and other element are considered to remain unchanged after the weakest ply failure. The stress of the laminate at the same point is evaluated again to see if the laminate can carry additional load. This ply-by-ply analysis progresses until the ultimate strength of the pressure vessels is reached. A parametric study has been done on the progressive failure analysis.

Info:

Periodical:

Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel

Pages:

133-136

Citation:

L. L. Tong et al., "Progressive Failure Analysis of Composite Pressure Vessels by Finite Element Method", Key Engineering Materials, Vols. 348-349, pp. 133-136, 2007

Online since:

September 2007

Export:

Price:

$38.00

[1] R. R. Chang: Experimental and Theoretical Analyses of First-ply Failure of Laminated Composite Pressure Vessels. Composite Structures. Vol. 49(2000), P. 237-243.

DOI: https://doi.org/10.1016/s0263-8223(99)00133-6

[2] Paul H. Ziehl, Timothy J. Fowler:Fiber Reinforced Vessel Design with a Damage Criterion Approach. Composite Structures. Vol. 61(2003), P. 395-411.

DOI: https://doi.org/10.1016/s0263-8223(03)00053-9

[3] M. Knops, C. Bögle: Gradual Failure in Fibre/polymer Laminates. Composites Science and Technology. Vol. 66(2006), P. 616-625.

DOI: https://doi.org/10.1016/j.compscitech.2005.07.044

[4] Wen-pin Lin, Hsuan-Ten Hu. Parametric Study on the Failure of Fiber-Reinfored Composite Laminates under Biaxial Tensile Load. Journal of Composite Materials. Vol. 36(2002), p.1481.

DOI: https://doi.org/10.1177/0021998302036012218

[5] L.L. Tong, Hui Chen. Numerical Simulation of Stiffness Degradation Model for Fiber-Winding Composite Pressure Vessels. ACTA Material Composite Sinica. Vol. 21(2004), pp.159-163.

[6] L.L. Tong, Z.Q. Wang. Numerical Simulation of Unidirectional Hoop Composite Laminates under Flexural Loads. Key Engineering Materials, Edited by J.K. Kim, Trans Tech Publications Inc. Switzerland(2007).

DOI: https://doi.org/10.4028/0-87849-427-8.217

[5] [10] [15] [20] [25] [30] [35] [40] [45] 0 1 2 3 4 5 6 7 pressure M P a displacement mm geom etric non-linear m ethod of this paper test result m aterial and geom etric non-linear.
