Deformation and Damage Evolution of the Microstructure around Ti-Particles in IF Steel during Tensile Deformation

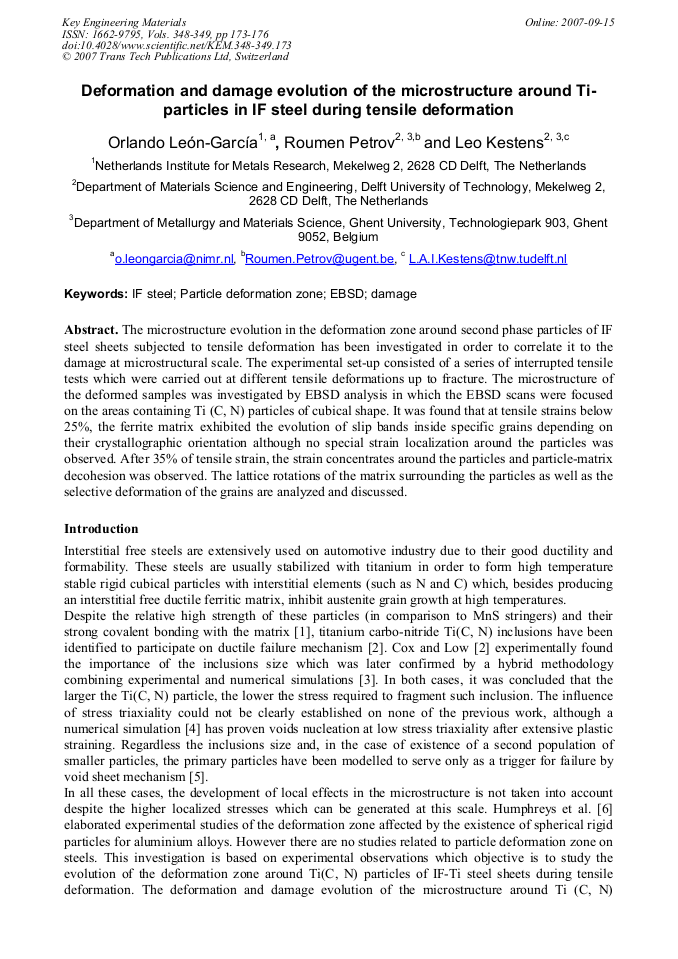

Article Preview

The microstructure evolution in the deformation zone around second phase particles of IF steel sheets subjected to tensile deformation has been investigated in order to correlate it to the damage at microstructural scale. The experimental set-up consisted of a series of interrupted tensile tests which were carried out at different tensile deformations up to fracture. The microstructure of the deformed samples was investigated by EBSD analysis in which the EBSD scans were focused on the areas containing Ti (C, N) particles of cubical shape. It was found that at tensile strains below 25%, the ferrite matrix exhibited the evolution of slip bands inside specific grains depending on their crystallographic orientation although no special strain localization around the particles was observed. After 35% of tensile strain, the strain concentrates around the particles and particle-matrix decohesion was observed. The lattice rotations of the matrix surrounding the particles as well as the selective deformation of the grains are analyzed and discussed.



Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel




O. León-García et al., "Deformation and Damage Evolution of the Microstructure around Ti-Particles in IF Steel during Tensile Deformation", Key Engineering Materials, Vols. 348-349, pp. 173-176, 2007

Online since:

September 2007




[1] J. H. Lee, T. Shishidou et al.: Philos. Mag., Vol. 85, (2005), p.3683.

[2] T. B. Cox and J. R. Low: Metall. Trans., Vol. 5, (1974), p.1457.

[3] M.N. Shabrov, E. Sylven, S. Kim et al.: Metal. Mater. Trans. Vol. 35A (2004), p.1745.

[4] M.N. Shabrov and A. Needleman: Modelling. Simul. Eng. Vol. 10 (2002), p.163.

[5] C. McVeigh, F. Vernerey, W.K. Liu, B. Moran, G. Olson: J. Mech. Phys. Sol. 55 (2007), p.225.

[6] J. Humphreys, P. Bate: Scripta Materialia Vol. 48 (2003), p.173.

[7] A.J. Wilkinson, G. Meaden, D.J. Dingley: Mater. Sci. Tech., Vol. 22 (2006), p.1271.

[8] P. Van Houtte: The MTM-FHM and MTM-Taylor software system, Version 2, ed. by MTMKULeuven, Belgium, (1995).

[9] M.R. Barnett, J.J. Jonas: Iron Steel Inst. Jpn. Int. Vol 37 (1997), p.706.
