Initial Aspects of Low-Cycle Fatigue Fracture of Martensitic Steels

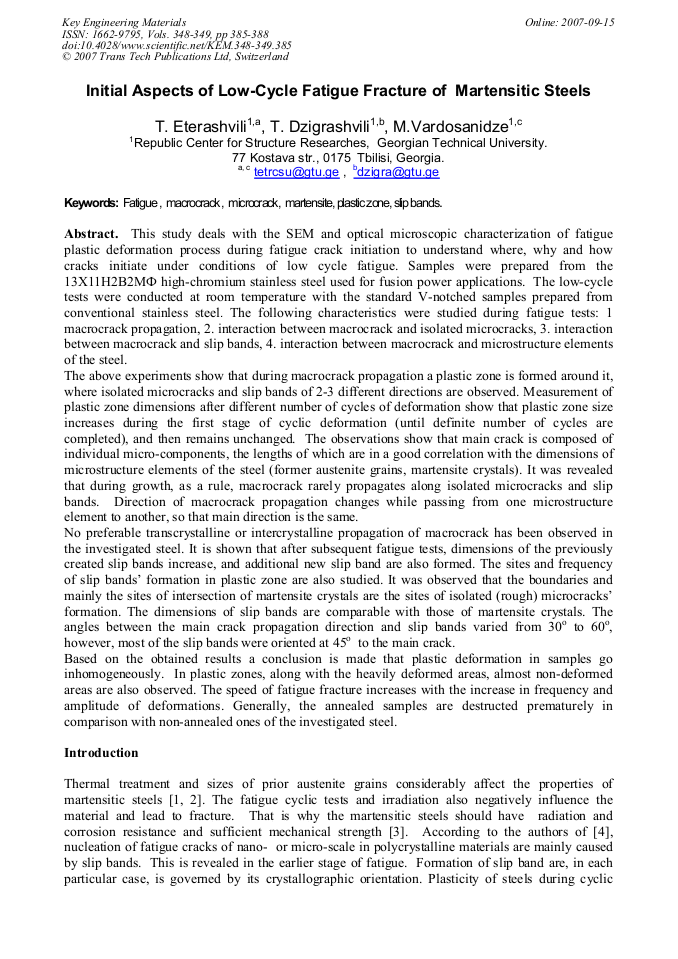

Article Preview

This study deals with the SEM and optical microscopic characterization of fatigue plastic deformation process during fatigue crack initiation to understand where, why and how cracks initiate under conditions of low cycle fatigue. Samples were prepared from the 13Х11Н2В2МФ high-chromium stainless steel used for fusion power applications. The low-cycle tests were conducted at room temperature with the standard V-notched samples prepared from conventional stainless steel. The following characteristics were studied during fatigue tests: 1 macrocrack propagation, 2. interaction between macrocrack and isolated microcracks, 3. interaction between macrocrack and slip bands, 4. interaction between macrocrack and microstructure elements of the steel. The above experiments show that during macrocrack propagation a plastic zone is formed around it, where isolated microcracks and slip bands of 2-3 different directions are observed. Measurement of plastic zone dimensions after different number of cycles of deformation show that plastic zone size increases during the first stage of cyclic deformation (until definite number of cycles are completed), and then remains unchanged. The observations show that main crack is composed of individual micro-components, the lengths of which are in a good correlation with the dimensions of microstructure elements of the steel (former austenite grains, martensite crystals). It was revealed that during growth, as a rule, macrocrack rarely propagates along isolated microcracks and slip bands. Direction of macrocrack propagation changes while passing from one microstructure element to another, so that main direction is the same. No preferable transcrystalline or intercrystalline propagation of macrocrack has been observed in the investigated steel. It is shown that after subsequent fatigue tests, dimensions of the previously created slip bands increase, and additional new slip band are also formed. The sites and frequency of slip bands’ formation in plastic zone are also studied. It was observed that the boundaries and mainly the sites of intersection of martensite crystals are the sites of isolated (rough) microcracks’ formation. The dimensions of slip bands are comparable with those of martensite crystals. The angles between the main crack propagation direction and slip bands varied from 30o to 60o, however, most of the slip bands were oriented at 45o to the main crack. Based on the obtained results a conclusion is made that plastic deformation in samples go inhomogeneously. In plastic zones, along with the heavily deformed areas, almost non-deformed areas are also observed. The speed of fatigue fracture increases with the increase in frequency and amplitude of deformations. Generally, the annealed samples are destructed prematurely in comparison with non-annealed ones of the investigated steel.



Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel




T. Eterashvili et al., "Initial Aspects of Low-Cycle Fatigue Fracture of Martensitic Steels", Key Engineering Materials, Vols. 348-349, pp. 385-388, 2007

Online since:

September 2007
