Fatigue Design of Welded Joints by Local Approaches: Comparison between Fictitious Notch Rounding and Strain Energy Averaging

Abstract:

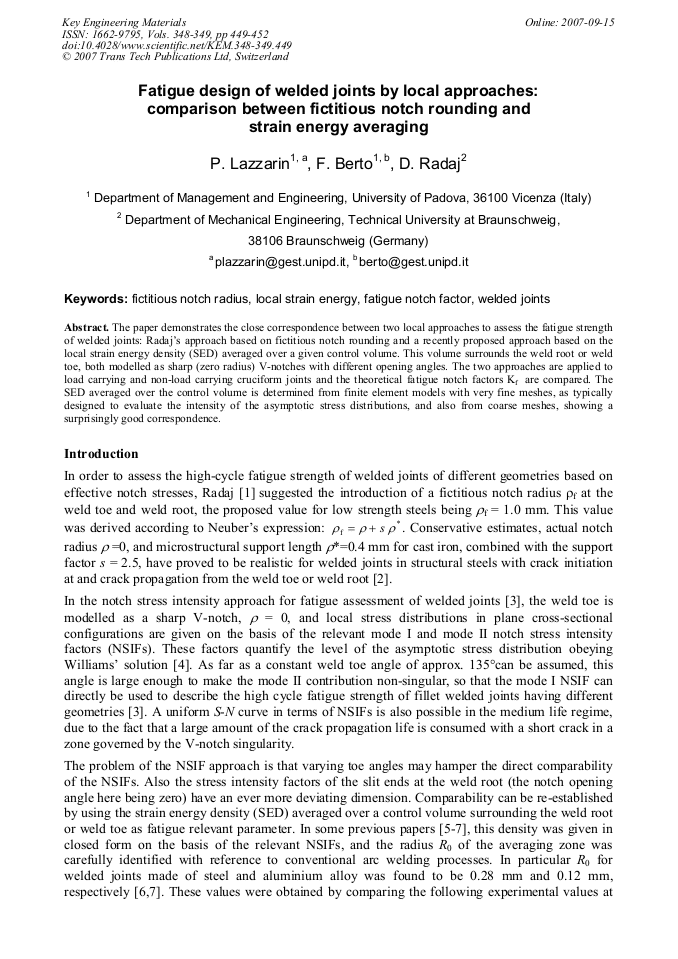

Article Preview

The paper demonstrates the close correspondence between two local approaches to assess the fatigue strength of welded joints: Radaj’s approach based on fictitious notch rounding and a recently proposed approach based on the local strain energy density (SED) averaged over a given control volume. This volume surrounds the weld root or weld toe, both modelled as sharp (zero radius) V-notches with different opening angles. The two approaches are applied to load carrying and non-load carrying cruciform joints and the theoretical fatigue notch factors Kf are compared. The SED averaged over the control volume is determined from finite element models with very fine meshes, as typically designed to evaluate the intensity of the asymptotic stress distributions, and also from coarse meshes, showing a surprisingly good correspondence.

Info:

Periodical:

Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel

Pages:

449-452

Citation:

P. Lazzarin et al., "Fatigue Design of Welded Joints by Local Approaches: Comparison between Fictitious Notch Rounding and Strain Energy Averaging ", Key Engineering Materials, Vols. 348-349, pp. 449-452, 2007

Online since:

September 2007

Export:

Price:

$38.00

[1] Radaj, D. Design and analysis of fatigue resistant welded structures, Abington Publishing, Cambridge (1990).

[2] Radaj, D., Sonsino C. M., Fricke, W. Fatigue assessment of welded joints by local approaches, Woodhead Publishing, Cambridge, 2006, 2nd edn.

DOI: https://doi.org/10.1533/9781845691882.1

[3] Lazzarin, P., Tovo, R. (1998). Fatigue Fract Engng Mater Struct 21, 1089.

[4] Williams, M.L. (1952) J. Appl. Mech. 19, 526.

[5] Lazzarin, P., Zambardi, R. (2001). Int. J. Fract 112, 275.

[6] Lazzarin, P., Lassen, T., Livieri, P. (2003). Fatigue Fract Engng Mater. Struct. 26, 49.

[7] Livieri, P., Lazzarin, P. (2005). Int. J. Fract 133, 247.

[8] Haibach, E. Service fatigue strength - methods and data for structural analysis (in German), Springer Verlag, Berlin (2002).

[9] Lazzarin, P., Berto, F. , Radaj, D. (2006). Proc. IFC9, Atlanta, USA. On CD Rom.

[10] Lazzarin, P., Berto, F. Control volumes and strain energy density etc, submitted.

[11] Hobbacher, A. (Ed. ). Fatigue design of welded joints and components, Abington Publishing, Cambridge 2005 (updated edn. ). Weld toe Weld root.
