Repair of Cracked Structures under Dynamic Load Using Electromechanical Admittance Approach

Abstract:

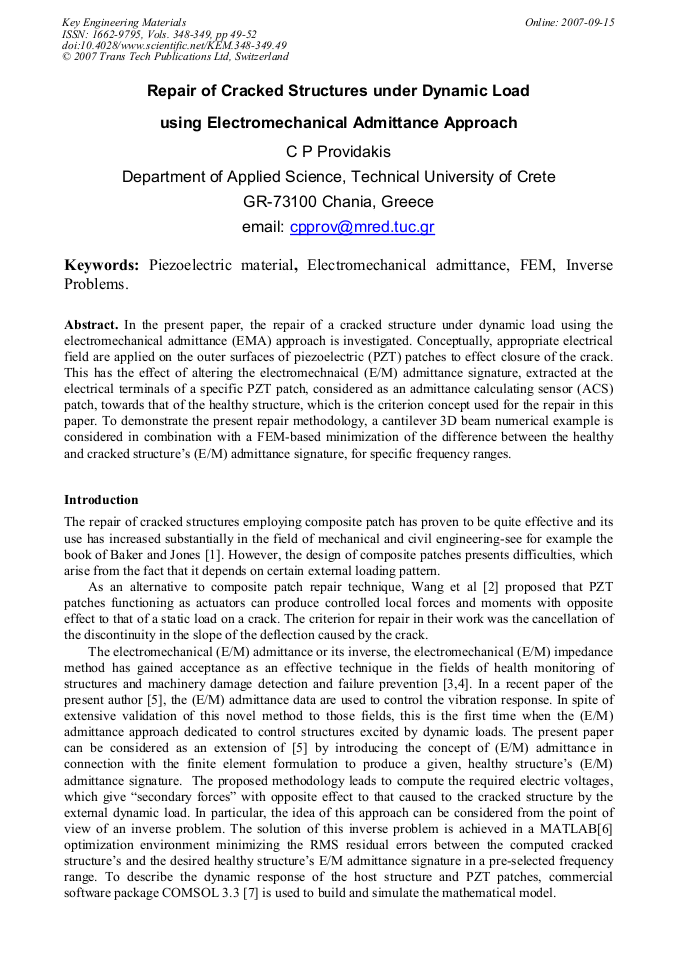

Article Preview

In the present paper, the repair of a cracked structure under dynamic load using the electromechanical admittance (EMA) approach is investigated. Conceptually, appropriate electrical field are applied on the outer surfaces of piezoelectric (PZT) patches to effect closure of the crack. This has the effect of altering the electromechnaical (E/M) admittance signature, extracted at the electrical terminals of a specific PZT patch, considered as an admittance calculating sensor (ACS) patch, towards that of the healthy structure, which is the criterion concept used for the repair in this paper. To demonstrate the present repair methodology, a cantilever 3D beam numerical example is considered in combination with a FEM-based minimization of the difference between the healthy and cracked structure’s (E/M) admittance signature, for specific frequency ranges.

Info:

Periodical:

Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel

Pages:

49-52

Citation:

C. P. Providakis, "Repair of Cracked Structures under Dynamic Load Using Electromechanical Admittance Approach", Key Engineering Materials, Vols. 348-349, pp. 49-52, 2007

Online since:

September 2007

Export:

Price:

$38.00

[1] A.A. Baker and R. Jones: Bonded repair of an aircraft structure (Martinus-Nijhoff Publishers, The Netherlands 1988).

[2] Q. Wang, S.T. Quek and K.M. Liew: On the repair of a cracked beam with a piezoelectric patch, Smart Mater. Struct. Vol. 11 (2002), p.404.

[3] C.A. Rogers and V. Giurgintin: Electro-mechanical (E/M) Impedance Technique for Structural Health Monitoring and Non-Destractive Evaluation, Invention Disclosure No. 97162, University of South Carolina, Office of Technology Transfer (1997).

[4] V. Giurgintin and C.A. Rogers: Modeling of the electro-mechanical (E/M) impedance method applied a composite beam, Report #USC-ME-CAMSS-99-105" (1999).

[5] C. Providakis: Development of an electromechanical admittance approach for application in vibration control of intelligent structures, Smart Mater. Struct. Vol. 16 (2007).

[6] MATLAB, The Mathworks Inc. Users Guide, www. mathworks. com, U.S. (2005).

[7] COMSOL 3. 2a Ltd., Comsol Multiphysics Modeling 3. 2a Users Guide, London (2006).

[8] J.W. Kim, V.V. Varadan and V.K. Varadan: Finite element modeling of structures including piezoelectric active devices, Int J. Num. Meth. Engng., 40, (1997), pp.1-16.

DOI: https://doi.org/10.1002/(sici)1097-0207(19970315)40:5<817::aid-nme90>3.0.co;2-b

[9] C.P. Providakis, D. -P.N. Kontoni, M.E. Voutetaki and M.E. Stavroulaki: FEM Modeling of electromechanical impedance for the analysis of smart damping treatments, CISSE05 , (2005).

DOI: https://doi.org/10.12989/sss.2008.4.1.035
