A Probabilistic Extended Finite Element Approach: Application to the Prediction of Bone Crack Propagation

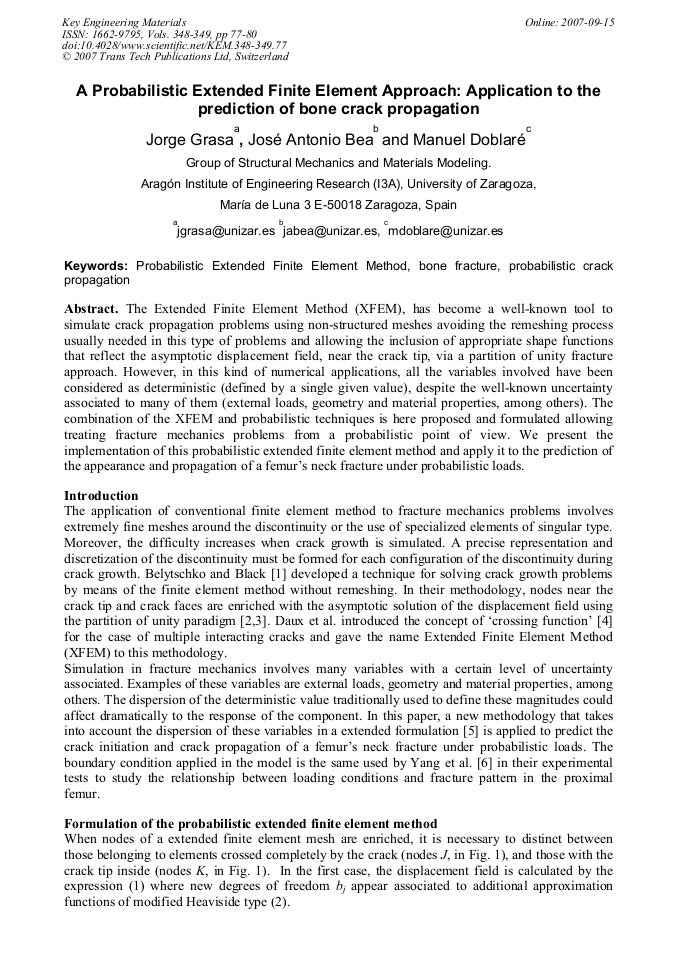

Article Preview

The Extended Finite Element Method (XFEM), has become a well-known tool to simulate crack propagation problems using non-structured meshes avoiding the remeshing process usually needed in this type of problems and allowing the inclusion of appropriate shape functions that reflect the asymptotic displacement field, near the crack tip, via a partition of unity fracture approach. However, in this kind of numerical applications, all the variables involved have been considered as deterministic (defined by a single given value), despite the well-known uncertainty associated to many of them (external loads, geometry and material properties, among others). The combination of the XFEM and probabilistic techniques is here proposed and formulated allowing treating fracture mechanics problems from a probabilistic point of view. We present the implementation of this probabilistic extended finite element method and apply it to the prediction of the appearance and propagation of a femur’s neck fracture under probabilistic loads.



Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel




J. Grasa et al., "A Probabilistic Extended Finite Element Approach: Application to the Prediction of Bone Crack Propagation", Key Engineering Materials, Vols. 348-349, pp. 77-80, 2007

Online since:

September 2007




[1] Belytschko T. and Black T. Elastic crack growth in finite elements with minimal remeshing. International Journal for Numerical Methods in Engineering. 45: 601-620, (1999).

DOI: https://doi.org/10.1002/(sici)1097-0207(19990620)45:5<601::aid-nme598>3.0.co;2-s

[2] Melenk, J. M. and Babuska, I. The partition of unity finite element method: basic theory and applications. Comput. Methods Appl. Mech. Engng 139, 289-314, (1996).

DOI: https://doi.org/10.1016/s0045-7825(96)01087-0

[3] Babuska, I. and Melenk, J. M. The partition of unity method: basic theory and applications. Int. J. Numer. Methods Engng 40, 727-758, (1997).

DOI: https://doi.org/10.1002/(sici)1097-0207(19970228)40:4<727::aid-nme86>3.0.co;2-n

[4] Daux, C., Moes, N., Dolbow, J., Sukuman, N. and Belytschko, T. () Arbitray branched and intersecting cracks with the extended finite element method. Int. J. Numer. Methods Engng 48, 1741-1760, (2000).

DOI: https://doi.org/10.1002/1097-0207(20000830)48:12<1741::aid-nme956>3.0.co;2-l

[5] Grasa J., Bea J. A., Rodríguez J. F. and Doblaré M. The perturbation method and the extended finite element method. An application to fracture mechanics problems. Fatigue & Fracture of Engineering Materials & Structures 29, 1-7, (2006).

DOI: https://doi.org/10.1111/j.1460-2695.2006.01028.x

[6] Yang, K. H., Shen, K. L., Demetropoulos, C. K., King, A. I., Kolodziej, P., Levine, R. S., and Fitzgerald, R. H. The relationship between loading conditions and fracture patterns of the proximal femur. Journal of Biomechanical Engineering, 118: 575-578. (1996).

DOI: https://doi.org/10.1115/1.2796045

[7] Hisada, T. y Nakagiri, S. Stochastic Finite element method developed for structural safety and reliability. Proceedings of the 3rd International Conference on Structural Safety and Reliability, Elsevier, Amsterdam, pages 395-408, (1981).

[8] Moes, N., Dolbow, J. and Belytschko, T. A finite element method for crack growth without remeshing. Int. J. Numer. Methods Engng 46, 131-150, (1999).

DOI: https://doi.org/10.1002/(sici)1097-0207(19990910)46:1<131::aid-nme726>3.3.co;2-a
