Fracture Analysis on the Invasion Problem of the Porous Material

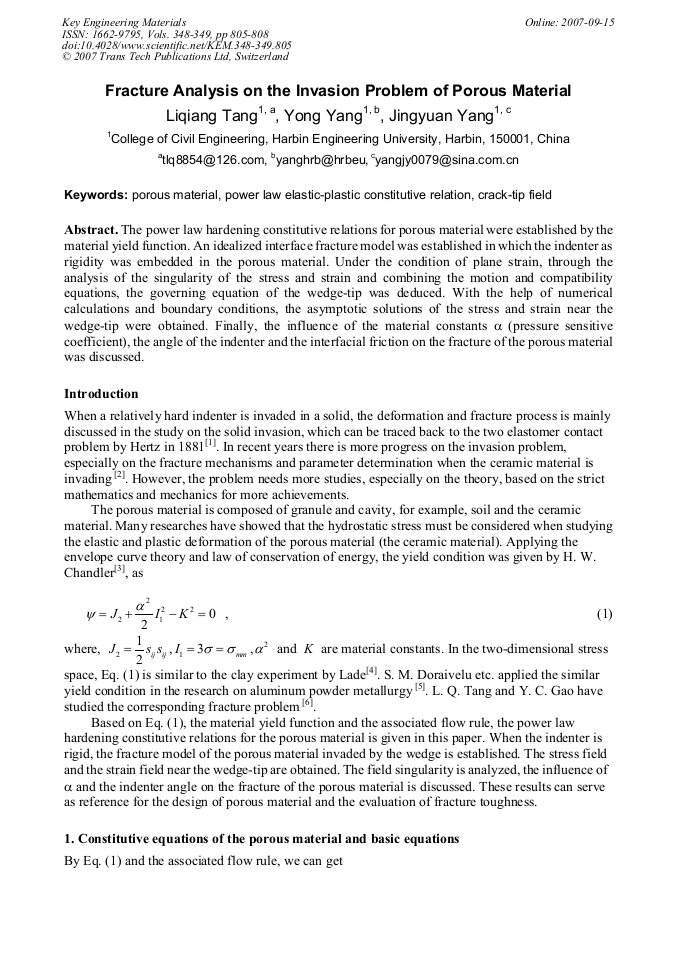

Article Preview

The power law hardening constitutive relations for porous material were established by the material yield function. An idealized interface fracture model was established in which the indenter as rigidity was embedded in the porous material. Under the condition of plane strain, through the analysis of the singularity of the stress and strain and combining the motion and compatibility equations, the governing equation of the wedge-tip was deduced. With the help of numerical calculations and boundary conditions, the asymptotic solutions of the stress and strain near the wedge-tip were obtained. Finally, the influence of the material constants α (pressure sensitive coefficient), the angle of the indenter and the interfacial friction on the fracture of the porous material was discussed.



Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel




L. Q. Tang et al., "Fracture Analysis on the Invasion Problem of the Porous Material", Key Engineering Materials, Vols. 348-349, pp. 805-808, 2007

Online since:

September 2007




[1] Zhang Z. X. and Kou S. Q.: Advances in Mechanics, Vol. 22 (1992), p.183 (in Chinese).

[2] Evans A. G.: J. Am. Ceram. Soc. Vol. 73 (1990), p.187.

[3] Chandler H. W.: IUTAM Symposium on Anisotropy Inhomegeneity and Nonlinearity in Solid Mechanics, D.F. Parker and A.H. England Eds. (1995), p.235.

[4] Lade P. V.: Int. J. solid and structures, Vol. 13 (1977), p.1019.

[5] Doraivelu S. M.: Int. J. Mater. Sci., Vol. 26 (1984), p.527.

[6] Tang L. Q. and Gao Y. C.: Proc. Int. Conf . on nonlinear mech. Shanghai, China, (1985), p.1318.

[7] Durban D. and Rand O.: J. Appl. Mech. Vol. 58 (1991), p.910. Fig. 2 Angular variations of the stresses ( 0 0 60=θ and 0 0 30=θ ).
