Applicability of Sub-Size Charpy Specimens to Transition Behaviour of RPV Materials

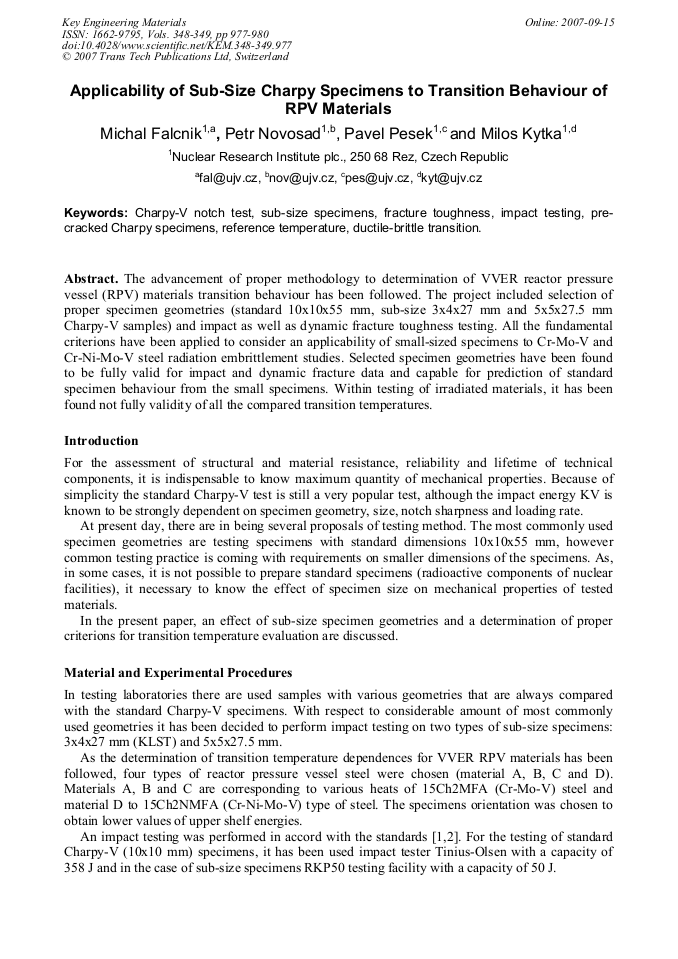

Article Preview

The advancement of proper methodology to determination of VVER reactor pressure vessel (RPV) materials transition behaviour has been followed. The project included selection of proper specimen geometries (standard 10x10x55 mm, sub-size 3x4x27 mm and 5x5x27.5 mm Charpy-V samples) and impact as well as dynamic fracture toughness testing. All the fundamental criterions have been applied to consider an applicability of small-sized specimens to Cr-Mo-V and Cr-Ni-Mo-V steel radiation embrittlement studies. Selected specimen geometries have been found to be fully valid for impact and dynamic fracture data and capable for prediction of standard specimen behaviour from the small specimens. Within testing of irradiated materials, it has been found not fully validity of all the compared transition temperatures.



Key Engineering Materials (Volumes 348-349)

Edited by:

J. Alfaiate, M.H. Aliabadi, M. Guagliano and L. Susmel




M. Falcnik et al., "Applicability of Sub-Size Charpy Specimens to Transition Behaviour of RPV Materials", Key Engineering Materials, Vols. 348-349, pp. 977-980, 2007

Online since:

September 2007




[1] ISO 14 556: Steel - Charpy V-notch pendulum impact test - Instrumented test method, First edition, (2000).

DOI: 10.3403/02052562

[2] Proposed standard method for instrumented impact testing of sub-size Charpy V-notch specimens of steels, ESIS-TC5, Draft 10, (2002).

DOI: 10.1520/stp14398s

[3] Bohme, W., Schmitt, W.: Comparison of Results of Instrumented Charpy and Mini-Charpy Tests with Different RPV-steels, Small Specimen Test Techniques, ASTM STP 1329, W. R. Corwin, S. T. Rosinski, and E. van Walle, Eds., American Society for Testing and Materials, (1998).

DOI: 10.1520/stp37981s

[4] Korolev, Yu. N., Kryukov, A. M., Nikolaev, Yu. A., Platonov, P. A., Shtrombakh, Ya. I., Langer, R., Leitz, C., Reig, C. -Y.: Assessment of irradiation response of WWER-440 welds using samples taken from Novovoronezh unit 3 and 4 reactor pressure vessels. Nuclear Engineering and Design 185 (1998).

DOI: 10.1016/s0029-5493(98)00226-x

[5] Lucon, E., Chaouadi, R., Fabry, A., Puzzolante, J. -L., and van Walle, E.: Characterizing Material Properties by the Use of Full-Size and Subsize Charpy Tests" An Overview of Different Correlation Procedures, Pendulum Impact Testing: A Century of Progress, ASTM STP 1380, T. A. Siewert and M. P. Manahan, Sr., Eds., American Society for Testing and Materials, West Conshohocken, PA, (2000).

DOI: 10.1520/stp14392s
