Synthesis and Characterization of Li[Ni(1/3-x)Mn(1/3-x)Co(1/3-x)Mx]O2(M=Fe,Mg,Al) Particle by Aerosol Process

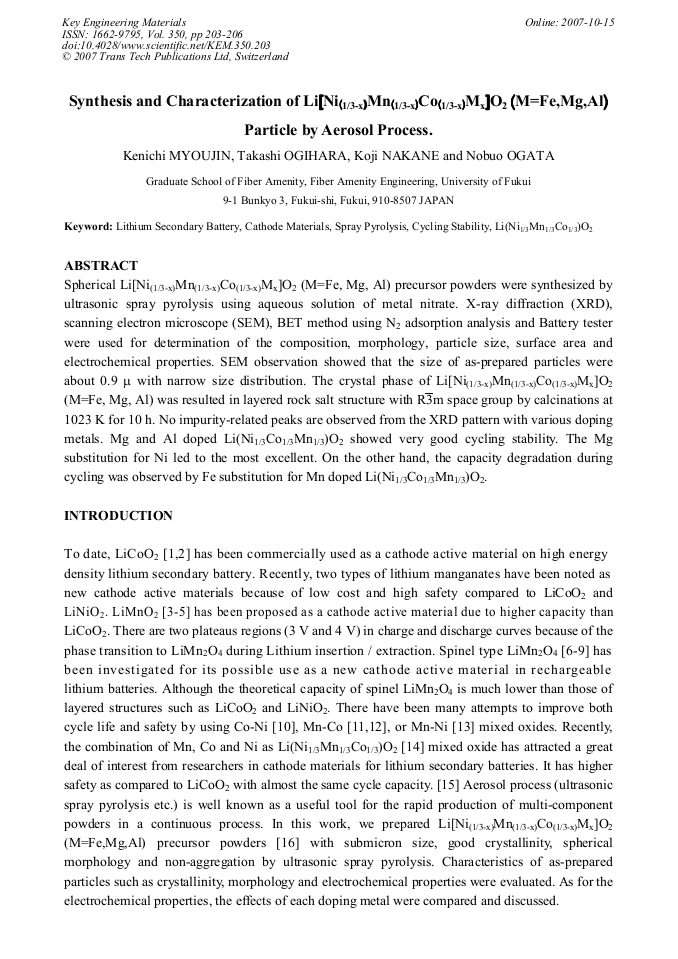

Article Preview

Spherical Li[Ni(1/3-x)Mn(1/3-x)Co(1/3-x)Mx]O2 (M=Fe, Mg, Al) precursor powders were synthesized by ultrasonic spray pyrolysis using aqueous solution of metal nitrate. X-ray diffraction (XRD), scanning electron microscope (SEM), BET method using N2 adsorption analysis and Battery tester were used for determination of the composition, morphology, particle size, surface area and electrochemical properties. SEM observation showed that the size of as-prepared particles were about 0.9 μ with narrow size distribution. The crystal phase of Li[Ni(1/3-x)Mn(1/3-x)Co(1/3-x)Mx]O2 (M=Fe, Mg, Al) was resulted in layered rock salt structure with R3m space group by calcinations at 1023 K for 10 h. No impurity-related peaks are observed from the XRD pattern with various doping metals. Mg and Al doped Li(Ni1/3Co1/3Mn1/3)O2 showed very good cycling stability. The Mg substitution for Ni led to the most excellent. On the other hand, the capacity degradation during cycling was observed by Fe substitution for Mn doped Li(Ni1/3Co1/3Mn1/3)O2.



Edited by:

K. Katayama, K. Kato, T. Takenaka, M. Takata and K. Shinozaki




K. Myoujin et al., "Synthesis and Characterization of Li[Ni(1/3-x)Mn(1/3-x)Co(1/3-x)Mx]O2(M=Fe,Mg,Al) Particle by Aerosol Process", Key Engineering Materials, Vol. 350, pp. 203-206, 2007

Online since:

October 2007




[1] M. Mizushima, P. C. Jones, P. J. Wiseman, and J. B. Goodenough, Mat. Res. Bull., 15 (1980) , p.783.

[2] C. Delmas, J. J. Braconnier, and P. Hagenmuller, Mat. Res. Bull., 17 (1982), p.117.

[3] T. Ohzuku, A. Umeda, and T. Hirai, Chemistry Express, 7 (1992) , p.193.

[4] J. N. Reimer, E. W. Fuller, E. Rossen, and J. R. Dohn, J. Electrochem. Soc., 140 (1993), p.3396.

[5] M. Tabuchi, K. Ado, C. Masquelier, I. Matsubara, H. Sakabe, H. Kageyama, H. Kobayashi, R. Kanno, and O. Nakamura, Solid State Ionics, 89 (1996) , p.53.

[6] R. J. Gummow and M. M. Thackeray, J. electrochem. Soc., 141 (1994), p.1178.

[7] J. N. Reimers, E. W. Fuller, E. Rossen, and J. R. Dahn, J. electrochem. Soc., 140(1994), p.3397.

[8] J. M. Trascon, E. Wang, F. K. Shokoohi, W. R. Mckinnon, and S. Colson, J. electrochem. Soc., 138 (1991), p.2859.

[9] M. Yoshio, H. Noguchi, H. Nakamura, K. Isono, T. Mouri, and M. Okada, Denki Kagaku (presently Electrochemistry), 63 (1995), p.67.

[10] C. Delma, I. Saadoune, Solid State Ionics, 370 (1992), p.53.

[11] R. Stoyanova, E. Zhecheva, L. Zarcova, , Solid State Ionics, 233 (1994), p.73.

[12] N. Iltchev, W. Bowden, P. R. Moses, Electrochem. Soc., 235 (1996), p.96.

[13] K. Uchitomi, A. Ueda, S. Aoyama, The 43rd Battery Symposium in Japan, October (2002), p.142.

[14] Y. M. Todorov, K. Numata, Electrochimica Acta, 50 (2004), p.495.

[15] S. Levaesseru, M. Menetrier, C. Delmas, J. electrochem. Soc., 149 (2002), p.1533.

[16] G. -H. Kim, S. -T. Myung, H. -S. Kim, Y. -K. Sun, Electrochimica Acta, 51 (2006), p.2447. e-mail: ogihara@matse. fukui-u. ac. jp Fax: 0776-27-8624.
