Defects and Leakage Current in PbTiO3 Single Crystals

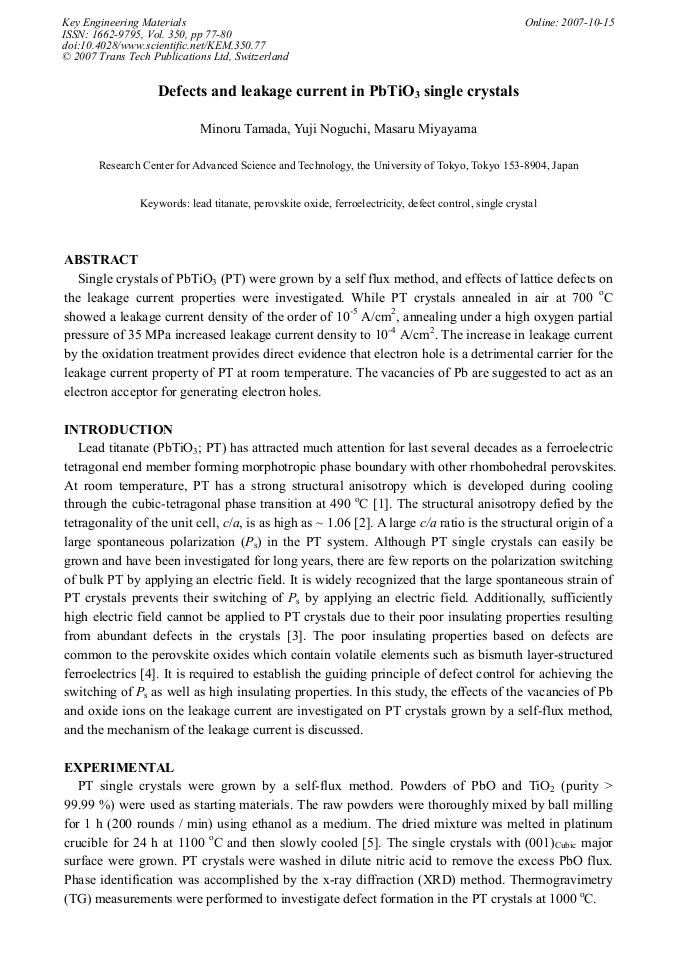

Article Preview

Single crystals of PbTiO3 (PT) were grown by a self flux method, and effects of lattice defects on the leakage current properties were investigated. While PT crystals annealed in air at 700 oC showed a leakage current density of the order of 10-5 A/cm2, annealing under a high oxygen partial pressure of 35 MPa increased leakage current density to 10-4 A/cm2. The increase in leakage current by the oxidation treatment provides direct evidence that electron hole is a detrimental carrier for the leakage current property of PT at room temperature. The vacancies of Pb are suggested to act as an electron acceptor for generating electron holes.



Edited by:

K. Katayama, K. Kato, T. Takenaka, M. Takata and K. Shinozaki




M. Tamada et al., "Defects and Leakage Current in PbTiO3 Single Crystals", Key Engineering Materials, Vol. 350, pp. 77-80, 2007

Online since:

October 2007




[1] H. D. Megaw,: Proc. Phys. Soc. London, 58, 133 (1946).

[2] G. Shirane and S. Hoshino, J. Phys. Soc. Japan, 6, 265-270 (1951).

[3] Z. Zhang, P. Wua, L. Lu and C. Shu, Appl. Phys. Lett., 88, 142902 (2006).

[4] Y. Noguchi, T. Matsumoto and M. Miyayama, Jpn. J. Appl. Phys., 44, L 570-L 572 (2005).

[5] H. Okino, T. Ida, H. Ebihara, H. Yamada, K. Matsushige and T. Yamamoto, Jpn. J. Appl. Phys., 40, 5828-5832 (2001).

[6] G. Shirane, R. Pepinsky and B.C. Frazer, Acta Cryst., 9, 131 (1956).

[7] M. V. Raymond and D. M. Smyth, J. Phys. Chem. Solids, 57, 1507-1511 (1996).

[8] M. Takahashi, Y. Noguchi and M. Miyayama, Jpn. J. Appl. Phys., 41, 7053-7056 (2002).

[9] G. A. Smolenskii, V. A. Isupov and A. I. Agranovskaya, Sov. Phys. Solid State, 3, 651 (1961).

[10] E. C. Subbarao, Physical Review, 122, 804-807 (1961).
