Thermomechanical Properties of Nanosilica Reinforced PEEK Composites

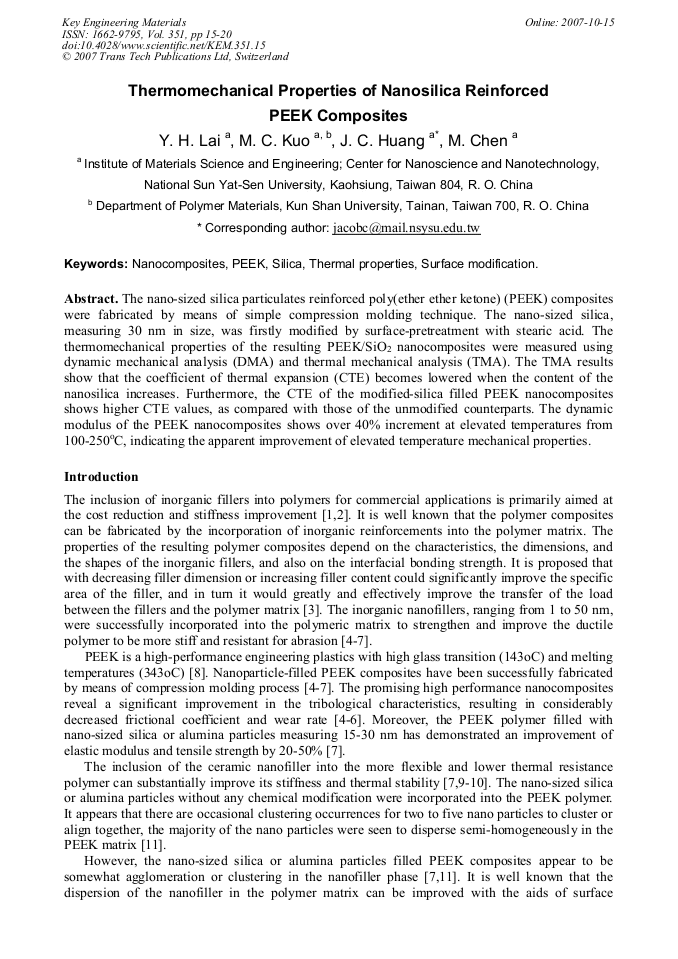

Article Preview

The nano-sized silica particulates reinforced poly(ether ether ketone) (PEEK) composites were fabricated by means of simple compression molding technique. The nano-sized silica, measuring 30 nm in size, was firstly modified by surface-pretreatment with stearic acid. The thermomechanical properties of the resulting PEEK/SiO2 nanocomposites were measured using dynamic mechanical analysis (DMA) and thermal mechanical analysis (TMA). The TMA results show that the coefficient of thermal expansion (CTE) becomes lowered when the content of the nanosilica increases. Furthermore, the CTE of the modified-silica filled PEEK nanocomposites shows higher CTE values, as compared with those of the unmodified counterparts. The dynamic modulus of the PEEK nanocomposites shows over 40% increment at elevated temperatures from 100-250oC, indicating the apparent improvement of elevated temperature mechanical properties.



Main Theme:

Edited by:

Di Zhang, Jingkun Guo and Chi Y. A. Tsao




Y.H. Lai et al., "Thermomechanical Properties of Nanosilica Reinforced PEEK Composites", Key Engineering Materials, Vol. 351, pp. 15-20, 2007

Online since:

October 2007




[1] R. N. Rothon: Adv. Polymer Sci. Vol. 139 (1999), p.67.

[2] R. N. Rothon: Adhesion Vol. 64 (1997), P. 87.

[3] M. Sumita, T. Shizuma, K. Miyasaka, and K. Ishikawa: Journal of Macromolecular Science, Physics Vol. B22 (1983), p.601.

[4] Qi-Hua Wang, Jinfen Xu, Weichang Shen, and Weimin Liu: Wear Vol. 196 (1996), p.82.

[5] Qi-Hua Wang, Qunji Xue, Hurwen Liu, Weichang Shen, and Jinfen Xu: Wear Vol. 198 (1996), p.216.


[6] Qi-Hua Wang, JinFex Xu, Weichang Shen, and Qunji Xue: Wear Vol. 209 (1997), p.316.

[7] M. C. Kuo, C. M. Tsai, J. C Huang, and M. Chen: Materials Chemistry and Physics Vol. 90 (2005), p.185.

[8] T. E. Attwood, P. C. Dawson, J. L. Freeman, L. R. J. Hoy, J. B. Rose, and P. A. Staniland: Polymer Vol. 22 (1981), p.1096.


[9] P. K. Goyal, Y. S. Negi, and A. N. Tiwari: European Polymer Journal Vol. 41 (2005), p. (2034).

[10] P. Cassagnau: Polymer Vol. 44 (2003), p.2455.

[11] M. C. Kuo, J. C Huang, and M. Chen: Materials Chemistry and Physics Vol. 100 (2006), on line.

[12] S. H. Ahn, S. H. Kim, and S. G. Lee: Journal of Applied Polymer Science Vol. 94 (2004), p.812.

[13] V. A. Soloukhin, W. Posthumus, J.C.M. Brokken-Zijp, J. Loos, and G. de With: Polymer Vol. 43 (2002), p.6169.


[14] C. M. Liauw, C. G. Lees, S. J. Hurst, and S. Ali: Composites Vol. A 29 (1998), p.1313.
