Fabrication of Ceramic-Metal Composites by Melt Infiltration of Moso-Bamboo-Derived Porous SiC

Abstract:

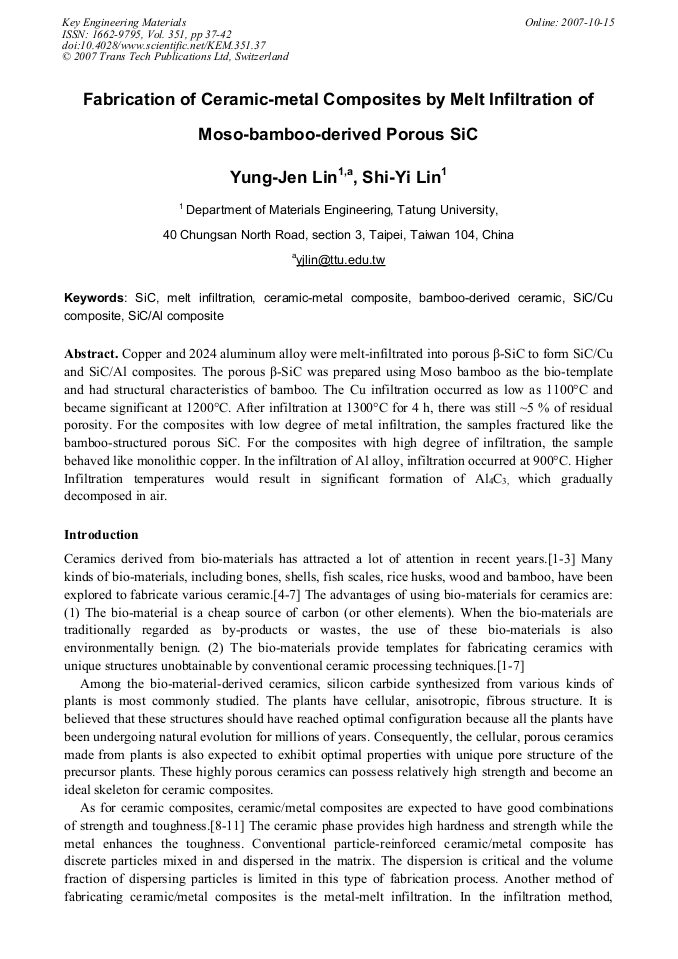

Article Preview

Copper and 2024 aluminum alloy were melt-infiltrated into porous β-SiC to form SiC/Cu and SiC/Al composites. The porous β-SiC was prepared using Moso bamboo as the bio-template and had structural characteristics of bamboo. The Cu infiltration occurred as low as 1100°C and became significant at 1200°C. After infiltration at 1300°C for 4 h, there was still ~5 % of residual porosity. For the composites with low degree of metal infiltration, the samples fractured like the bamboo-structured porous SiC. For the composites with high degree of infiltration, the sample behaved like monolithic copper. In the infiltration of Al alloy, infiltration occurred at 900°C. Higher Infiltration temperatures would result in significant formation of Al4C3, which gradually decomposed in air.

Info:

Periodical:

Main Theme:

Edited by:

Di Zhang, Jingkun Guo and Chi Y. A. Tsao

Pages:

37-42

Citation:

Y. J. Lin and S. Y. Lin, "Fabrication of Ceramic-Metal Composites by Melt Infiltration of Moso-Bamboo-Derived Porous SiC", Key Engineering Materials, Vol. 351, pp. 37-42, 2007

Online since:

October 2007

Export:

Price:

$38.00

[1] J. Martinez-Fernandez, F.M. Valera-Feria and M. Singh, Scripta Mater., vol. 43 (2000), p.813.

[2] N.H. Thomson, B.L. Smith, G.D. Stucky, D.E. Morse and P.K. Hansma, Mater. Sci. and Eng. Vol. C7 (1999), p.37.

[3] J.M. Qian, J.P. Wang, G.J. Qiao and Z.H. Jin, Preparation of porous SiC ceramic with a woodlike microstructure by sol-gel and carbothermal reduction processing, J. Eur. Ceram. Soc., vol. 24 (2004), pp.3251-3259.

DOI: https://doi.org/10.1016/j.jeurceramsoc.2003.10.042

[4] B. Chen, X. Peng, J. G Wang and S. Wu, Laminated microstructure of Bivalva shell and research of biomimetic ceramic, Ceram. Int. vol. 30 (2004), p.2011-(2014).

DOI: https://doi.org/10.1016/j.ceramint.2003.12.169

[5] V. Rodriguez-Lugo, E. Rubio, I. Gomez, L. Torres-Martinez and V.M. Castano, Synthesis of silicon carbide from rice husk, Int. J. Environ. Pollut., vol. 18 (2002), pp.378-387.

DOI: https://doi.org/10.1504/ijep.2002.003734

[6] J.M. Qian, Z.H. Jin and X.W. Wang, Porous SiC ceramics fabricated by reactive infiltration of gaseous silicon into charcoal, Ceram. Int., vol. 30 (2004), pp.947-951.

DOI: https://doi.org/10.1016/j.ceramint.2003.11.001

[7] Y. -J. Lin and Y. -H. Chiu, Fabrication of Silicon Carbide from Bamboo Carbon Templates, The 6th Pacific Rim Conf. on Ceram. and Glass Tech., Maui, Hawaii, Sept. 11-16, 2005, paper No.: PACRIM-S10-32-(2005).

[8] E. Breval: Composite Eng., vol. 5 (1995), p.1127.

[9] I.A. Ibrahim, F.A. Mohamed and W.J. Laverns: J. Mater. Sci., vol. 26 (1991), p.1137.

[10] N.A. Travitzky: Mater. Lett., vol. 36 (1998), p.114.

[11] N.A. Travitzky, E.Y. Gutmanas and N. Claussen: Mater. Lett., vol. 33 (1997), p.47.

[12] Y. -J. Lin and L. -B. Chang, Alumina/Glass Composites Fabricated by Melt-infiltration of Glass into Porous Alumina, Key Eng. Mater., vol. 313 (2006), p.129.

DOI: https://doi.org/10.4028/www.scientific.net/kem.313.129

[13] Y. -J. Lin and T. -H. Shen, Pressureless Infiltration of porous Al2O3/Ni Compacts with 6061 Al Alloy, Key Eng. Mater., vol. 249 (2003), p.37.

DOI: https://doi.org/10.4028/www.scientific.net/kem.249.37

[14] P. Greil, T. Lifka and A. Kaindl, Biomorphic cellular silicon carbide ceramics from wood: I. Processing and microstructure, J. Eur. Ceram. Soc., vol. 18 (1998), p. (1961).

DOI: https://doi.org/10.1016/s0955-2219(98)00156-3
