Preparation and Electrical-Conductive Property of SnO2-Based Ceramics with 0.5% CuO and Sb2O3

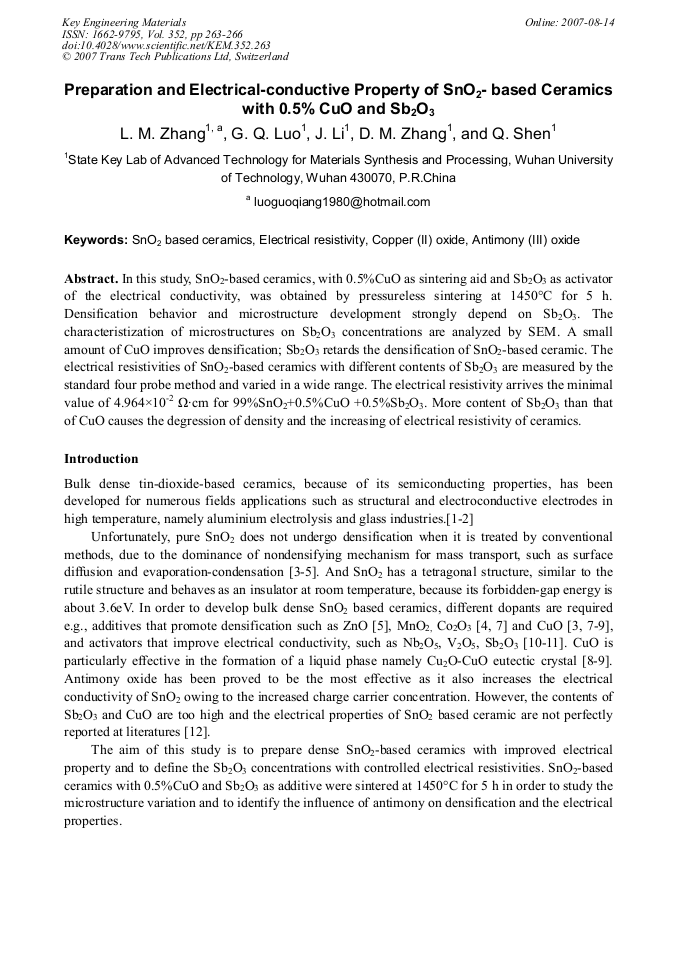

Article Preview

In this study, SnO2-based ceramics, with 0.5%CuO as sintering aid and Sb2O3 as activator of the electrical conductivity, was obtained by pressureless sintering at 1450°C for 5 h. Densification behavior and microstructure development strongly depend on Sb2O3. The characteristization of microstructures on Sb2O3 concentrations are analyzed by SEM. A small amount of CuO improves densification; Sb2O3 retards the densification of SnO2-based ceramic. The electrical resistivities of SnO2-based ceramics with different contents of Sb2O3 are measured by the standard four probe method and varied in a wide range. The electrical resistivity arrives the minimal value of 4.964×10-2 0·cm for 99%SnO2+0.5%CuO +0.5%Sb2O3. More content of Sb2O3 than that of CuO causes the degression of density and the increasing of electrical resistivity of ceramics.



Edited by:

Katsutoshi Komeya, Yohtaro Matsuo and Takashi Goto




L. M. Zhang et al., "Preparation and Electrical-Conductive Property of SnO2-Based Ceramics with 0.5% CuO and Sb2O3", Key Engineering Materials, Vol. 352, pp. 263-266, 2007

Online since:

August 2007




[1] W. Ziemba and B. Ziemba: Szklo i Cerm. Vol. 24 (1973), p.12.

[2] T. Chavatal and Sprechsaal Keram: Glass Baust B Vol. 107(1974), p.1057.

[3] P. H. Ducigneaud and D. Reighard, in: Science of Sintering, volume 12, edited by P. Vincenzini, Ceramurgia. Srl., Faenza, Italy, (1980), p.287.

[4] J.A. Cerri, E.R. Leite, D. Gouvea and E. Longo: J. Am. Ceram. Soc. Vol. 79(3) (1996), p.799.

[5] K. Kimura, S. Inada and T. Yamaguchi: J. Mater. Sci. Vol. 24(1989), p.220.

[6] J. A. Varela, J. A. Cerri, E. R. Leite, E. Longo, M. Shamsuzzoha and R.C. Bradt: Ceram. Int. Vol. 25 (1999), p.253.

[7] C. V. Santilli, S.H. Pulcinelli G.E.S. Brito and V. Briois: J. Phys. Chem. B Vol. 103(1999), p.2660.

[8] N. Dolet, J.M. Heintz, L. Rabardel, M. Onillon and J.P. Bonnet: J. Mat. Sci. Vol. 30(1995), p.365.

[9] J.P. Bonnet, N. Dolet and J. M. Heintz: J. Europ. Ceram. Soc. Vol. 16(1996), p.1163.

[10] D. R. Orolik, M. I. Iavanovskaya and A. CH. Gurlo: J. Anal. Chem. Vol. 52(1997), p.59.

[11] M.S. CAstro and C.M. Aldao: J. Europ. Ceram. Soc., Vol. 18(1998), p.2233.

[12] D. Nisiro, G. Fabbri, G. C. Celotti and A. Bellosi: J. Mat. Sci., Vol. 38(2003), p.2727.

[13] Z. M. Bo: J. Inorg. Mat. Vol. 5(4)(1990), p.326(in chinese).

[14] X. Q, Liu, H.N. Zhu, and Y.S. Shen: J. Inorg. Chem. Vol. 12 (2) (1996), p.130 (in Chinese).
