Solution Growth of Single Crystalline 6H-SiC from Si-Ti-C Ternary Solution

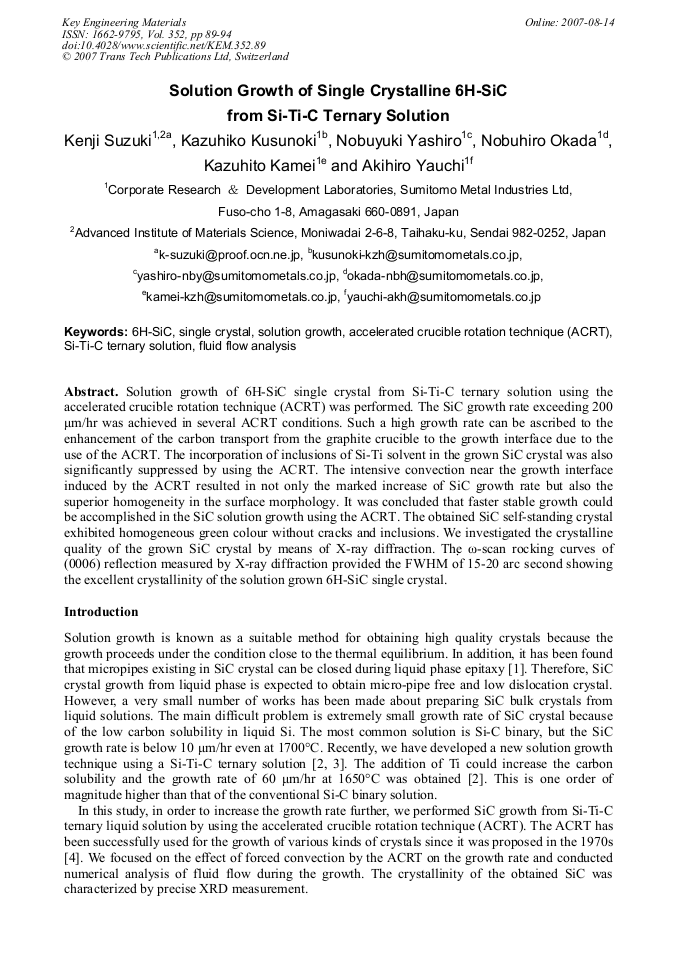

Article Preview

Solution growth of 6H-SiC single crystal from Si-Ti-C ternary solution using the accelerated crucible rotation technique (ACRT) was performed. The SiC growth rate exceeding 200 μm/hr was achieved in several ACRT conditions. Such a high growth rate can be ascribed to the enhancement of the carbon transport from the graphite crucible to the growth interface due to the use of the ACRT. The incorporation of inclusions of Si-Ti solvent in the grown SiC crystal was also significantly suppressed by using the ACRT. The intensive convection near the growth interface induced by the ACRT resulted in not only the marked increase of SiC growth rate but also the superior homogeneity in the surface morphology. It was concluded that faster stable growth could be accomplished in the SiC solution growth using the ACRT. The obtained SiC self-standing crystal exhibited homogeneous green colour without cracks and inclusions. We investigated the crystalline quality of the grown SiC crystal by means of X-ray diffraction. The, ω-scan rocking curves of (0006) reflection measured by X-ray diffraction provided the FWHM of 15-20 arc-second showing the excellent crystallinity of the solution grown 6H-SiC single crystal.



Edited by:

Katsutoshi Komeya, Yohtaro Matsuo and Takashi Goto




K. Suzuki et al., "Solution Growth of Single Crystalline 6H-SiC from Si-Ti-C Ternary Solution", Key Engineering Materials, Vol. 352, pp. 89-94, 2007

Online since:

August 2007




[1] R. Yakimova, Mtuominen, A.S. Bakin, J.O. Fornell, A. Vehanen and E. Janzén: Inst. Phys Conf. Ser. 142 (1996), p.101.

[2] K. Kusunoki, S. Munetoh, K. Kamei, M. Hasebe, T. Ujihara and K. Nakajima: Mater. Sci. Forum Vol. 457-460 (2004), p.123.


[3] K. Kusunoki, K. Kamei, Y. Ueda, S. Naga, Y. Ito, M. Hasebe, T . Ujihara and K. Nakajima: Mater. Sci. Forum Vol. 483-485 (2005), p.13.

[4] H.J. Scheel and E.O. Schulz-DuBois: J. Crystal Growth Vol. 8 (1971) p.304.

[5] D.H. Hofmann and M.H. Müller: Mater. Sci. Eng. B Vol. 61-62 (1999), p.29.

[6] K.A. Jackson, in Crystal Growth and Characterization, edited by R. Ueda and J. B. Mullin (North-Holland, Amsterdam, 1975), p.21.
