Dynamic Analysis and Three-Dimensional Finite Element Simulation of Cracked Gear


Article Preview

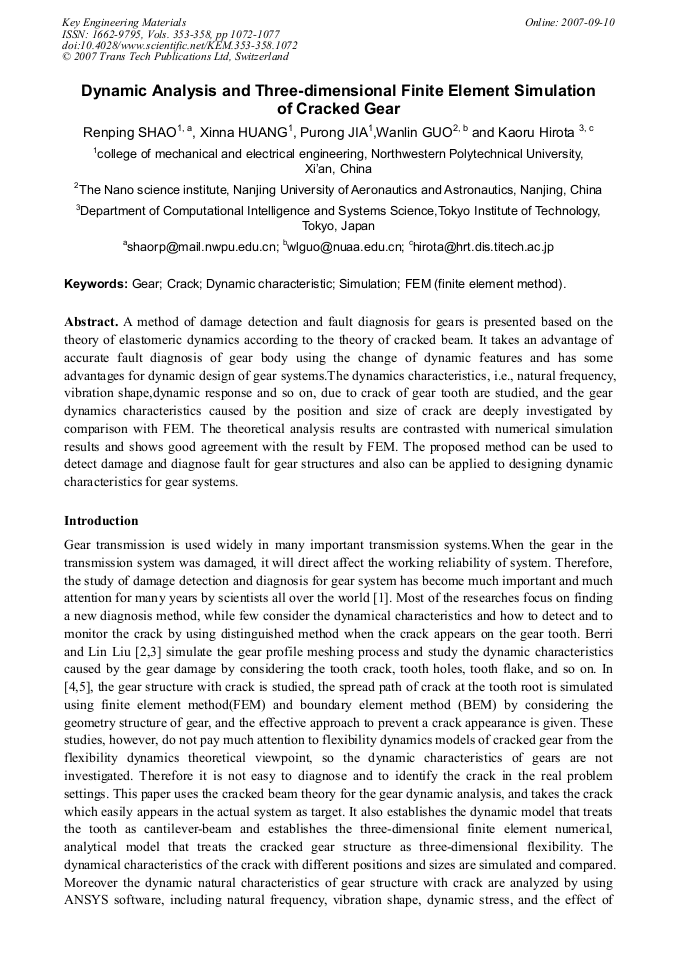

A method of damage detection and fault diagnosis for gears is presented based on the theory of elastomeric dynamics according to the theory of cracked beam. It takes an advantage of accurate fault diagnosis of gear body using the change of dynamic features and has some advantages for dynamic design of gear systems.The dynamics characteristics, i.e., natural frequency, vibration shape,dynamic response and so on, due to crack of gear tooth are studied, and the gear dynamics characteristics caused by the position and size of crack are deeply investigated by comparison with FEM. The theoretical analysis results are contrasted with numerical simulation results and shows good agreement with the result by FEM. The proposed method can be used to detect damage and diagnose fault for gear structures and also can be applied to designing dynamic characteristics for gear systems.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




R. P. Shao et al., "Dynamic Analysis and Three-Dimensional Finite Element Simulation of Cracked Gear", Key Engineering Materials, Vols. 353-358, pp. 1072-1077, 2007

Online since:

September 2007
