Fatigue Properties of Ni-Base Superalloy in Long Life Region


Article Preview

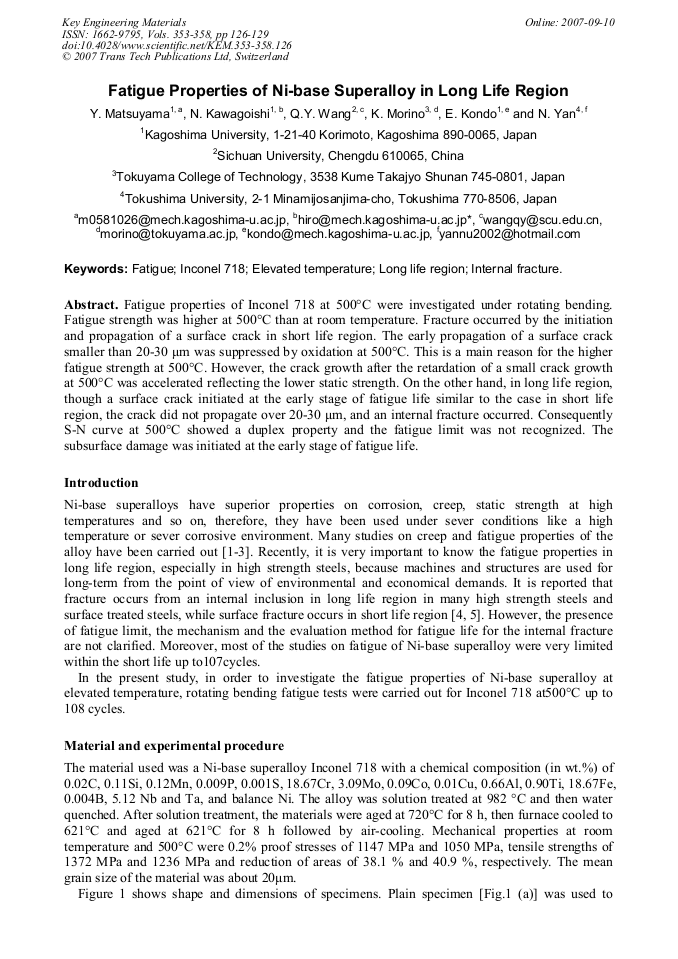

Fatigue properties of Inconel 718 at 500°C were investigated under rotating bending. Fatigue strength was higher at 500°C than at room temperature. Fracture occurred by the initiation and propagation of a surface crack in short life region. The early propagation of a surface crack smaller than 20-30 μm was suppressed by oxidation at 500°C. This is a main reason for the higher fatigue strength at 500°C. However, the crack growth after the retardation of a small crack growth at 500°C was accelerated reflecting the lower static strength. On the other hand, in long life region, though a surface crack initiated at the early stage of fatigue life similar to the case in short life region, the crack did not propagate over 20-30 μm, and an internal fracture occurred. Consequently S-N curve at 500°C showed a duplex property and the fatigue limit was not recognized. The subsurface damage was initiated at the early stage of fatigue life.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




Y. Matsuyama et al., "Fatigue Properties of Ni-Base Superalloy in Long Life Region", Key Engineering Materials, Vols. 353-358, pp. 126-129, 2007

Online since:

September 2007




[1] C.W. Brown, J.E. King, and M.A. Hicks, Metal Science, Vol. 18 (1984), p.374.

[2] H. Ghonem, and D. Zheng, Materials Science & Engineering, Vol. A150 (1992), p.151.

[3] N. Kawagoishi, Q. Chen. and H. Nisitani, Fatigue Fract. Engng Mater Struct., Vol. 23 (2000), p.209.

[4] C. Bathias, Fatigue Fract. Engng Mater Structt., Vol. 22 (1999), p.559.

[5] Y. Murakami, N. N. Yokoyama, and J. Nagata, Fatigue Fract. Engng. Mater. Struct., Vol. 25 (2002), p.735.

[6] K. Kobayashi, K. Yamaguchi, M. Hayakawa, and M. Kimura, Tetsu-to-Hagane, Vol. 90 (2004), p.33.

Fetching data from Crossref.
This may take some time to load.
