Investigation on Large-Sized Sapphire Crystalline Perfection by X-Ray Double-Crystal Diffraction Method

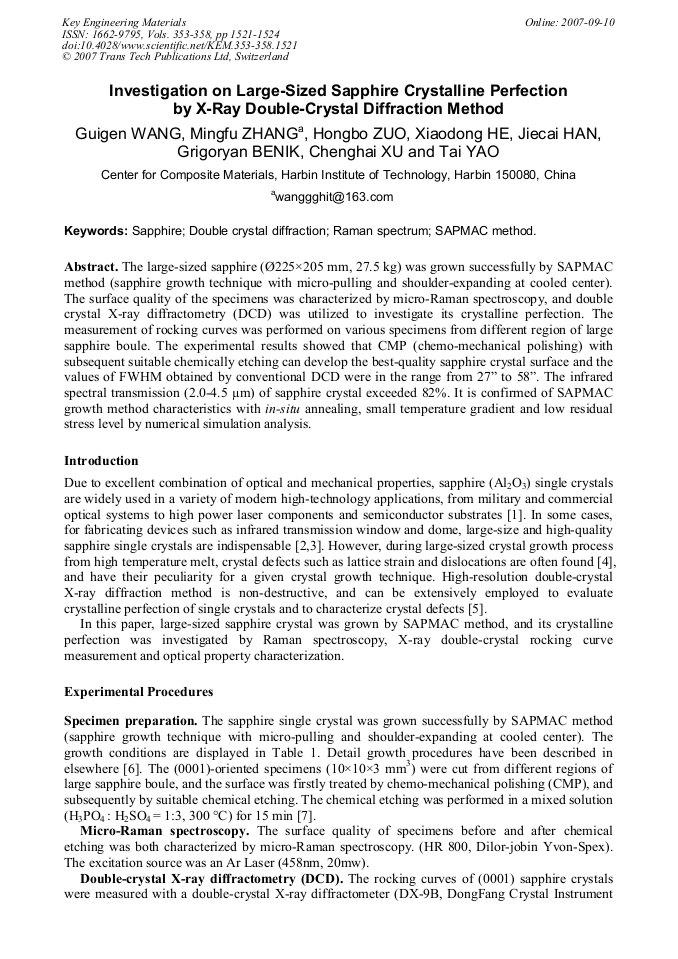

Article Preview

The large-sized sapphire (Ø225×205 mm, 27.5 kg) was grown successfully by SAPMAC method (sapphire growth technique with micro-pulling and shoulder-expanding at cooled center). The surface quality of the specimens was characterized by micro-Raman spectroscopy, and double crystal X-ray diffractometry (DCD) was utilized to investigate its crystalline perfection. The measurement of rocking curves was performed on various specimens from different region of large sapphire boule. The experimental results showed that CMP (chemo-mechanical polishing) with subsequent suitable chemically etching can develop the best-quality sapphire crystal surface and the values of FWHM obtained by conventional DCD were in the range from 27” to 58”. The infrared spectral transmission (2.0-4.5 5m) of sapphire crystal exceeded 82%. It is confirmed of SAPMAC growth method characteristics with in-situ annealing, small temperature gradient and low residual stress level by numerical simulation analysis.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




G. G. Wang et al., "Investigation on Large-Sized Sapphire Crystalline Perfection by X-Ray Double-Crystal Diffraction Method", Key Engineering Materials, Vols. 353-358, pp. 1521-1524, 2007

Online since:

September 2007




[1] P. Capper: Bulk Crystal Growth in Electronic, Optical and Optoelectronic Materials (John Wiley & Sons Inc Publications, American 2005).

[2] F. Schmid, C.P. Khattak, H.H. Rogers and D.M. Felt: SPIE Vol. 3705 (1999), p.70.

[3] J.B. Camp, G. Billingsley and W. Kells: SPIE Vol. 4679 (2002), p.1.

[4] R.A. Laudise: Crystal Growth and Characterization, edited by R. Ueda and J.B. Mullin, North-Holland, Amsterdam (1975).

[5] Krishan Lal, R.V. Anantha Murthy, Ashutosh Choubey, and N. Goswami: Crystal Growth Technology, edited by K. Byrappa and T. Ohachi, William Andrew Inc., Norich, NY (2003).

DOI: 10.1016/b978-081551453-4.50014-2

[6] J.C. Han, H.B. Zuo, S.H. Meng and M.F. Zhang, Patent CN200510010116. 4 (2006).

[7] Y.Z. Wang, S.L. Liu, S.M. Zhou and J. Xu: J. Cryst. Growth Vol. 274 (2005), p.241.

[8] D. Black, R. Polvani, L. Braun, B. Hockey and G. White: SPIE Vol. 3060 (1997), p.102.

[9] C.J. Karr: Infrared and Raman Spectroscopy of Lunar and Terrestrial Mineral (Academic Press, New York 1975).

[10] K. Lai: Key Engineering Materials Vol. 58 (1991), p.205.

[11] R. Kumaresan, R. Gopalakrishnan, S.M. Babu, P. Ramansamy, P. Zaumseil and M. Ichimura: J. Cryst. Growth Vol. 210 (2000), p.193.

[12] C.H. Xu, H.B. Zuo, S.Y. Du, S.H. Meng, J.C. Han, G. G Wang and M. F Zhang: J. Synth. Cryst 35 (2006).
