Investigation on Residual Stress and Crystallographic Texture of YSZ Films Prepared by EB-PVD

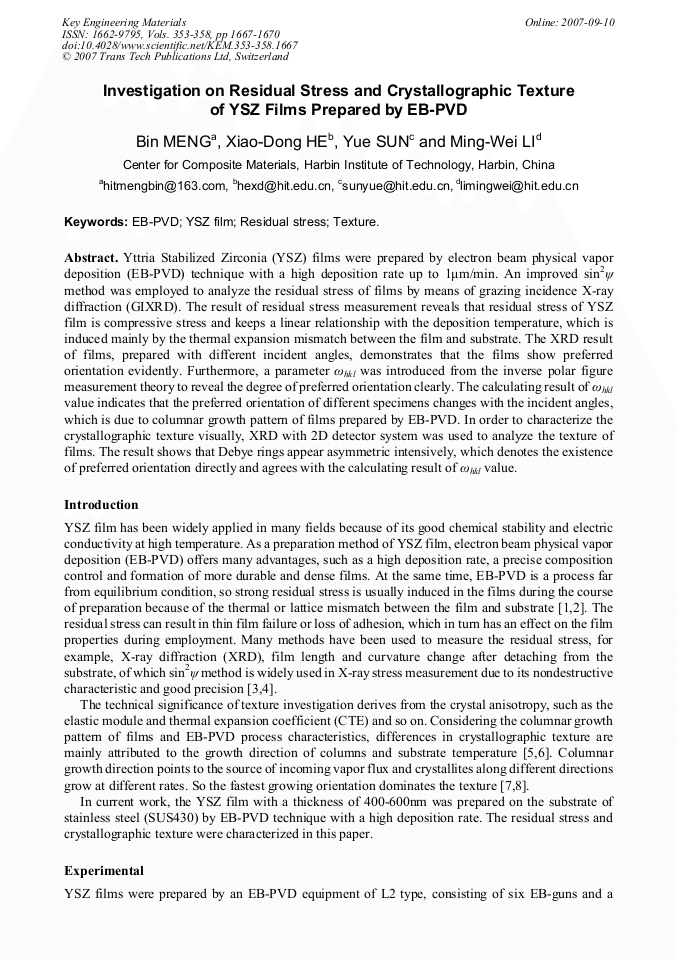

Article Preview

Yttria Stabilized Zirconia (YSZ) films were prepared by electron beam physical vapor deposition (EB-PVD) technique with a high deposition rate up to 1μm/min. An improved sin2ψ method was employed to analyze the residual stress of films by means of grazing incidence X-ray diffraction (GIXRD). The result of residual stress measurement reveals that residual stress of YSZ film is compressive stress and keeps a linear relationship with the deposition temperature, which is induced mainly by the thermal expansion mismatch between the film and substrate. The XRD result of films, prepared with different incident angles, demonstrates that the films show preferred orientation evidently. Furthermore, a parameter ωhkl was introduced from the inverse polar figure measurement theory to reveal the degree of preferred orientation clearly. The calculating result of ωhkl value indicates that the preferred orientation of different specimens changes with the incident angles, which is due to columnar growth pattern of films prepared by EB-PVD. In order to characterize the crystallographic texture visually, XRD with 2D detector system was used to analyze the texture of films. The result shows that Debye rings appear asymmetric intensively, which denotes the existence of preferred orientation directly and agrees with the calculating result of ωhkl value.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




B. Meng et al., "Investigation on Residual Stress and Crystallographic Texture of YSZ Films Prepared by EB-PVD", Key Engineering Materials, Vols. 353-358, pp. 1667-1670, 2007

Online since:

September 2007




[1] C.A. Johnson, J.A. Ruud, and R. Bruce: SURF COAT TECH 108-109 (1998), p, 80-85.

[2] P. Scardi, M. Leoni and L. Bertamini: SURF COAT TECH 76-77 (1995), p, 106-112.

[3] W.L. Li, W.D. Fei and T. Hanabusa: APPL SURF SCI 252 (2006), p, 2847-2852.

[4] P. Scardi, M. Clem and L. Bertamini: THIN SOLID FILMS 278 (1996), p, 96-103.

[5] K. Wada, M. Yoshiya, N. Yamaguchi and H. Matsubara: SURF COAT TECH 200 (2006), p, 2725- 2730.

[6] J.S. Bernier, G. Levan, M. Maniruzzaman: SURF COAT TECH 163-164 (2003), p, 95- 99.

[7] U. Schulz, S.G. Terry, C.G. Levi: MAT SCI ENG A 360 (2003), p, 319-329.

[8] K. Tang, C. Wang, Y. Huang and J. Xia: J EUR CERAM SOC 21 (2001), p, 617-620.

[9] W.L. Li, Y. Sun and W.D. Fei: APPL SURF SCI 252 (2006), p, 4995-5001.
