Development of Coating Material by In Situ Reaction Synthesis

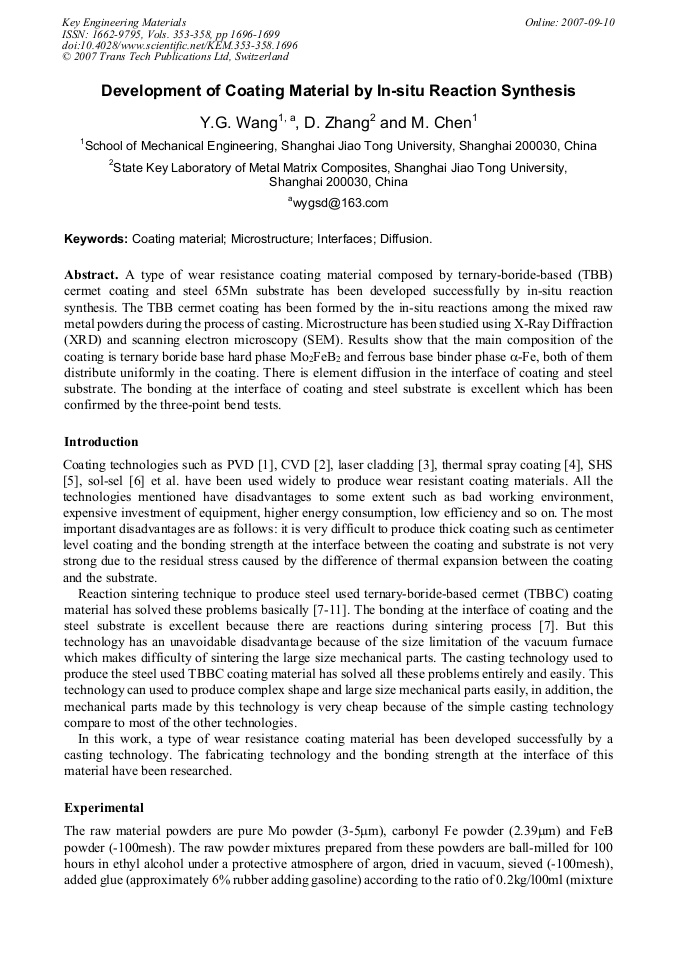

Article Preview

A type of wear resistance coating material composed by ternary-boride-based (TBB) cermet coating and steel 65Mn substrate has been developed successfully by in-situ reaction synthesis. The TBB cermet coating has been formed by the in-situ reactions among the mixed raw metal powders during the process of casting. Microstructure has been studied using X-Ray Diffraction (XRD) and scanning electron microscopy (SEM). Results show that the main composition of the coating is ternary boride base hard phase Mo2FeB2 and ferrous base binder phase α-Fe, both of them distribute uniformly in the coating. There is element diffusion in the interface of coating and steel substrate. The bonding at the interface of coating and steel substrate is excellent which has been confirmed by the three-point bend tests.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




Y.G. Wang et al., "Development of Coating Material by In Situ Reaction Synthesis", Key Engineering Materials, Vols. 353-358, pp. 1696-1699, 2007

Online since:

September 2007




[1] W.D. Sproul. Surface and Coatings Technology, Vol. 81, n1 (1996), pp.1-7.

[2] K.L. Choy. Progress in Materials Science, Vol. 48, n2 (2003), pp.57-170.

[3] H. Fujimagari, M. Hagiwara, T. Kojima. Nuclear Engineering and Design, Vol. 195, n3 (2000), pp.289-298.

[4] A. Notomi. Fuel and Energy Abstracts, Vol. 36, n5 (1995), p.362.

[5] P.Q. La, Q.J. Xue, W. M. Liu. Surface and Coatings Technology, Vol. 113, n1-2(1999), pp.44-51.

[6] G.H. Teng, J. R. Wegner, G.J. Hurtt. Progress in Organic Coatings, vol. 42, n1-2(2001), pp.29-37.

[7] Y.G. Wang, Z.Q. Li. Materials Research Bulletion, vol. 37, n3(2002), pp.417-423.

[8] Y.G. Wang, Z.Q. Li. Journal of the Chinese Ceramic Society, Vol. 30, n6 (2002), pp.713-716.

[9] Y.G. Wang, Z.Q. Li. Chinese Journal of Applied Mechanics, Vol. 19, n3 (2002), pp.120-123.

[10] R.M. German. Metal Powder Report, vol. 53, n10 (1998), p.39.

[11] D. Rao and G.S. Upadhyaya. P/M Science &Technology Briefs, Vol. 2, n4 (2002), pp.9-13.

[12] T. Ide, T. Ando. Metallurgical Transactions A, vol. 20A January (1989), p: 17-24.
