Microstructure and Mechanical Properties of Simulated Heat Affected Zone of an Ultrafine Grain Steel Laser Weld

Abstract:

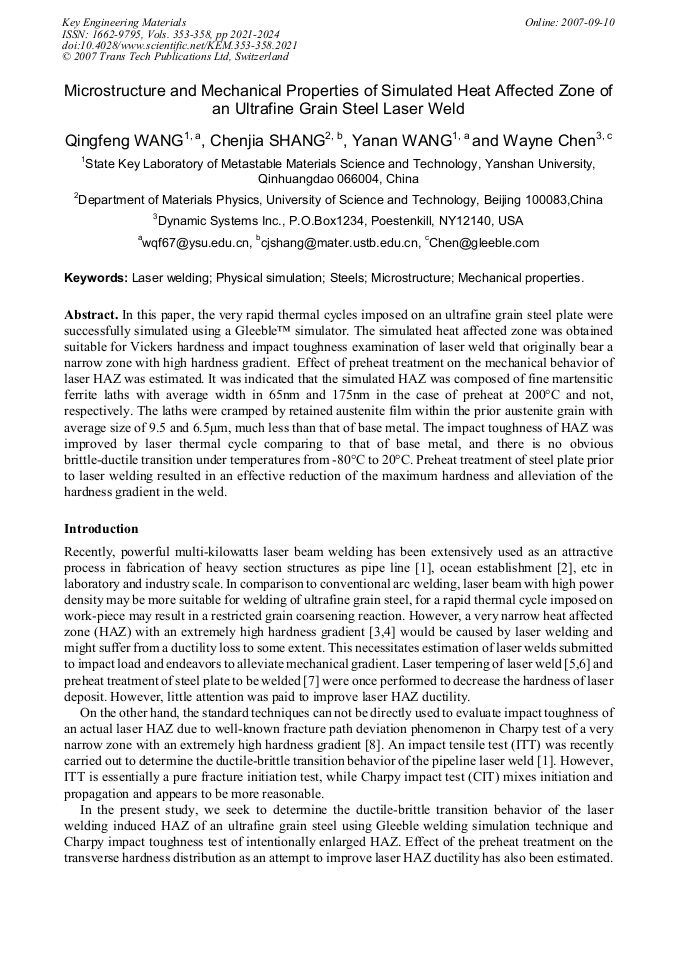

Article Preview

In this paper, the very rapid thermal cycles imposed on an ultrafine grain steel plate were successfully simulated using a Gleeble™ simulator. The simulated heat affected zone was obtained suitable for Vickers hardness and impact toughness examination of laser weld that originally bear a narrow zone with high hardness gradient. Effect of preheat treatment on the mechanical behavior of laser HAZ was estimated. It was indicated that the simulated HAZ was composed of fine martensitic ferrite laths with average width in 65nm and 175nm in the case of preheat at 200°C and not, respectively. The laths were cramped by retained austenite film within the prior austenite grain with average size of 9.5 and 6.5μm, much less than that of base metal. The impact toughness of HAZ was improved by laser thermal cycle comparing to that of base metal, and there is no obvious brittle-ductile transition under temperatures from -80°C to 20°C. Preheat treatment of steel plate prior to laser welding resulted in an effective reduction of the maximum hardness and alleviation of the hardness gradient in the weld.

Info:

Periodical:

Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie

Pages:

2021-2024

Citation:

Q. F. Wang et al., "Microstructure and Mechanical Properties of Simulated Heat Affected Zone of an Ultrafine Grain Steel Laser Weld ", Key Engineering Materials, Vols. 353-358, pp. 2021-2024, 2007

Online since:

September 2007

Export:

Price:

$38.00

[1] E. Bayraktar, D. Hugele, J. P. Jensen and D. Kaplan: J. Mater. Process. Technol. Vol. 147 (2004), p.155.

[2] J. Webber: Welding J. Vol. 1 (1989), p.68.

[3] W. M. Steen: Laser Material Processing (Spring-Verlag, London, 1991).

[4] J. K. Kristensen: Welding Rev. Int. Vol. 2 (1996), p.30.

[5] C. Chen, L. W. Tsai: U.S. Patent Pending, Series No. 07-824393.

[6] Q. F. Wang, C. J. Shang, R. D. Fu, Y. N. Wang, W. Chen: Mat. Sci. Forum 475-479 (2005), p.2717.

[7] J. N. Aoh, F. H. Kuo, Y. M. Li, H. P. Kao: The 3rd Int. Conf. on trends in Welding Research, June 1-5, 1992, Gatlingurg, TN, USA.

[8] I. Hadley: the Welding Insitute Bulletin No. 67, Sept. (2000).

[9] Q. F. Wang , C. J. Shang, D.W. Chen , J. W. Cai and W. Chen: J. Iron Steel Res. Int., in press.

[10] G. Zhen: ph. D dissertation, Univ. of Califorlia, Berkeley, Aug. 2002 Fig. 4 TEM observations of simulated HAZ of laser weld with preheat (a) and not (b) and selected area diffraction (SAD) pattern of retained austenite(c) (c) (a) 300nm (b) 300nm.
