Effect of pH Values on Conversion of Calcite Crystals into Calcium Phosphate Phases in Buffer Solutions

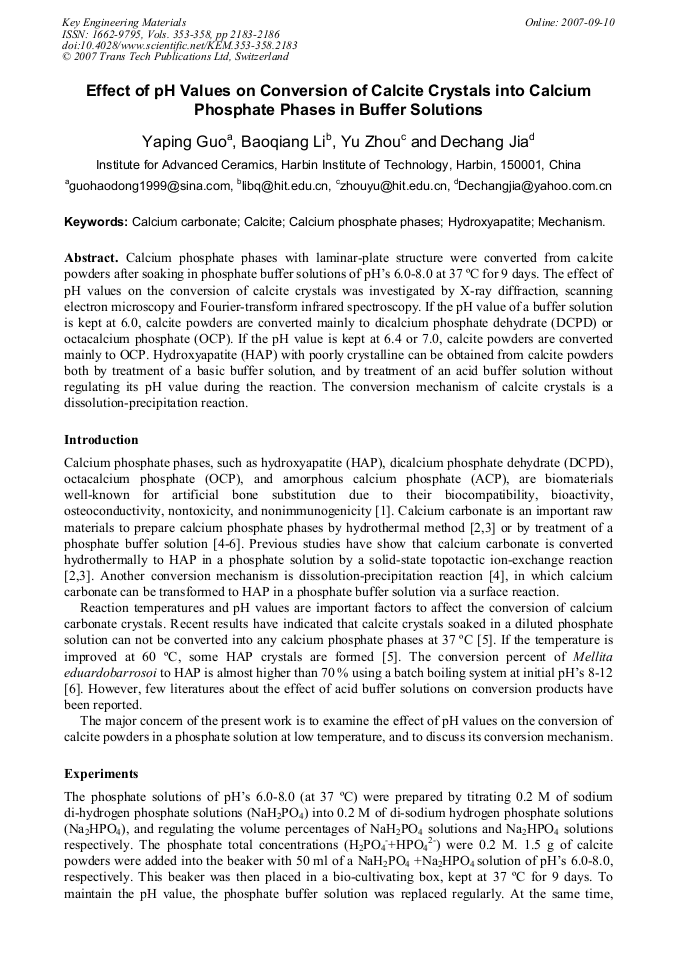

Article Preview

Calcium phosphate phases with laminar-plate structure were converted from calcite powders after soaking in phosphate buffer solutions of pH’s 6.0-8.0 at 37 °C for 9 days. The effect of pH values on the conversion of calcite crystals was investigated by X-ray diffraction, scanning electron microscopy and Fourier-transform infrared spectroscopy. If the pH value of a buffer solution is kept at 6.0, calcite powders are converted mainly to dicalcium phosphate dehydrate (DCPD) or octacalcium phosphate (OCP). If the pH value is kept at 6.4 or 7.0, calcite powders are converted mainly to OCP. Hydroxyapatite (HAP) with poorly crystalline can be obtained from calcite powders both by treatment of a basic buffer solution, and by treatment of an acid buffer solution without regulating its pH value during the reaction. The conversion mechanism of calcite crystals is a dissolution-precipitation reaction.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




Y. P. Guo et al., "Effect of pH Values on Conversion of Calcite Crystals into Calcium Phosphate Phases in Buffer Solutions", Key Engineering Materials, Vols. 353-358, pp. 2183-2186, 2007

Online since:

September 2007




[1] R. Murugan and S. Ramakrishna: Cryst Growth Des Vol. 5(2005), p.111.

[2] M. Sivakumar, T.S. Sampath Kumar, K.L. Shantha, K. Pandranga Rao: Biomaterials Vol. 17(1996), p.1709.

[3] C.M. Zaremba, D.E. Morse, S. Mann, P.K. Hansma, G.D. Stucky: Chem Mater Vol. 10(1998), p.3813.

[4] M. Ni, B.D. Ratner: Biomaterials Vol. 24 (2003), p.4323.

[5] A.C. Tas, F. Aldinger: J Mater Sci Mater Med Vol. 16 (2005), p.167.

[6] M.A. Araiza, J. Gomez-Morales, R.R. Clemente, V.M. Castano: J Mater Synth Process Vol. 7 (1999), p.211.

[7] N. Jaroslav: Cryst Res Technol Vol. 30 (1995), p.443.

[8] Q.H. Sun, Y.L. Deng: J Colloid Interface Sci Vol. 278 (2004), p.376.

[9] S. Koutsopoulos: J Biomed Mater Res Vol. 62 (2002), p.600.

[10] V.S. Joshi, M.J. Joshi: Cryst Res Technol Vol. 38 (2003), p.817 ▲, calcite ★ , HAP 20 25 30 35 40 45 50 pH 8. 0 pH 7. 4 pH 7. 0 pH 6. 4 pH 6. 0 Intensity (a. u. ) 2 theta.

Fetching data from Crossref.
This may take some time to load.
