Safety Evaluation of Pressure Piping with Weld Flaw after Long Time Service in a Water Power Plant

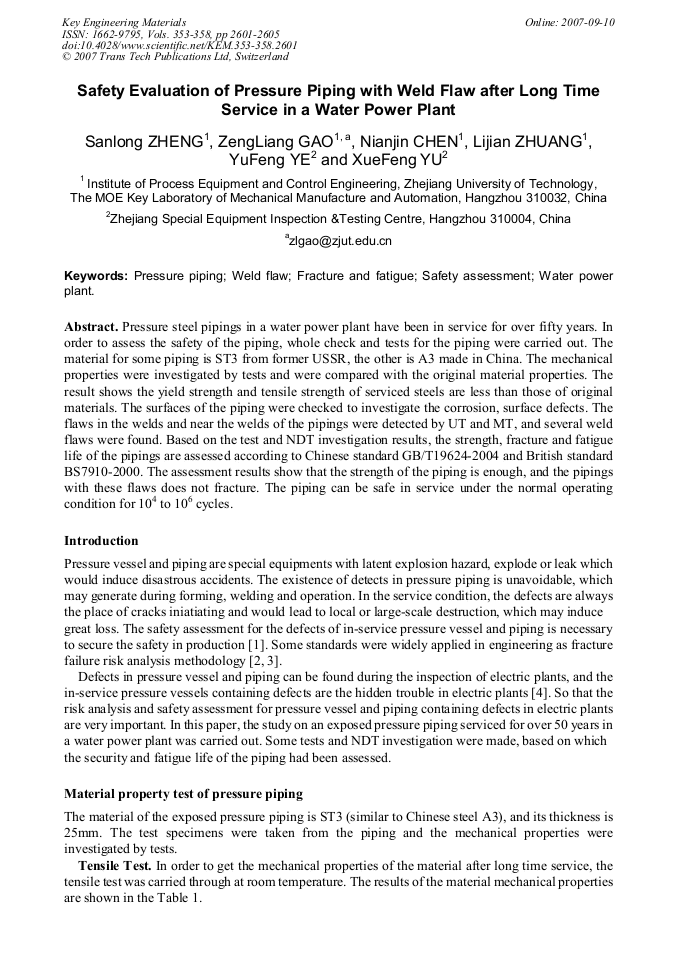

Article Preview

Pressure steel pipings in a water power plant have been in service for over fifty years. In order to assess the safety of the piping, whole check and tests for the piping were carried out. The material for some piping is ST3 from former USSR, the other is A3 made in China. The mechanical properties were investigated by tests and were compared with the original material properties. The result shows the yield strength and tensile strength of serviced steels are less than those of original materials. The surfaces of the piping were checked to investigate the corrosion, surface defects. The flaws in the welds and near the welds of the pipings were detected by UT and MT, and several weld flaws were found. Based on the test and NDT investigation results, the strength, fracture and fatigue life of the pipings are assessed according to Chinese standard GB/T19624-2004 and British standard BS7910-2000. The assessment results show that the strength of the piping is enough, and the pipings with these flaws does not fracture. The piping can be safe in service under the normal operating condition for 104 to 106 cycles.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




S. L. Zheng et al., "Safety Evaluation of Pressure Piping with Weld Flaw after Long Time Service in a Water Power Plant", Key Engineering Materials, Vols. 353-358, pp. 2601-2605, 2007

Online since:

September 2007




[1] Zhong Qun-peng, Li Pei-ning, Li Xue-ren, Chen Gang, Pipeline Technique and Equipment, No. 1, Feb, 2006, pp.1-5.

[2] F. M. Burdekin: Engineering Facture Mechanics, Vol. 69(2002), pp.1119-1127.

[3] Y. C. Lin, Y. J. Xie, X. H. Wang, H. Luo: Pressure Vessels and Piping Vol. 81(2004), pp.13-20.

[4] Jiang Yunjian, Wang Qing, Wang Zhiyong: Hebei Electric Power, Vol. 25(1) (2006). pp.1-3.

[5] Handbook of Chinese and Foreign Metal Materials Most In Used, Shanxi standardization information institute, (1984).
