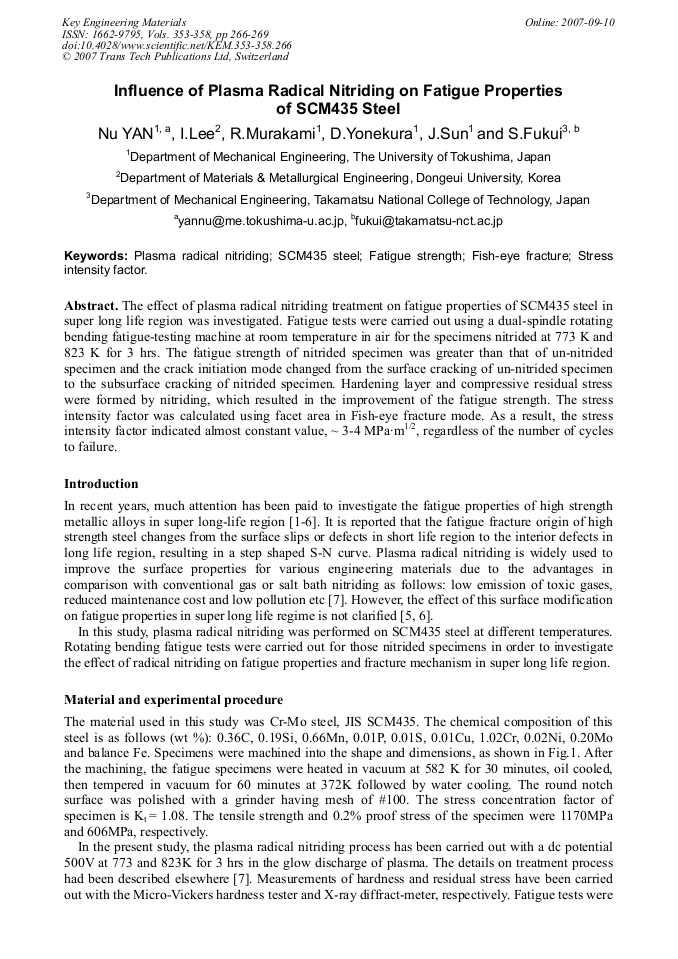

Influence of Plasma Radical Nitriding on Fatigue Properties of SCM435 Steel


Article Preview

The effect of plasma radical nitriding treatment on fatigue properties of SCM435 steel in super long life region was investigated. Fatigue tests were carried out using a dual-spindle rotating bending fatigue-testing machine at room temperature in air for the specimens nitrided at 773 K and 823 K for 3 hrs. The fatigue strength of nitrided specimen was greater than that of un-nitrided specimen and the crack initiation mode changed from the surface cracking of un-nitrided specimen to the subsurface cracking of nitrided specimen. Hardening layer and compressive residual stress were formed by nitriding, which resulted in the improvement of the fatigue strength. The stress intensity factor was calculated using facet area in Fish-eye fracture mode. As a result, the stress intensity factor indicated almost constant value, ~ 3-4 MPa·m1/2, regardless of the number of cycles to failure.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




N. Yan et al., "Influence of Plasma Radical Nitriding on Fatigue Properties of SCM435 Steel", Key Engineering Materials, Vols. 353-358, pp. 266-269, 2007

Online since:

September 2007




[1] Q.Y. Wang, J. Berard, C. Bathias et al: Fatigue Fract. Eng. Mater. Strut., Vol. 22 (1999), p.667.

[2] N. Yan, N. Kawagoishi, Q.Y. Wang et al: Key Eng. Mater., Vols. 243-244(2003), p.321.

[3] R. Murakami, D. Yonekura and T. Murayama: Int. J. Modern. Phys. B, Vol. 17(2003), p.1697.

[4] Xishu Wang, B. Wu and Q.Y. Wang, Cement & Concrete Research, Vol. 35(2005), p.1385.

[5] K. Shiozawa and L. Lu: Fatigue Fract. Eng. Mater. Struct. Vol. 25 (2002), p.813.

[6] N. Kawagoishi, k. Morino, H. Fukuda, E. Kondo and N. Yan: J. of Soc. Mater. Sci of Japan, Vol. 52(2003), p.1331.

[7] Insup Lee: Surf &Coat. Tech., Vol. 188 (2004), p.669.

[8] T. Sakai, M. Takeda, K. Shiozawa, et al: J. Soc. Mater. Sci of Japan, Vol. 49 (2000), p.779.

[9] Y. Murakami: Metal Faigue: Effect of Small defects and Nonmetallic Inclusions. Yokendo, Tokyo, (1993).

[10] R. Murakami, D. Yonekura and Z. Ni: JSME Int. Journ., Vol. 45, No. 4(2002), p.517.
