A Proposed Thickness Distribution of Elbow Resisting Ratcheting

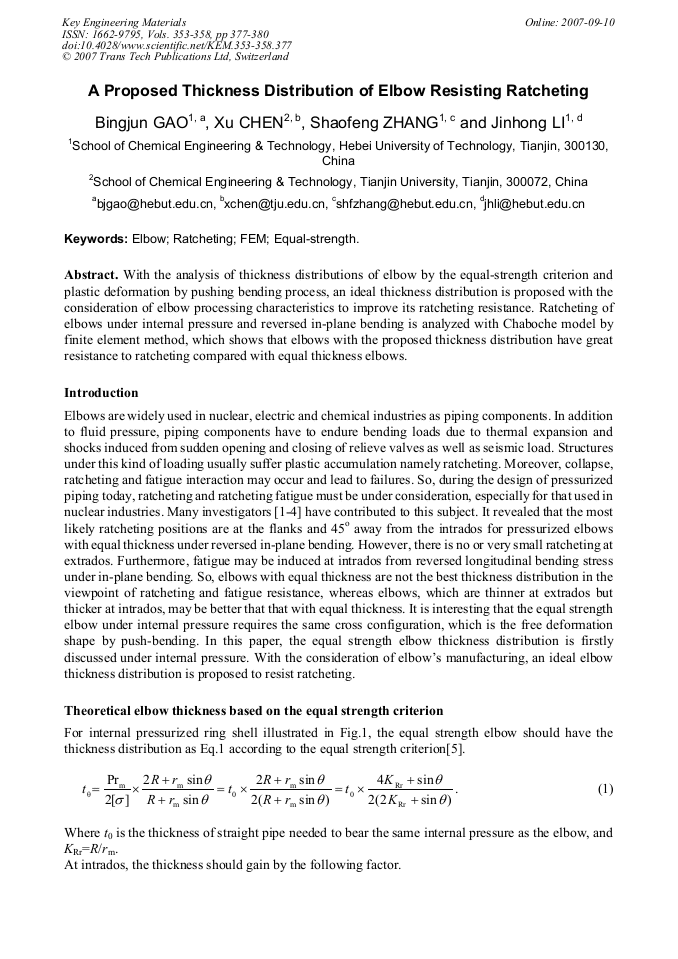

Article Preview

With the analysis of thickness distributions of elbow by the equal-strength criterion and plastic deformation by pushing bending process, an ideal thickness distribution is proposed with the consideration of elbow processing characteristics to improve its ratcheting resistance. Ratcheting of elbows under internal pressure and reversed in-plane bending is analyzed with Chaboche model by finite element method, which shows that elbows with the proposed thickness distribution have great resistance to ratcheting compared with equal thickness elbows.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




B. J. Gao et al., "A Proposed Thickness Distribution of Elbow Resisting Ratcheting ", Key Engineering Materials, Vols. 353-358, pp. 377-380, 2007

Online since:

September 2007




[1] K. Yahiaoui and D.G. Moffat: Inter. J. Pressure Vessels and Piping, Vol. 68 (1996), p.73.

[2] H. Kobayashi and T. Fujiwaka: ASME PVP, Vol. 345 (1997), p.223.

[3] I. Nakamura, A. Otani and M. Shiratori: ASME PVP, Vol. 486 (2) (2004), p.173.

[4] Dj Boussaa, V.K. Dang and H.T. Tang: J. Pressure Vessel Technology, Vol. 117 (4) (1995): p.357.

[5] B-J GAO: Ph.D. Dissertation, Tianjin University (2005), Tianjin, China.

[6] P-L YANG: Chinese Journal of boiler technology (in Chinese), Vol. 31 (6) (2000), p.16.
