Compressive Properties of Quartzite Microcrystallite Glass Ceramics


Article Preview

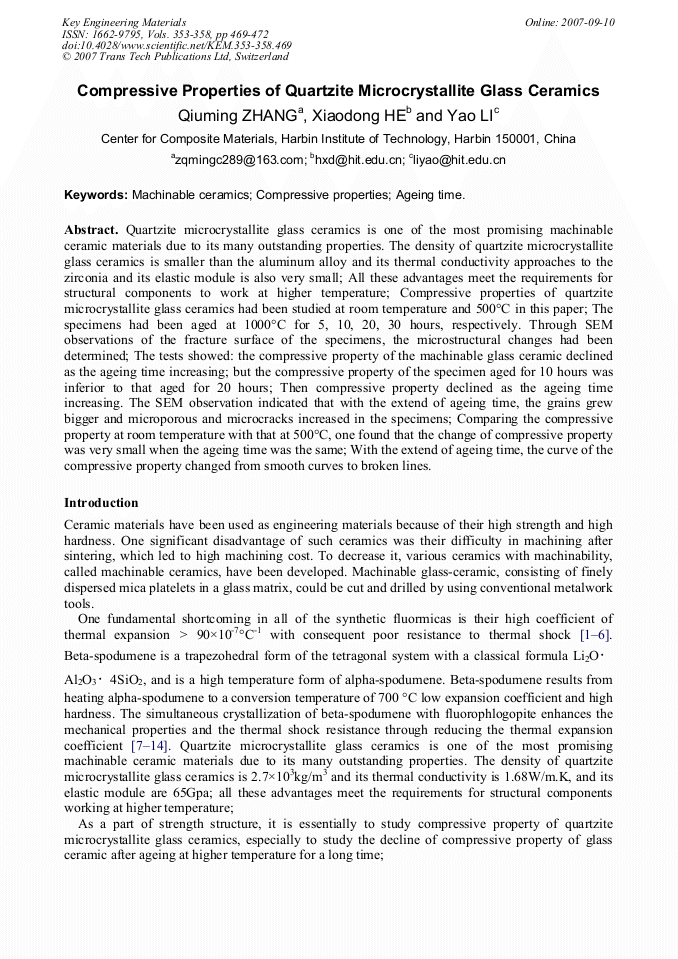

Quartzite microcrystallite glass ceramics is one of the most promising machinable ceramic materials due to its many outstanding properties. The density of quartzite microcrystallite glass ceramics is smaller than the aluminum alloy and its thermal conductivity approaches to the zirconia and its elastic module is also very small; All these advantages meet the requirements for structural components to work at higher temperature; Compressive properties of quartzite microcrystallite glass ceramics had been studied at room temperature and 500°C in this paper; The specimens had been aged at 1000°C for 5, 10, 20, 30 hours, respectively. Through SEM observations of the fracture surface of the specimens, the microstructural changes had been determined; The tests showed: the compressive property of the machinable glass ceramic declined as the ageing time increasing; but the compressive property of the specimen aged for 10 hours was inferior to that aged for 20 hours; Then compressive property declined as the ageing time increasing. The SEM observation indicated that with the extend of ageing time, the grains grew bigger and microporous and microcracks increased in the specimens; Comparing the compressive property at room temperature with that at 500°C, one found that the change of compressive property was very small when the ageing time was the same; With the extend of ageing time, the curve of the compressive property changed from smooth curves to broken lines.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




Q. M. Zhang et al., "Compressive Properties of Quartzite Microcrystallite Glass Ceramics", Key Engineering Materials, Vols. 353-358, pp. 469-472, 2007

Online since:

September 2007




[1] B. Yu, K. Liang, S. Gu: Ceram. Int. Vol. 29 (6) (2003), pp.695-698.

[2] M. Goswami, A. Sarkar, T. Mirza, V. Shrikhande, K. Sangeeta, G. Kothiyal: Ceram. Int. Vol. 28 (6) (2002), pp.585-592.

[3] D. Ibrahim, E. El-Meliegy: Br. Ceram. Trans. Vol. 100 (6) (2001), pp.260-264.

[4] E.A. Mustafa: Ceram. Int. Vol. 27 (1) (2001), pp.9-14.

[5] T. Hoche, S. Habelitz, I. Khodos: J. Crystal Growth Vol. 192 (1) (1998).

[6] C. Xiaofeng, L. Hench, D. Greenspan, Z. Jipin, Z. Xiaokai: Ceram. Int. Vol. 24 (5) (1998), pp.401-410.

[7] M. Wang, S. Yang, S. Wen, N. Wu: Mater. Chem. Phys. Vol. 76 (2) (2002), pp.162-170.

[8] A. El-Shennawi, E. Hamzawy, G. Khater, A. Omar: Ceram. Int. Vol. 27 (7) (2001), pp.725-730.


[9] P. Riello, P. Canton, N. Comelato, S. Polizzi, M. Verita, G. Fagherazzi, H. Hofmeister, S. Hopfe: J. Non-Cryst. Solids Vol. 288 (1) (2001), pp.127-139.


[10] L. Arnault, M. Gerland, A. Rivière: J. Mater. Sci. Vol. 35 (9) (2000) 2331-2345.

[11] G. Helsch, J. Günster, G. Frischat, K. Helming, B. Roling, S. Murugavel: Phys. Chem. Glasses Vol. 44 (1) (2003), pp.19-25.

[12] Low, E. Mathews, T. Garrod, D. Zhou, D. Phillips, X. Pillai: J. Mater. Sci. Vol. 32 (14) (1997), pp.3807-3812.


[13] A. Nordmann, Y. Cheng: J. Mater. Sci. Vol. 32 (1) (1997), pp.83-89.

[14] Y. Sung: Ceram. Int. Vol. 23 (5) (1997), pp.401-407.
