Microstructural Evolution during Tensile Creep of a Single-Crystal Nickel-Base Superalloy

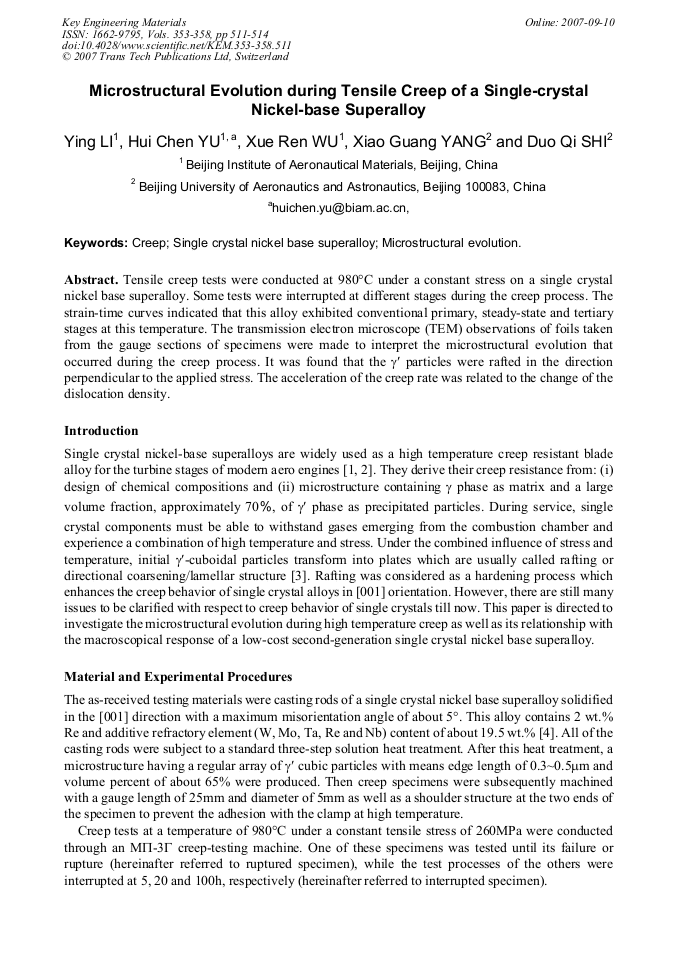

Article Preview

Tensile creep tests were conducted at 980°C under a constant stress on a single crystal nickel base superalloy. Some tests were interrupted at different stages during the creep process. The strain-time curves indicated that this alloy exhibited conventional primary, steady-state and tertiary stages at this temperature. The transmission electron microscope (TEM) observations of foils taken from the gauge sections of specimens were made to interpret the microstructural evolution that occurred during the creep process. It was found that the γ′ particles were rafted in the direction perpendicular to the applied stress. The acceleration of the creep rate was related to the change of the dislocation density.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




Y. Li et al., "Microstructural Evolution during Tensile Creep of a Single-Crystal Nickel-Base Superalloy ", Key Engineering Materials, Vols. 353-358, pp. 511-514, 2007

Online since:

September 2007




[1] J.J. Jackson, M.J. Donachie and R.J. Henrich: Metall. Trans. Vol 8A (1977), p.1615.

[2] P.J. Henderson and M. Mclean: Acta Metall. Vol. 31 (1983), p.1203.

[3] P. Caron and T. Khan: Mater. Sci. Eng. Vol. 61 (1983), p.173.

[4] J.R. Li, Z.G. Zhong, D.Z. Tang and S.Z. Liu: Proceedings of 9 th International Symposium on Superalloys, Champion, Pennsylvania, (2000), p.777.

[5] R.A. MacKay and R.D. Meier: Metall. Trans. Vol. 13A (1982), p.747.

[6] N. Matan, D.D. Cox, P. Carter, M.A. Rist, C.M.F. Rae, R.C. Reed: Acta Mater. Vol. 47 (1999), p.1549 c a b 200mm 200mm 200mm.
