Thermal Shock Properties of Ternary-Boride-Based Cladding Material

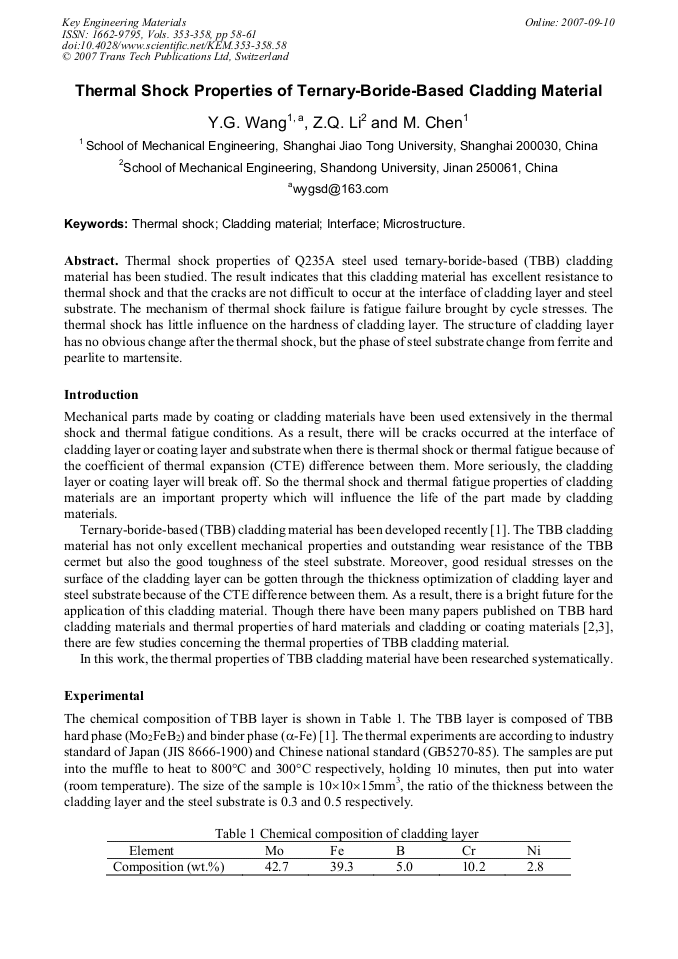

Article Preview

Thermal shock properties of Q235A steel used ternary-boride-based (TBB) cladding material has been studied. The result indicates that this cladding material has excellent resistance to thermal shock and that the cracks are not difficult to occur at the interface of cladding layer and steel substrate. The mechanism of thermal shock failure is fatigue failure brought by cycle stresses. The thermal shock has little influence on the hardness of cladding layer. The structure of cladding layer has no obvious change after the thermal shock, but the phase of steel substrate change from ferrite and pearlite to martensite.



Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie




Y.G. Wang et al., "Thermal Shock Properties of Ternary-Boride-Based Cladding Material", Key Engineering Materials, Vols. 353-358, pp. 58-61, 2007

Online since:

September 2007




[1] Y.G. Wang, Z. Q: Li. Material Research Bulletin, Vol. 37, n3 (1996), pp.1-7.

[2] D. Rao, G.S. Upadhyaya: P/M Science &Technology Briefs,Vol. 2, n4 (2000), pp.9-13.

[3] K.A. Azam, L.J. Claude: Journal of the European Ceramic Society, Vol. 17, n15-16 (1997), pp: 1885-1890.

[4] R. A. Miller, C. E. Lowell: Thin Solid Film, Vol. 95 (1982), pp.256-273.

[5] S.H. Lee, D. Kwon: Thin Solid Films, Vol. 341, n1-2 (1999), pp.136-139.

[6] X.H. Xiang, Z. Y Liu and S.Z. Li, Z.D. Yin, J.C. Zhu: The Chinese Journal of Nonferrous Metals, Vol. 9, n3 (1999), pp.520-525.

[7] B.L. Wang, J.C. Han, S.Y. Du. Acta Materiae Compositae Sinica, Vol. 16, n1 (1999), pp.125-130.

[8] Y.G. Wang, Z.Q. Li: Chinese Journal of Applied Mechanics, Vol. 19, n3 (2002), pp: 120-123 Fig. 4. SEM photograph of structure before thermal shock Cladding layer Q235A Fig. 5. SEM photograph of structure after thermal shock Cladding layer Q235A.
