Deformation and Annealing Textures of Extruded and Cold Rolled Pure Ni Single Crystals of Cube Orientation

Abstract:

Article Preview

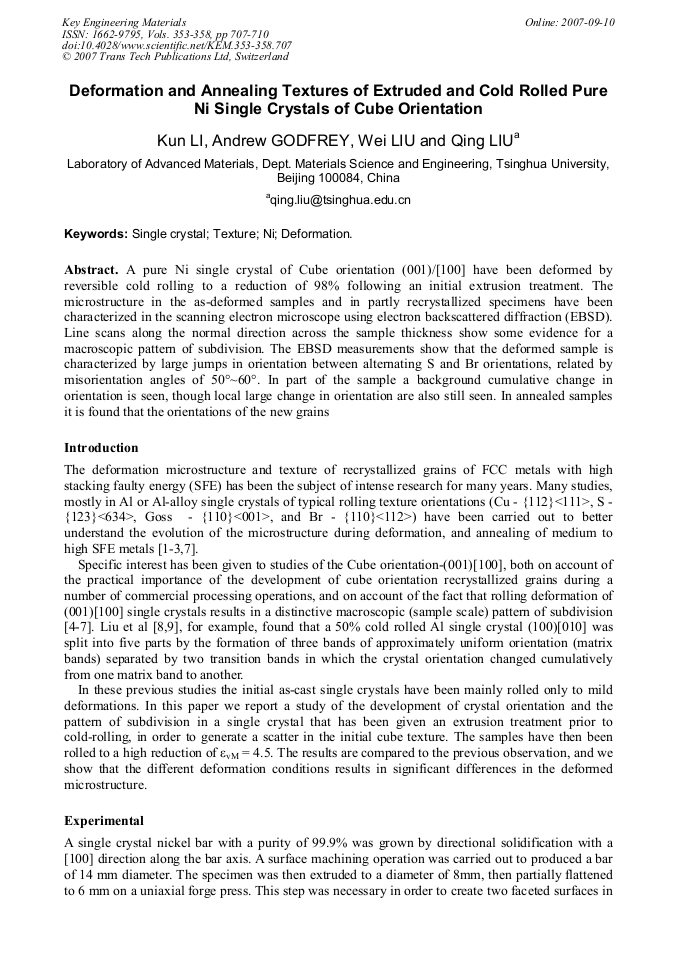

A pure Ni single crystal of Cube orientation (001)/[100] have been deformed by reversible cold rolling to a reduction of 98% following an initial extrusion treatment. The microstructure in the as-deformed samples and in partly recrystallized specimens have been characterized in the scanning electron microscope using electron backscattered diffraction (EBSD). Line scans along the normal direction across the sample thickness show some evidence for a macroscopic pattern of subdivision. The EBSD measurements show that the deformed sample is characterized by large jumps in orientation between alternating S and Br orientations, related by misorientation angles of 50°~60°. In part of the sample a background cumulative change in orientation is seen, though local large change in orientation are also still seen. In annealed samples it is found that the orientations of the new grains

Info:

Periodical:

Key Engineering Materials (Volumes 353-358)

Edited by:

Yu Zhou, Shan-Tung Tu and Xishan Xie

Pages:

707-710

DOI:

10.4028/www.scientific.net/KEM.353-358.707

Citation:

K. Li et al., "Deformation and Annealing Textures of Extruded and Cold Rolled Pure Ni Single Crystals of Cube Orientation", Key Engineering Materials, Vols. 353-358, pp. 707-710, 2007

Online since:

September 2007

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
