Thermal Study in Diamond Grinding of Zirconia

Abstract:

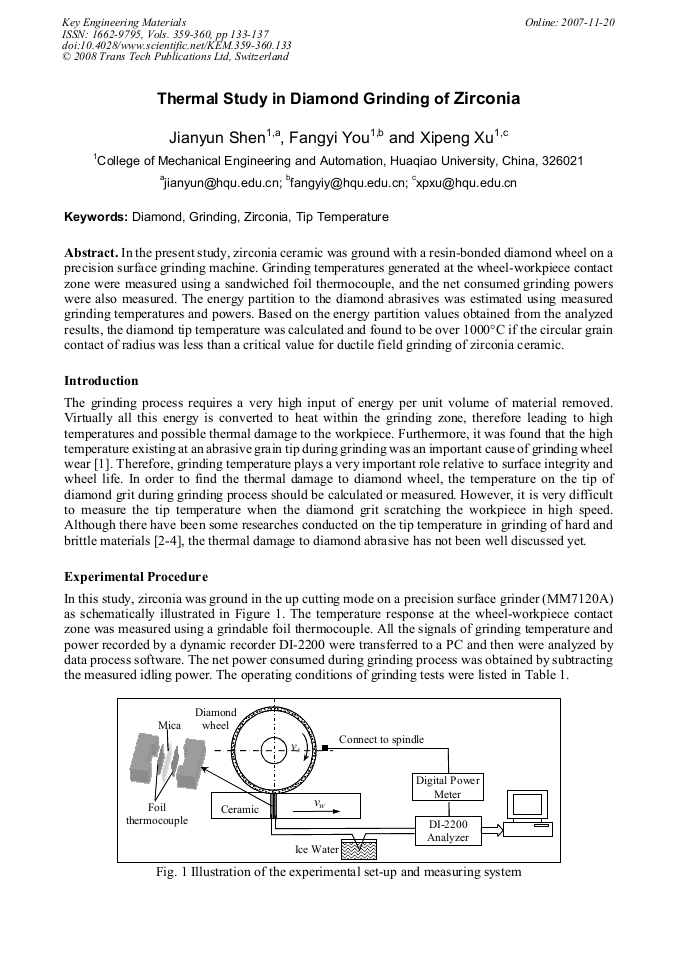

Article Preview

In the present study, zirconia ceramic was ground with a resin-bonded diamond wheel on a precision surface grinding machine. Grinding temperatures generated at the wheel-workpiece contact zone were measured using a sandwiched foil thermocouple, and the net consumed grinding powers were also measured. The energy partition to the diamond abrasives was estimated using measured grinding temperatures and powers. Based on the energy partition values obtained from the analyzed results, the diamond tip temperature was calculated and found to be over 1000°C if the circular grain contact of radius was less than a critical value for ductile field grinding of zirconia ceramic.

Info:

Periodical:

Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang

Pages:

133-137

DOI:

10.4028/www.scientific.net/KEM.359-360.133

Citation:

J. Y. Shen et al., "Thermal Study in Diamond Grinding of Zirconia", Key Engineering Materials, Vols. 359-360, pp. 133-137, 2008

Online since:

November 2007

Export:

Price:

$35.00

[1] S. Malkin: Theory and Application of Machining with Abrasives (New York, Reprinted by SME, 1989).

[2] T.N. Farris, S. Chandrasekar: J. Mater. Sci, Vol. 25 (1990), pp.4047-4053.

[3] B. Zhu, C. Guo, J.E. Sunderland, et al: Ann. CIRP, Vol. 44 (1995), No. 1, pp.267-272.

[4] T. Ueda, K. Yamada, T. Sugita: ASME, J. Eng. Ind., Vol. 114 (1992), No. 3, pp.317-322.

[5] J.Y. Shen, X.P. Xu: Proceeding of 7 th International Conference on Progress of Machining Technology, 2004, pp.248-253.

[6] J.C. Jaeger: Proc. Roy. Soc. New South Wales, Vol. 76 (1942), pp.203-224.

[7] X.P. Xu: Tribol. Int., Vol. 34 (2001), pp.419-426.

[8] S. Malkin, T.W. Hwang: Ann. CIRP, Vol. 45 (1996), No. 2, pp.569-580.

[9] T.G. Bifano, T.A. Dow, R.O. Scattergood: ASME, J. Eng. Ind., Vol. 113 (1991), No. 2, pp.184-189 Wear of diamond Pull-out × 500 × 500.
