Lapping Process of Diamond Cutting Tool by Molecular Dynamics Simulating

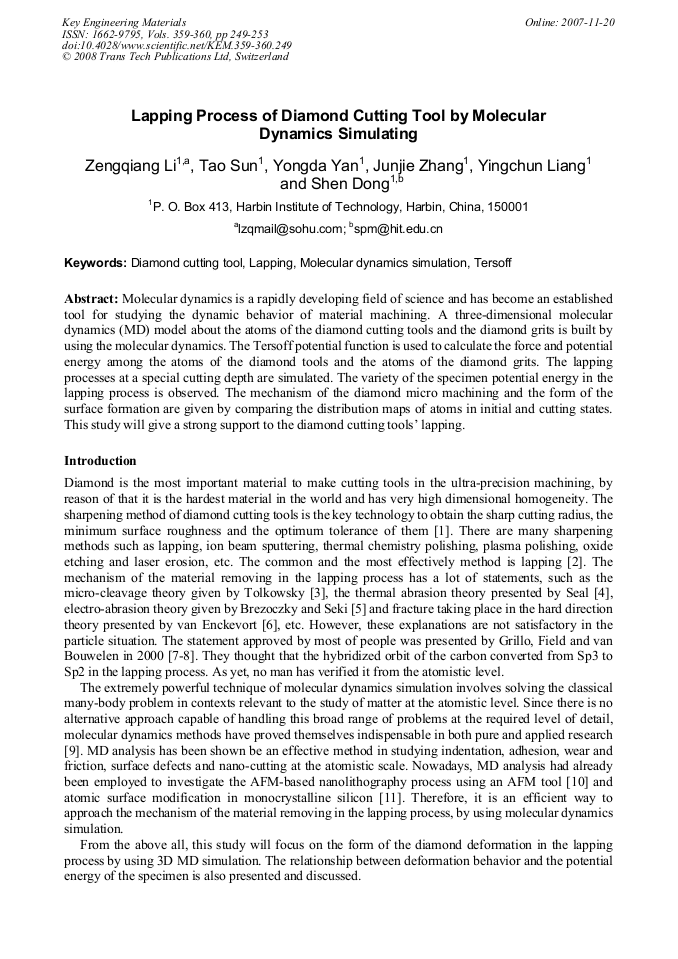

Article Preview

Molecular dynamics is a rapidly developing field of science and has become an established tool for studying the dynamic behavior of material machining. A three-dimensional molecular dynamics (MD) model about the atoms of the diamond cutting tools and the diamond grits is built by using the molecular dynamics. The Tersoff potential function is used to calculate the force and potential energy among the atoms of the diamond tools and the atoms of the diamond grits. The lapping processes at a special cutting depth are simulated. The variety of the specimen potential energy in the lapping process is observed. The mechanism of the diamond micro machining and the form of the surface formation are given by comparing the distribution maps of atoms in initial and cutting states. This study will give a strong support to the diamond cutting tools’ lapping.



Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang




Z. Q. Li et al., "Lapping Process of Diamond Cutting Tool by Molecular Dynamics Simulating", Key Engineering Materials, Vols. 359-360, pp. 249-253, 2008

Online since:

November 2007




[1] Z.Q. Li and T. Sun: Tool Engineering, Vol. 38 (2004) No. 9, pp.105-107. (In Chinese).

[2] K. Uegami, K. Tamamura and K.K. Jang: Journal of Mechanical Working Technology, Vol. 17 (1988) No. 8, pp.147-155.

[3] S.E. Grillo, J.E. Field: Wear, Vol. 211 (1997), pp.30-34.

[4] F.P. Bowden, D. Tabor: Physical Properties of Diamond (Oxford: Clarendon Press, England 1965), pp.184-220.

[5] B. Brezoczky, H. Seki: Langmuir, Vol. 6 (1990) No. 6, pp.1141-1148.

[6] M. Couto, W.J. P van Enckevort, M. Seal and et al: Applied Surface Science, Vol. 62 (1992) No. 4, pp.263-268.

[7] F.M. van Bouwelen: Mechanically Induced Degradation of Diamond (Ph.D. Dissertation, University of Cambridge, England 1996).

[8] S.E. Grillo, J.E. Field and F.M. van Bouwelen: Journal of Physics D: Applied Physics, Vol. 33 (2000), pp.985-990.

[9] D.C. Rapaport: The Art of Molecular Dynamics Simulation (Cambridge University Press, England 2004).

[10] Y.D. Yan, T. Sun and S. Dong: Applied Surface Science, Vol. 252 (2006), pp.7523-7531.

[11] I. Zarudi, W.C.D. Cheong and L.C. Zhang: Nanotechnology, Vol. 15 (2004), pp.104-107.

[12] Z.Q. Li, T. Sun, L.Q. Shi and S. Dong: Key Eng Mater, Vol. 304-305 (2006), pp.104-108.

[13] J. Tersoff: Phys Rev, Vol. 61 (1988) No. 25, pp.2879-2882.

[14] K. Maekawa, A. Itoh: Wear, Vol. 188 (1995), p.115.

[15] http: /lammps. sandia. gov, J Comp Phys.

[16] W. Humphrey, A. Dalke and K. Schulten: J. Molec. Graphics, Vol. 33 (1996) No. 14.
